– E-Series Wall Mounted air conditioner
Wall Mounted Inverter Heat Pump AC
– E-Series Wall Mounted air conditioner
Wall Mounted Inverter Heat Pump AC
Efficient and sleek design with flexible features that provide comfort all year round. Hitachi E-series split system wall mounted air conditioners offer a contemporary solution for all applications.
Hitachi air conditioners can operate in outside temperatures down to as low as -15˚C and as high as 46˚C ensuring you stay comfortable when you need it

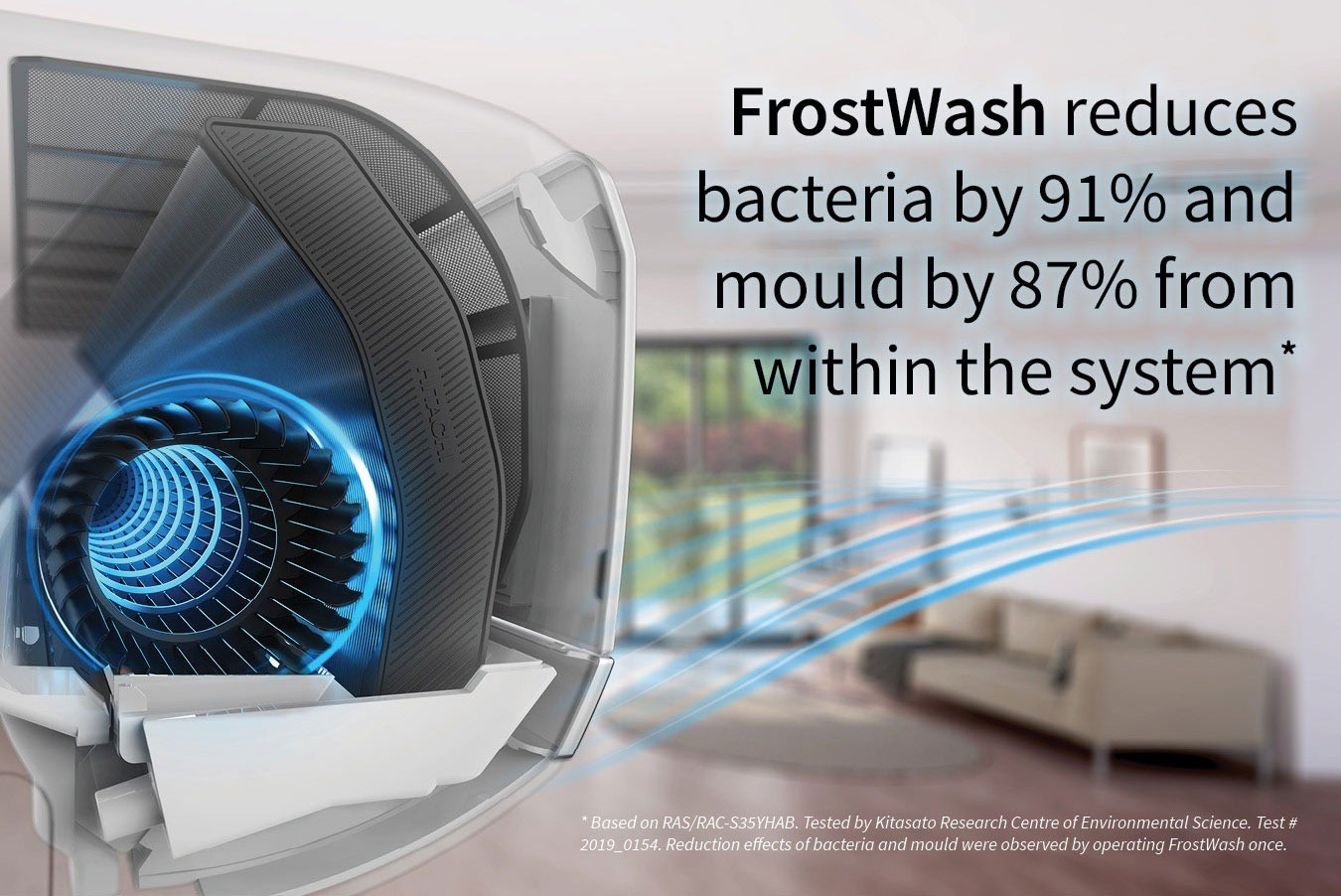

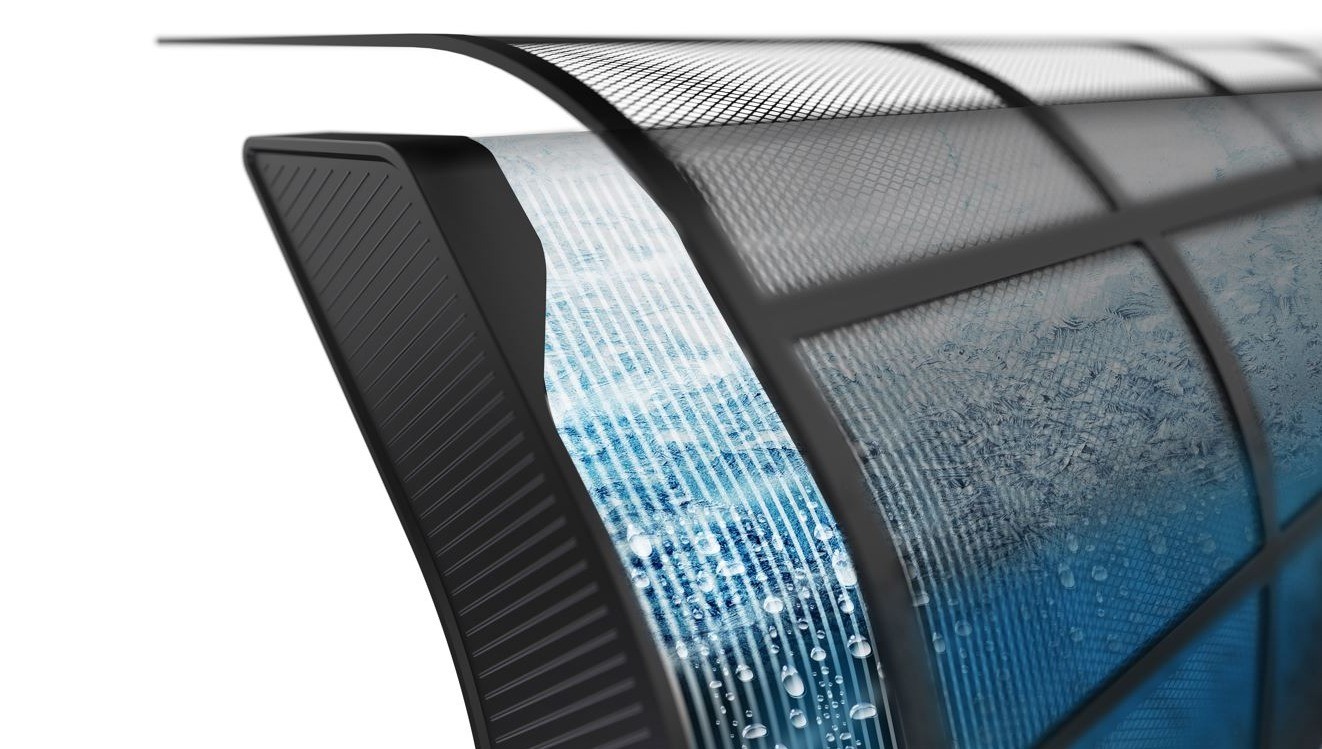

– Incorporating the power of FrostWash technology
The new Hitachi 'E' Series range of split systems offers many innovative features, from enhanced energy efficiency to airflow control and ultra-quiet operation.
Because air is always travelling across the surface of the heat exchanger, dust mould and bacteria can accumulate, leading to reduced performance and perceivable odours. Keeping the heat exchanger clean is the key to better quality air. The new 'E' series incorporates manual initiation of our FrostWash self cleaning technology.
FrostWash addresses an issue that had long stumped the air conditioning industry - how to effectively and efficiently clean the inside of room air conditioning units.
Because air is always travelling across the surface of the heat exchanger, dust mould and bacteria can accumulate, leading to reduced performance and perceivable odours. Keeping the heat exchanger clean is the key to better quality air. The new 'E' series incorporates manual initiation of our FrostWash self cleaning technology.
FrostWash addresses an issue that had long stumped the air conditioning industry - how to effectively and efficiently clean the inside of room air conditioning units.

– Rapid Cooling or Heating for all seasons
Powerful Mode will run your system at maximum output for 20-minutes, projecting airflow further and faster to cool or heat a room rapidly.
Hitachi air conditioners can operate in outside temperatures down to as low as -15˚C and as high as 46˚C, ensuring you stay comfortable when you need it.
Hitachi air conditioners can operate in outside temperatures down to as low as -15˚C and as high as 46˚C, ensuring you stay comfortable when you need it.

– Fresher Air with Hitachi Air Conditioning

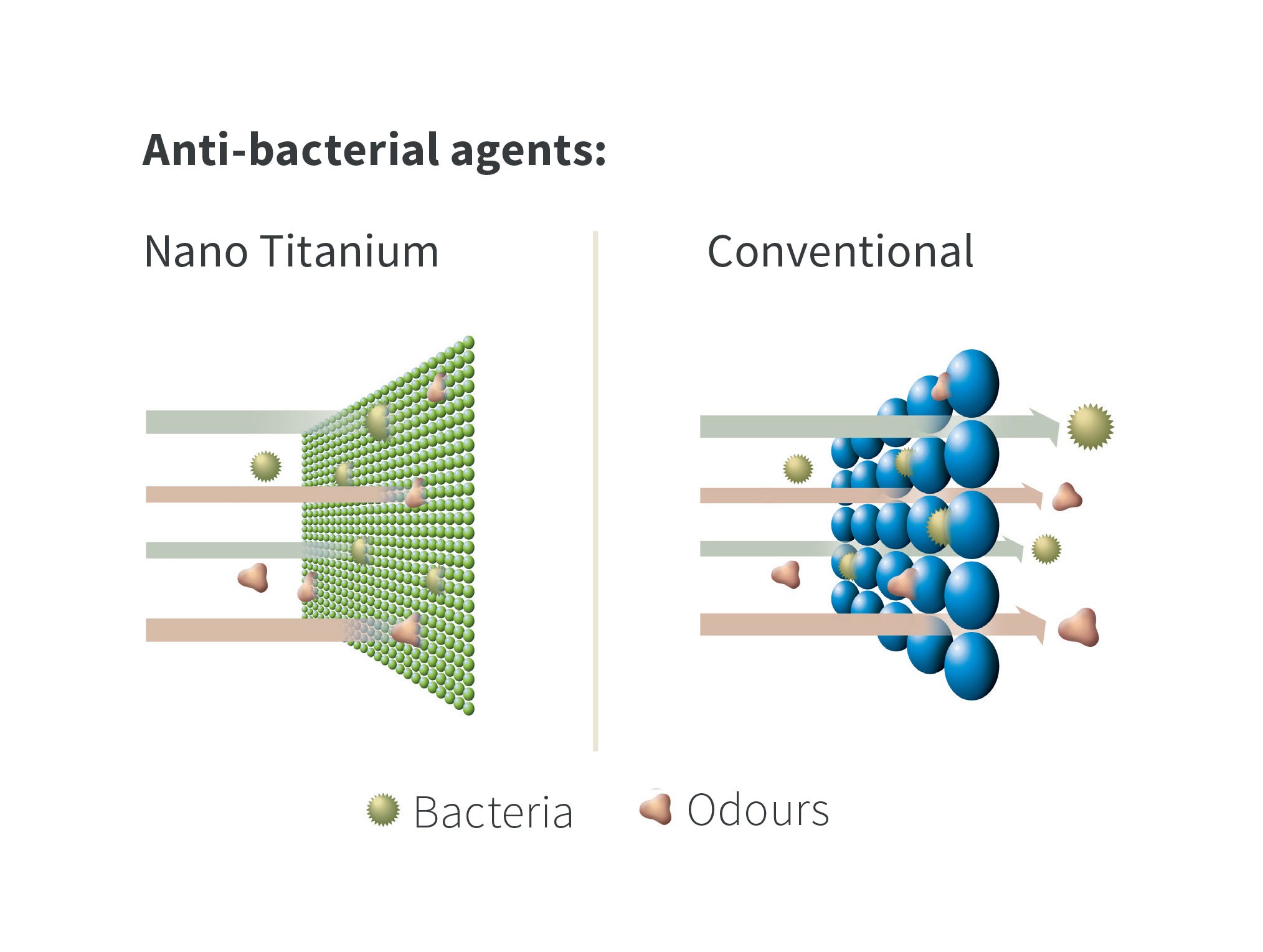

Hitachi's Wasabi Nano Titanium filter uses particles of Wasabi root to remove up to 99% of the most common mites, bacteria and allergens, as well as bad odours.
Your Hitachi air conditioning filter is packed with a hybrid coating of Nano Titanium and wasabi solution which provides a powerful antibacterial, anti-mould, anti-allergen and deodorising effect, reducing bacteria and allergen levels.
Your Hitachi air conditioning filter is packed with a hybrid coating of Nano Titanium and wasabi solution which provides a powerful antibacterial, anti-mould, anti-allergen and deodorising effect, reducing bacteria and allergen levels.

– Additional Energy Saving Modes

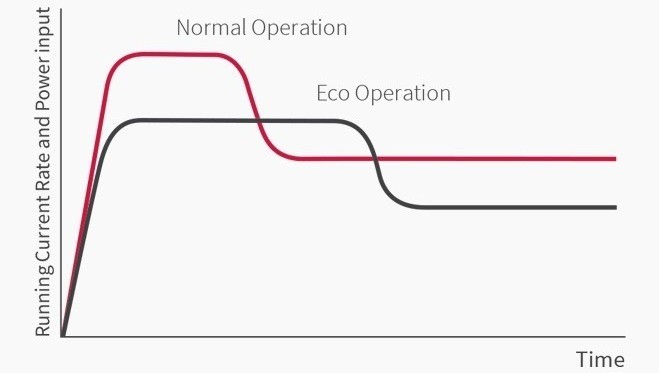

At the push of a button, Eco Mode efficiently delivers a slightly reduced temperature to help keep heat pump energy consumption to a minimum, enabling you to achieve significant energy savings.
Sleep mode gently adapts fan speed and temperature to provide draft-free, energy-efficient air-conditioned comfort while you sleep.
Hitachi E-Series air conditioners have Ultra-Low Standby Power to further increase energy efficiency.
Sleep mode gently adapts fan speed and temperature to provide draft-free, energy-efficient air-conditioned comfort while you sleep.
Hitachi E-Series air conditioners have Ultra-Low Standby Power to further increase energy efficiency.

– Advanced Wireless Controller Options

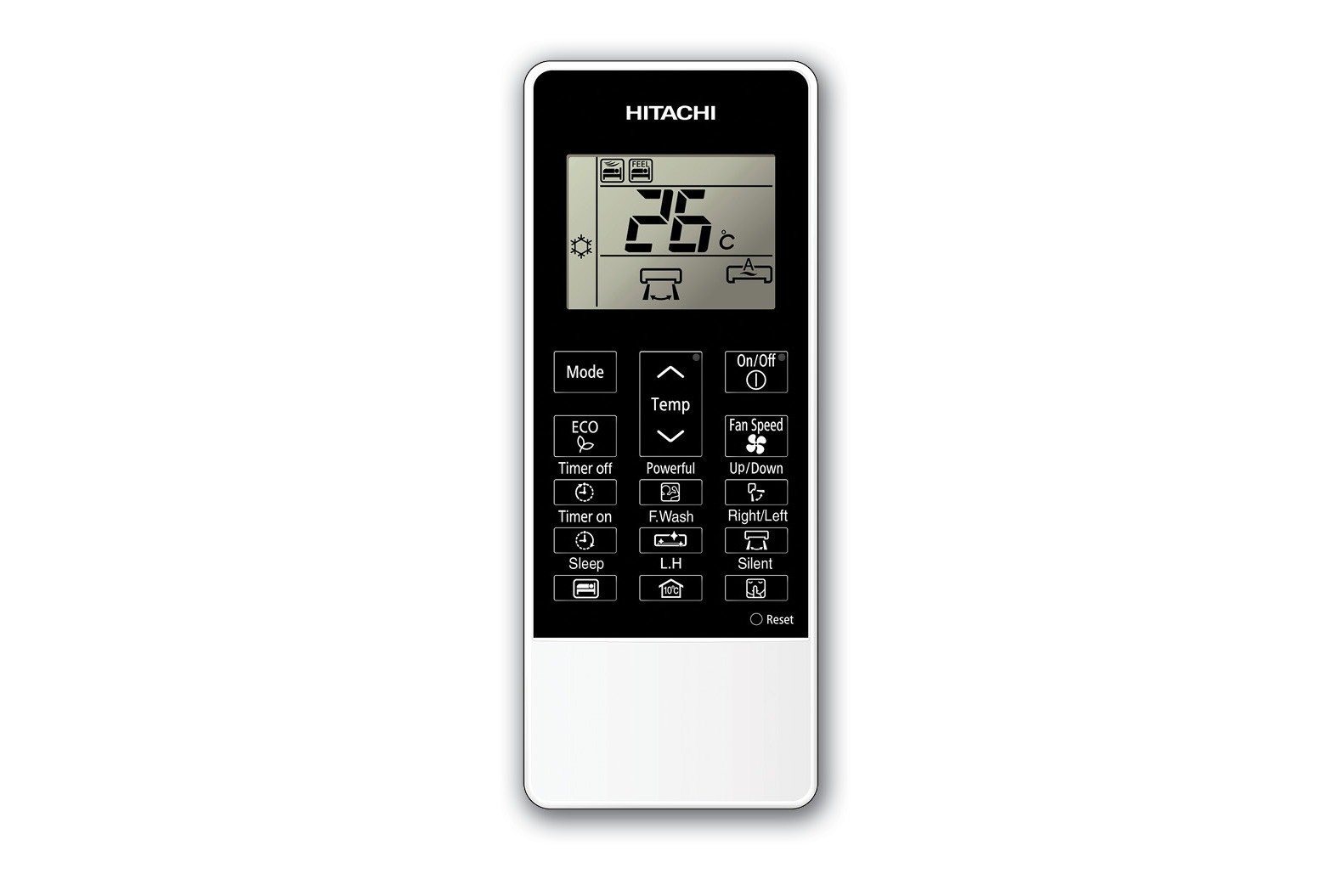

For the ultimate climate control, an optional premium wireless remote or wired wall controller will give you added functionality beyond the standard wireless remote.
Both feature an advanced 7-day timer and power consumption tracking - giving you complete control over your schedule and air con power usage.
▪ 12-hour timer
▪ Eco Mode
▪ Manual FrostWash operation
▪ Sleep mode
▪ Powerful mode
▪ Louvre position
▪ Fan speed
▪ Mode setting

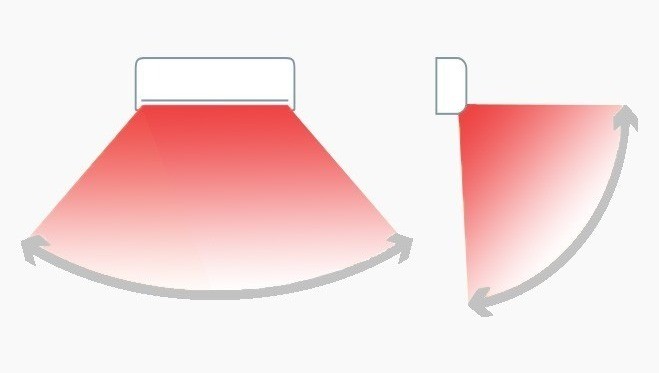

– 4-Way Directional Airflow
The louvres on the wall-mounted air conditioner move up and down, and left to right.
This action disperses air over a much wider range to warm or cool the room efficiently and evenly. Hitachi Louvres can be set in any airflow direction to precisely control your comfort.
This action disperses air over a much wider range to warm or cool the room efficiently and evenly. Hitachi Louvres can be set in any airflow direction to precisely control your comfort.

– Whisper Quiet Air Conditioners
With the newly improved seamless fan control system, Hitachi's air conditioners assure extremely quiet and smooth fan speed changes for even more comfort.
At 22dBA, our quietest noise level is more serene than a soft whisper.*
(*RAS-E25YHAB sleep mode)
At 22dBA, our quietest noise level is more serene than a soft whisper.*
(*RAS-E25YHAB sleep mode)

– Wifi Control for your Hitachi wallmounted system

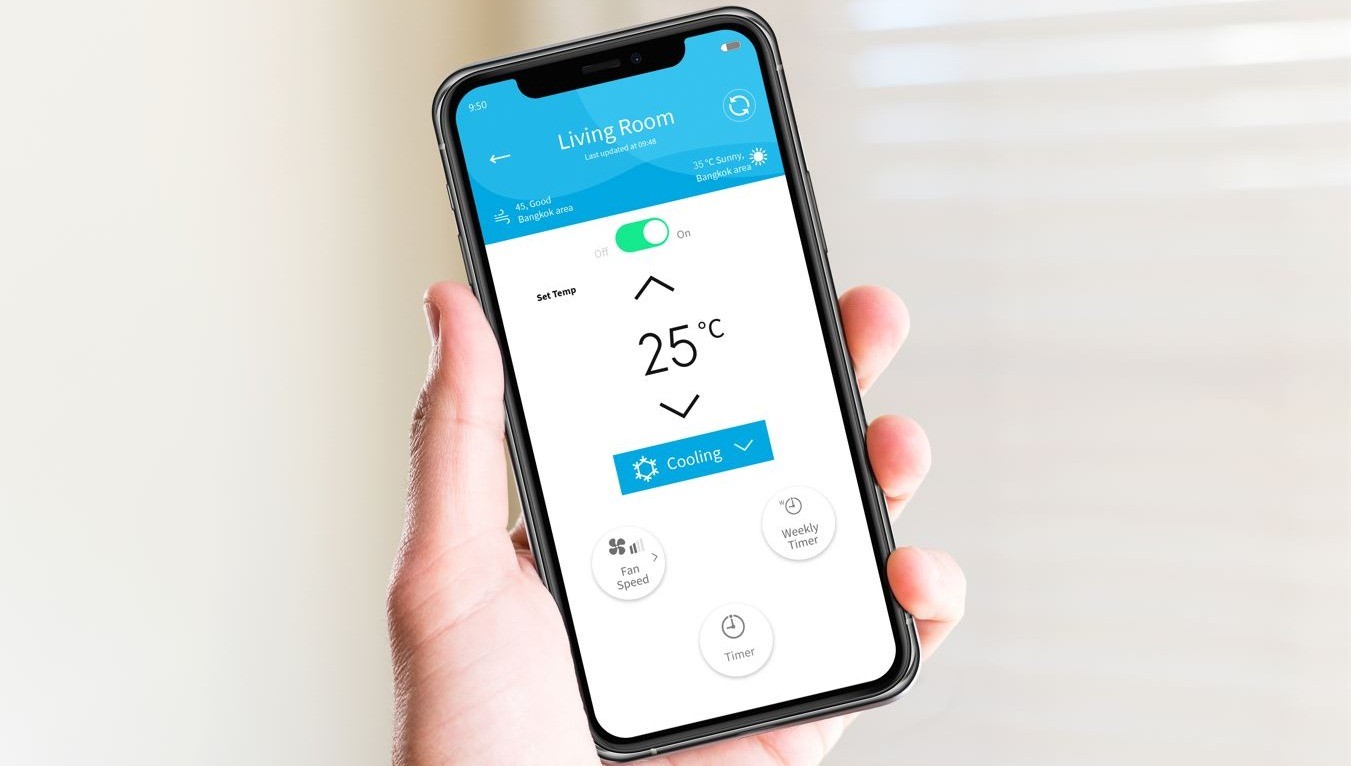

Installing the optional airCloud Go wifi controller module will allow you to control your wall-mounted system using a smartphone or tablet.
Operate your system from home or remotely, adjusting temperature, fan speed and setting custom schedules. airCloud is also compatible with Google Alexa and Amazon Echo smart speakers, so you can operate your AC using voice commands.
Further information on the airCloud Go can be found here.
Operate your system from home or remotely, adjusting temperature, fan speed and setting custom schedules. airCloud is also compatible with Google Alexa and Amazon Echo smart speakers, so you can operate your AC using voice commands.
Further information on the airCloud Go can be found here.

– E-series is included in the VIC Upgrades Program
This product is included in our VIC Home Heating & Cooling Upgrades Program that you can learn more about here.

– Peace of Mind.
Backed by one of Australia's largest manufacturers, Temperzone -- you will always have peace of mind with a five-year warranty on parts and labour.
– Model
Model
RAS/RAC-E25YHAB | RAS/RAC-E35YHAB | RAS/RAC-E50YHAB | RAS/RAC-E60YHAB | RAS/RAC-E70YHAB | RAS/RAC-E80YHAB |
---|

Capacity | Nominal Cooling | kW |
Nominal Heating | kW |
Capacity (Range) | Cooling | kW |
Heating | kW |
Airflow | High Cooling | l/sec |
High Heating | l/sec |
Energy Efficiency | EER | |
COP | ||
Star Rating Cooling | ||
Star Rating Heating |
Noise Levels (dB(A)) Cooling | Indoor Unit | Hi/Med/Low/Sleep |
Outdoor Unit | Cooling/Heating | |
Sound Power |
Dimensions (mm) | Indoor Unit | (WxHxD) |
Outdoor Unit | (WxHxD) |
Weights (kg) | Indoor / Outdoor |
Operating Range | Outdoor Op. Temp. | Cooling |
Outdoor Op. Temp. | Heating |
Refrigerant Type |
Pipe Sizes (mm) | ||
Refrig Pipe charge | ||
Min / Max Pipe Lgth / Lift (m) |
Power | Power Supply | |
Running Current (Amps) | Cooling / Heating | |
Power Supply To | ||
Interconnecting Wire | ||
2.5 |
3.2 |
1.0 - 3.2 |
1.0 - 4.5 |
142 |
158 |
4.55 |
4.71 |
4 |
4.5 |
40 / 33 / 24 / 22 |
46 / 47 |
60 |
780 x 280 x 230 |
750 x 548 x 288 |
8.5 / 34 |
-10°C to 46°C |
-15°C to 24°C |
R32 |
Ø6.35 / Ø9.52 |
20 |
3 / 20 / 10 |
230 - 240 Volt / 50 Hz / 1 Phase |
1.04-5.86/1.04-5.68 |
Outdoor Unit |
3 Core + E |
3.5 |
4 |
1.0 - 4.0 |
1.0 - 5.0 |
189 |
217 |
3.85 |
4.3 |
2.5 |
3.5 |
43 / 36 / 26 / 25 |
47 / 48 |
61 |
780 x 280 x 230 |
750 x 548 x 288 |
8.5 / 34 |
-10°C to 46°C |
-15°C to 24°C |
R32 |
Ø6.35 / Ø9.52 |
20 |
3 / 20 / 10 |
230 - 240 Volt / 50 Hz / 1 Phase |
1.04-6.63/1.04-7.73 |
Outdoor Unit |
3 Core + E |
5 |
5.3 |
1.0 - 5.5 |
1.2 - 6.5 |
210 |
238 |
3.62 |
3.9 |
2 |
3.5 |
47 / 39 / 33 / 26 |
50 / 52 |
63 |
780 x 280 x 230 |
792 x 600 x 299 |
8.5 / 39.5 |
-10°C to 46°C |
-15°C to 24°C |
R32 |
Ø6.35 / Ø12.7 |
30 |
3 / 30 / 10 |
230 - 240 Volt / 50 Hz / 1 Phase |
2.10-11.19 / 2.27-9.67 |
Outdoor Unit |
3 Core + E |
6 |
7 |
1.2 - 6.5 |
1.2 - 8.0 |
250 |
250 |
3.33 |
3.83 |
2 |
3 |
49 / 42 / 33 / 30 |
50 / 53 |
63 |
900 x 300 x 230 |
850 x 750 x 298 |
11.5 / 50 |
-10°C to 46°C |
-15°C to 24°C |
R32 |
Ø6.35 / Ø12.7 |
30 |
3 / 30 / 20 |
230 - 240 Volt / 50 Hz / 1 Phase |
2.31-8.55/1.67-9.66 |
Outdoor Unit |
3 Core + E |
7 |
8 |
1.5 - 8.0 |
1.5 - 8.5 |
320 |
330 |
3.41 |
4.04 |
2 |
3.5 |
49 / 44 / 39 / 33 |
51 / 53 |
64 |
1100 x 300 x 260 |
850 x 800 x 298 |
15 / 52 |
-10°C to 46°C |
-15°C to 24°C |
R32 |
Ø6.35 / Ø15.88 |
30 |
3 / 30 / 20 |
230 - 240 Volt / 50 Hz / 1 Phase |
2.50-9.79 / 2.19-10.72 |
Outdoor Unit |
3 Core + E |
8 |
9 |
1.5 - 8.5 |
1.5 - 9.5 |
340 |
350 |
3.27 |
3.8 |
2 |
3 |
50 / 44 / 39 / 33 |
52 / 54 |
65 |
1100 x 300 x 260 |
850 x 800 x 298 |
15 / 52 |
-10°C to 46°C |
-15°C to 24°C |
R32 |
Ø6.35 / Ø15.88 |
30 |
3 / 30 / 20 |
230 - 240 Volt / 50 Hz / 1 Phase |
2.50-9.79 / 2.19-10.72 |
Outdoor Unit |
3 Core + E |
