RAD & RPI Split Ducted air conditioner

Ducted Inverter Heat Pump AC

RAD & RPI Split Ducted air conditioner_header

RAD & RPI Split Ducted air conditioner

Ducted Inverter Heat Pump AC

Hitachi split ducted air conditioners offer DC inverter control and the ability to achieve superior operating efficiency, ranging in capacity from 5kW to 16kW nominal cooling capacity.

Key Features

1. Space Saving Design With a height of 270mm the RAD-E50, 60 and 70 can be installed in almost any application including homes, apartments or commercial buildings.

2. Easy Installation & Maintenance Separable design unit for easier installation in limited roof space (RPI-3.0-6.0FSN250).
RAD & RPI Split Ducted air conditioner_1

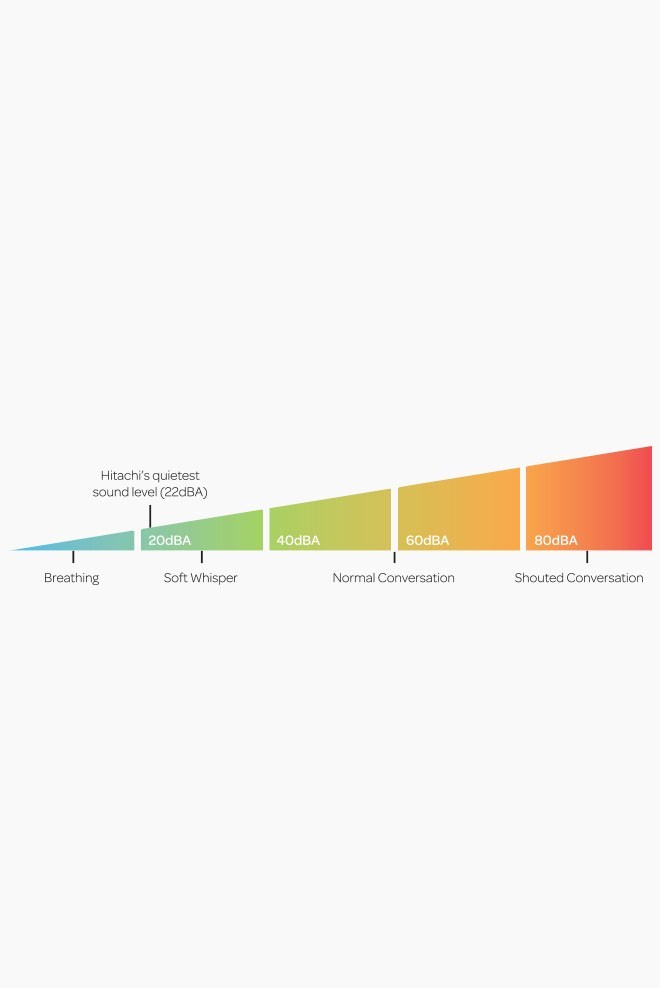

Whisper Quiet

Ducted air conditioning systems are one of the quietest types of air conditioning with installed sound levels quieter than an equivalent capacity wall mounted air conditioners.
RAD & RPI Split Ducted air conditioner_2

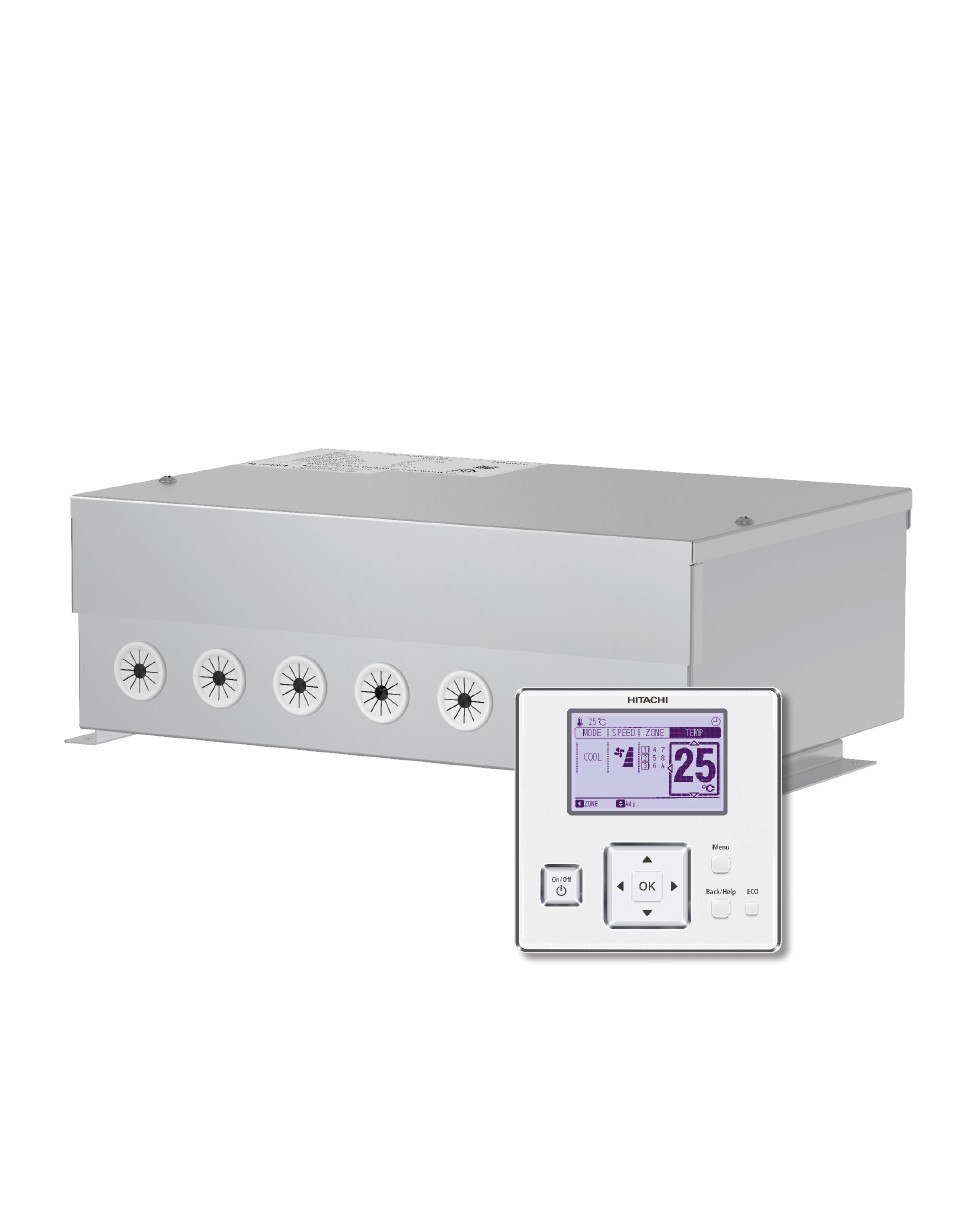

Complete your system with Hitachi's new Zone Controller

Upgrade your system to include the Hitachi Ducted Zone Controller, offering maximum comfort, energy efficiency and control over your RPI Ducted system.

RAD & RPI Split Ducted air conditioner_3

Discreet Concealed Installation

The indoor ducted unit is designed to fit into ceiling spaces where it supplies conditioned air through ducting to required rooms.

Ducted systems provide concealed ceiling air conditioning that doesn’t occupy valuable wall space and air diffusers can be positioned to fit around lighting and other fixtures.
RAD & RPI Split Ducted air conditioner_4

Energy Saving Features

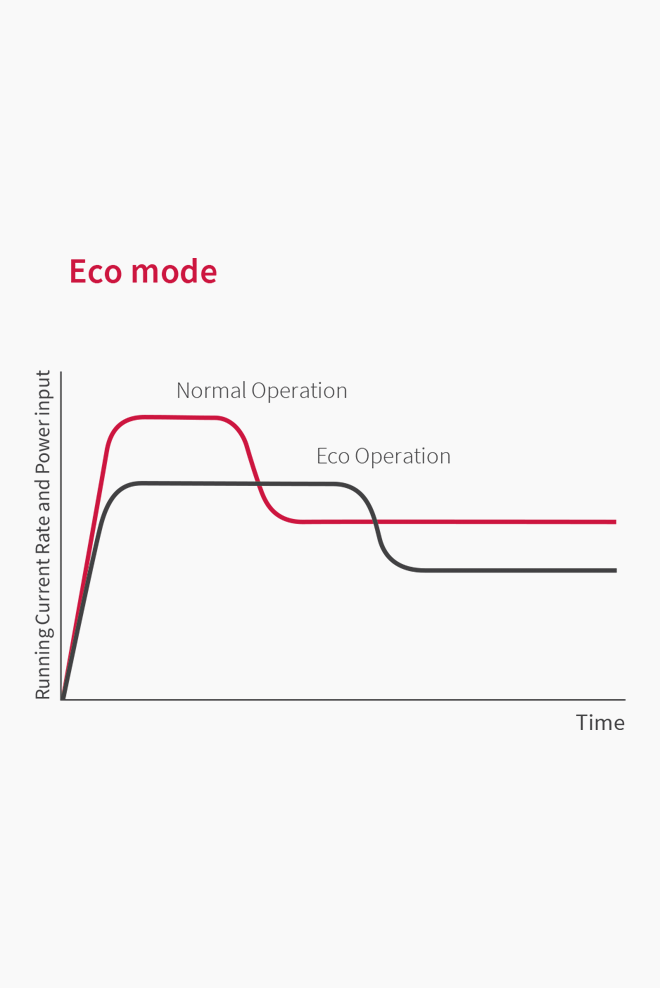

At the push of a button, Eco Mode efficiently delivers a slightly reduced temperature to help keep energy consumption to a minimum. Hitachi RAD Series have ultra low standby power to further increase energy efficiency.

Multi-Room Installation

RAD & RPI Split Ducted air conditioner_5
RAD & RPI Split Ducted air conditioner_6

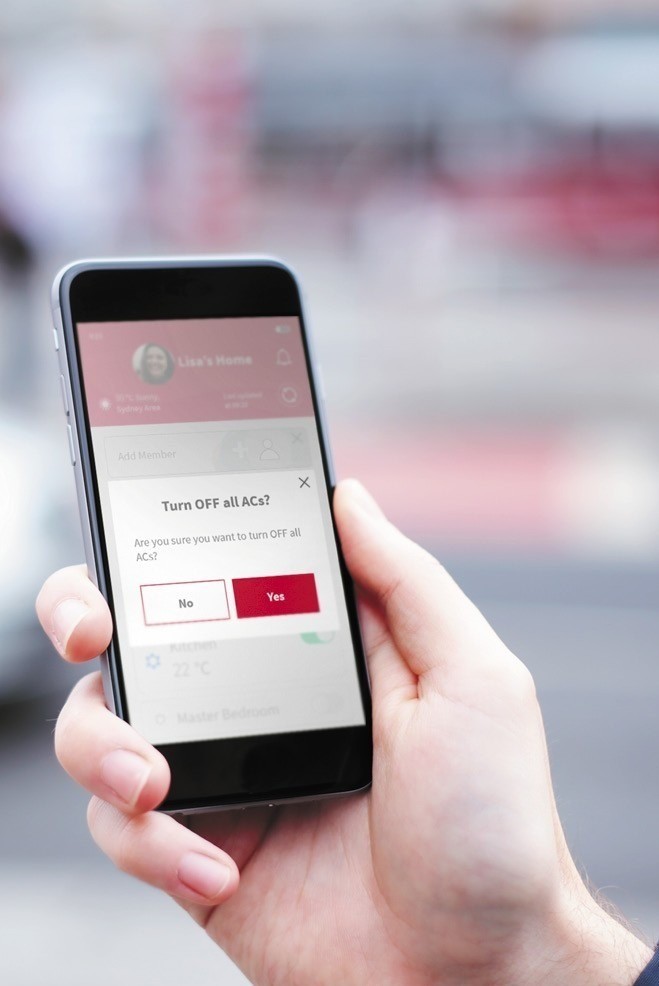

Wifi Control for your Hitachi air conditioner*

Installing the optional airCloud Go wifi controller will give you the ability to control your air conditioner from your smartphone via the airCloud Go app.

Operate your Hitachi air conditioner when you're away from home, adjust the temperature and fan speed and set custom schedules.


( * Applicable to RAD Ducted Systems only )
RAD & RPI Split Ducted air conditioner_7

SPX-WKT2 Wired Controller

Applicable to indoor models RAD-E50, 60, 70:
- Room temp indication
- 24/7 time schedule
- Eco mode
- Sleep timer
- Backlight display
RAD & RPI Split Ducted air conditioner_8

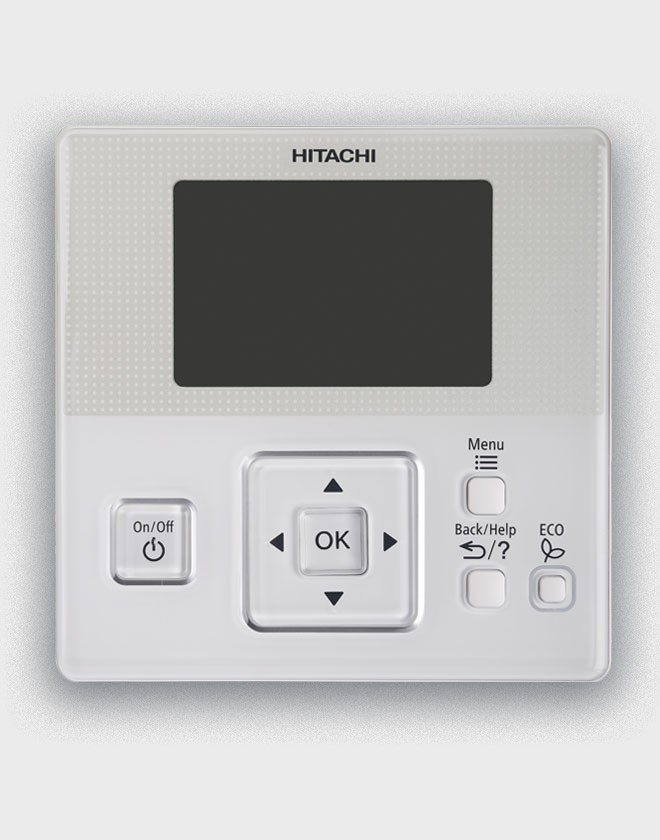

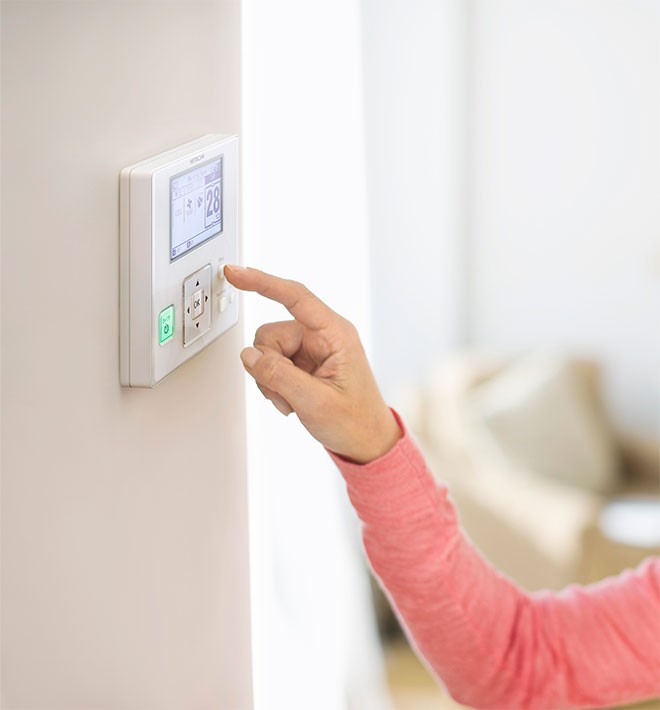

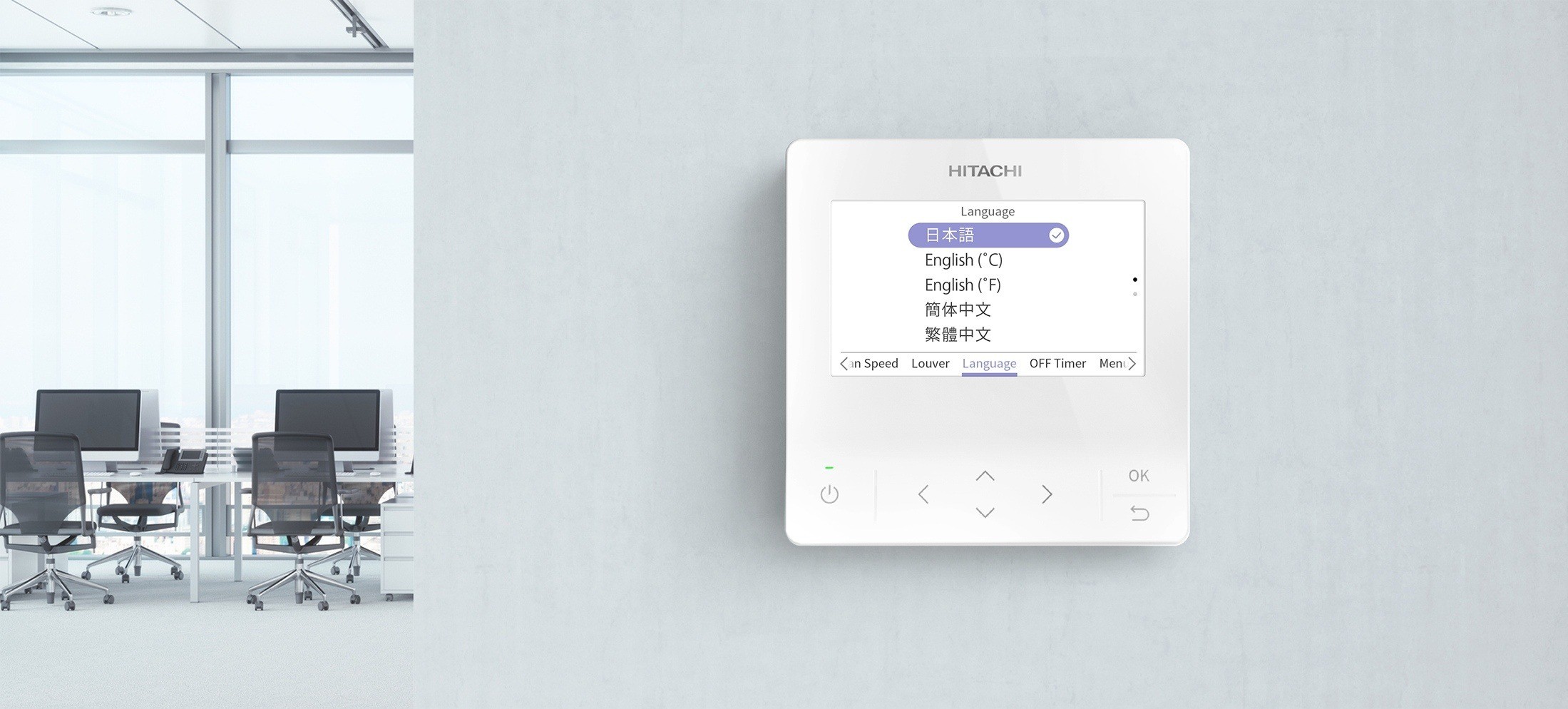

Advanced Wired Controller (PC-ARF1)

Included with the following indoor models: RPI-4.0, 5.0, 6.0 & 7.0

The Advanced Wired Controller provides additional functions to monitor your ducted air conditioner and ensure it is running efficiently:

► 24/7 Weekly Time Scheduler
► Eco-mode
► Room temperature indication
► Sleep timer
► Power consumption display
► Backlight display

RAD & RPI Split Ducted air conditioner_9

Peace of Mind.

With a five year warranty and backed by one of Australia's largest manufacturers, Temperzone Australia -- you will always have peace of mind.

Model

Model

RAD/RAC-E50YHA RAD/RAC-E60YHA RAD/RAC-E70YHA RPI4.0FSN/RAS-4HVNC1 RPI5.0FSN/RAS-5HVNC1 RPI6.0FSN/RAS-6HVNC1 RPI7.0FSN/RAS-7HVRNM2
Capacity Nominal Cooling kW
Nominal Heating kW
Capacity (Range) Cooling kW
Heating kW
Airflow (Hi/Med/Low/S low) l/sec
External static Pa
Energy Efficiency EER / AEER
COP / ACOP
Noise Levels (dB(A)) Cooling Indoor Unit Hi/Med/Low/S low
Outdoor Unit Cooling/Heat/ Night
Dimensions (mm) Indoor Unit (HxWxD)
Outdoor Unit (HxWxD)
Indoor unit seperable
Weights (kg) Indoor / Outdoor
Air Spigot/ Drain Dimensions Supply Air (W X H mm)
Return Air (W X H mm)
Drain Dimension
Operating Range Outdoor Op. Temp. Cooling
Outdoor Op. Temp. Heating
Refrigerant Type
Pipe Sizes (mm)
Refrig Pipe charge
Max Pipe Lgth / (Lift (m) Above, Below)
Power Power Supply
OD unit max current
5.0
6.0
1.2-5.8
1.2-6.8
300/250/200/170
50~160
3.82 / 3.80
3.90 / 3.87
39 / 35 / 32 / 29
50 / 33 / -
270 x 900 x 720
750 x 850 x 298
N
35 / 50
805 X 222
815 X 221
Ø32
-15°C to 46°C
-15°C to 24°C
R32
6.35 / 12.70 (1/4" / 1/2")
30
30 / 20
230 - 240 Volt / 50 Hz / 1 Phase
12
6.0
7.0
1.2-6.5
1.2-8.0
300/250/200/170
50~160
3.54 / 3.52
3.71 / 3.69
39 / 35 / 32 / 29
50 / 33 / -
270 x 900 x 720
750 x 850 x 298
N
35 / 50
805 X 222
815 X 221
Ø32
-15°C to 46°C
-15°C to 24°C
R32
6.35 / 12.70 (1/4" / 1/2")
30
30 / 20
230 - 240 Volt / 50 Hz / 1 Phase
14
7.0
8.0
1.5-8.0
1.5-8.5
415/325/200/170
50~160
3.34 / 3.32
3.40 / 3.39
39 / 35 / 32 / 29
50 / 33 / -
270 x 900 x 720
800 x 850 x 298
N
35 / 52
805 X 222
815 X 221
Ø32
-15°C to 46°C
-15°C to 24°C
R32
6.35 / 15.88 (1/4" / 5/8")
30
30 / 20
230 - 240 Volt / 50 Hz / 1 Phase
16
10.0
11.2
4.5-11.2
5.0-14.0
600/550/416/-
150(max)
3.63 / 3.46
4.26 / 4.02
48 / 45 / 41 / -
52 / 54 / 50
350 x 1076 x 800
1140 x 950 x 370
Y
57 / 79
980 x 220
813 x 306
Ø25
-5°C to 46°C
-20° / 24°C
R410A
9.52 / 15.88 (3/8" / 5/8")9.52 / 15.88 (3/8" / 5/8")
30
70 / 30,20
230 - 240 Volt / 50 Hz / 1 Phase
26
12.5
14.0
5.7-14.0
5.0-18.0
783/716/566/-
150(max)
3.18 / 3.01
4.05 / 3.78
49 / 46 / 43 / -
52 / 54 / 50
350 x 1300 x 800
1140 x 950 x 370
Y
61 / 89
1205 x 220
813 x 306
Ø25
-5°C to 46°C
-20° / 24°C
R410A
Ø9.52 / Ø15.88
30
75 / 30,20
230 - 240 Volt / 50 Hz / 1 Phase
26
13.0
16.0
6.0-16.0
5.0-20.0
933/833/666/-
135(max)
3.11 / 2.96
3.90 / 3.68
53 / 49 / 45 / -
55 / 57 / 53
350 x 1300 x 800
1140 x 950 x 370
Y
63 / 89
1205 x 220
935 x 306
Ø25
-5°C to 46°C
-20° / 24°C
R410A
9.52 / 15.88 (3/8" / 5/8")
30
75 / 30,20
230 - 240 Volt / 50 Hz / 1 Phase
26
16.0
18.0
6.0-18.0
5.0-20.0
1083/950/766/-
150(max)
3.52 / 3.35
3.91 / 3.71
51 / 47 / 42 / -
49 / 53 / 46
440 x 1430 x 500
1380 x 950 x 370
N
75 / 104
830 x 300
1288 x 402
Ø25
-5°C to 46°C
-20° / 24°C
R410A
9.52 / 15.88 (3/8" / 5/8")
30
75 / 30,20
32
