RCI 4-Way Ceiling Cassette (r410a)

Light Commercial Cassette Inverter Heat Pump

RCI 4-Way Ceiling Cassette (r410a)_header

RCI 4-Way Ceiling Cassette (r410a)

Light Commercial Cassette Inverter Heat Pump

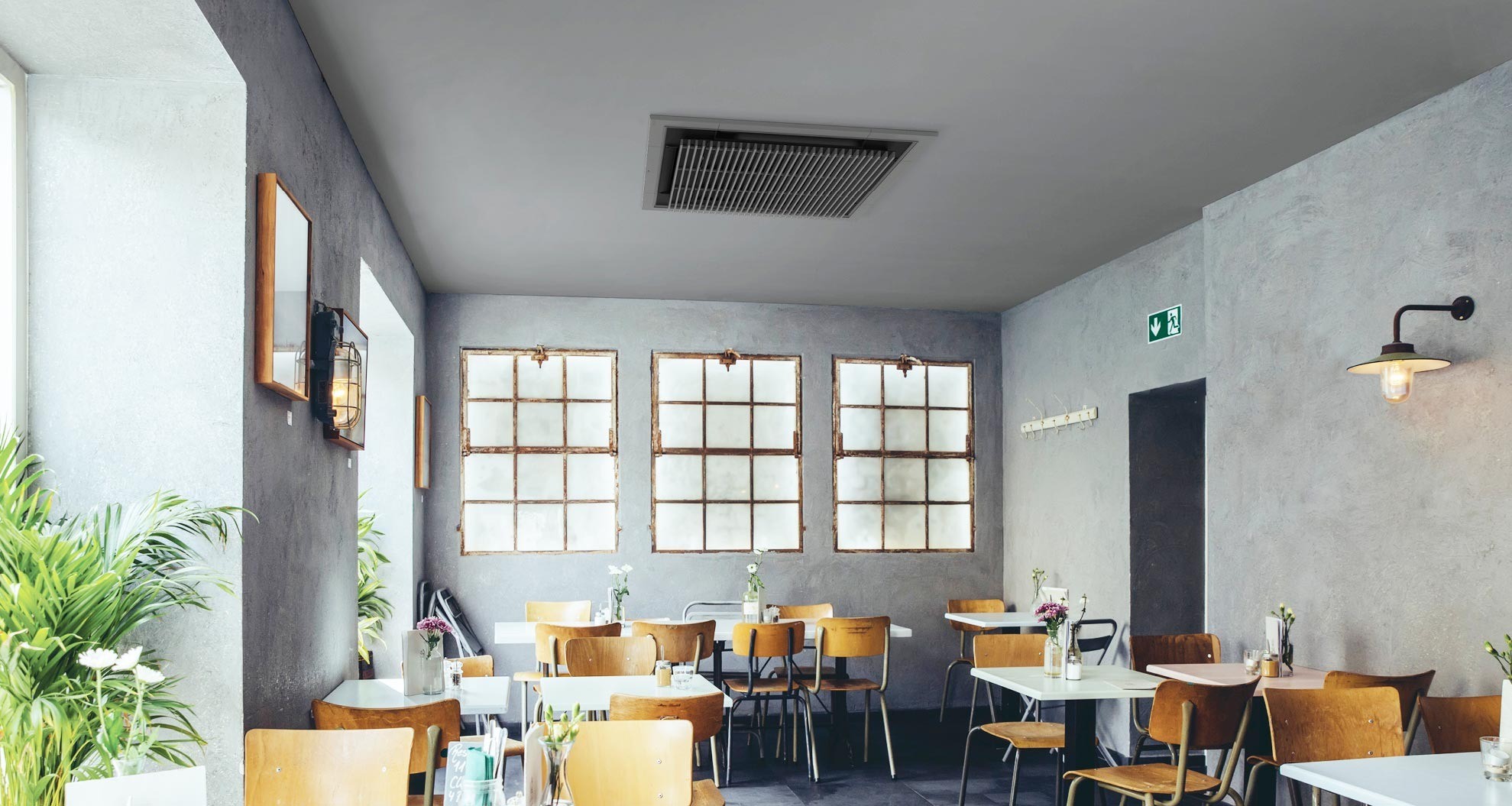

Four-way airflow cassettes are an economical and effective way of air conditioning open areas with high occupancy or traffic.
RCI 4-Way Ceiling Cassette (r410a)_0

Motion Sensor

The optional motion sensor will automatically adjust the airflow volume, airflow direction and temperature according to the amount of human activity to enhance comfort and energy efficiency.
RCI 4-Way Ceiling Cassette (r410a)_1

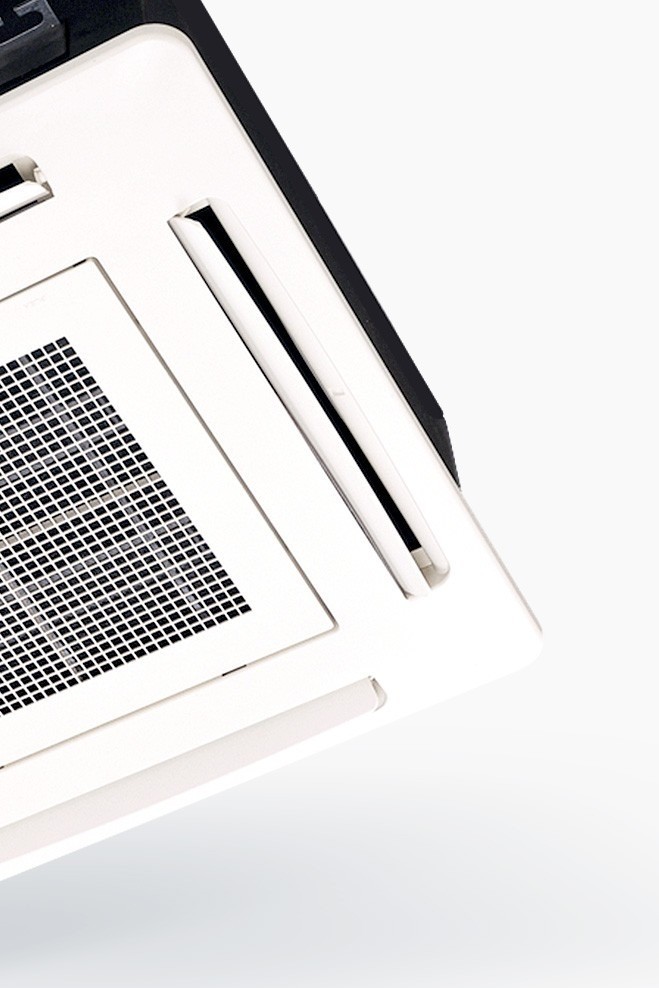

Individual Louvre Control

Louvres can be individually set in any location to ensure draft-free comfort and minimise any temperature irregularities.

RCI 4-Way Ceiling Cassette (r410a)_2

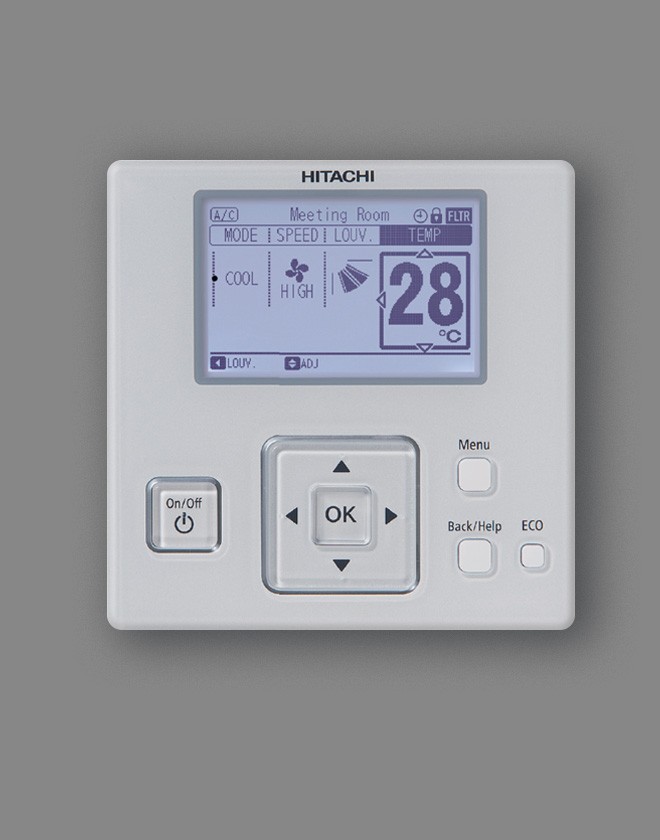

Controller

A fully-programmable 7-day timer offers the ability to switch units on and off automatically to conserve power when rooms are unoccupied.

Units are able to accept external control inputs such as remote stop/start, fire alarm, and external thermostat.

System outputs including fault conditions, mode (heat/cool), and thermostat on are also available.
RCI 4-Way Ceiling Cassette (r410a)_3

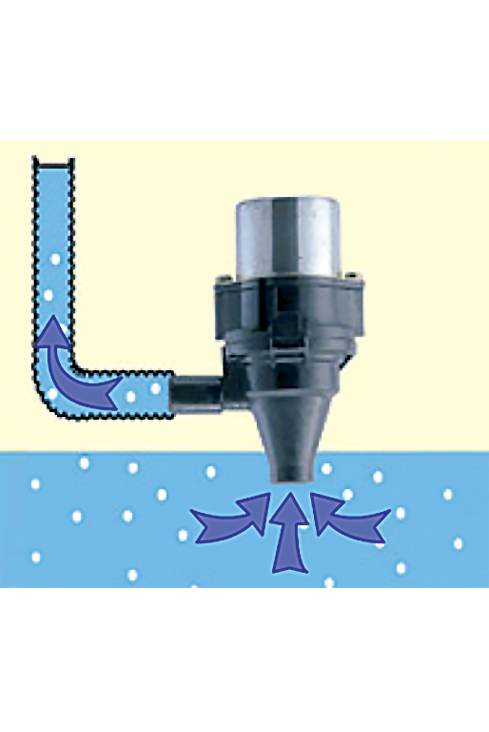

Drain pump

Equipped with an automatic drain pump, compact cassettes can lift water from the condensate drain pan up to 600mm.

An internal low-voltage drain pump removes accumulated condensate from the drain pan, even during unit operation. Afloat switch monitors the water level and automatically activates the pump as necessary. A silver ion antibacterial agent inhibits slime build-up, while a larger drain diameter assists in more efficient drainage.
RCI 4-Way Ceiling Cassette (r410a)_4

Peace of Mind

Backed by one of Australia's largest manufacturers, Temperzone -- you will always have peace of mind with a five-year warranty on parts and labour.

Easy Maintenance

RCI 4-Way Ceiling Cassette (r410a)_5
RCI 4-Way Ceiling Cassette (r410a)_6

Low Temperature Heating

Hitachi 4-Way cassette systems can supply heating in the most challenging of environments.

They will operate in outside temperatures down to as low as -20˚C and as high as 46˚C, ensuring you stay comfortable when you need it.

Compatible with the award-winning Silent Iconic design panel.

RCI 4-Way Ceiling Cassette (r410a)_7

Model

Model

RCI-3.0FSN3 / RAS-3HVNC RCI-4.0FSN3 / RAS-4HVNC1 RCI-5.0FSN3 / RAS-5HVNC1 RCI-6.0FSN3 / RAS-6HVNC1
Capacity Nominal Cooling kW
Nominal Heating kW
Capacity (Range) Cooling kW
Heating kW
Airflow UHi / Hi / Med / Low l/sec
Energy Efficiency EER / AEER
COP / ACOP
Noise Levels (dB(A)) Cooling Indoor Unit (UHi / Hi / Med / Low)
Outdoor Unit (Cool / Heat / Night)
Dimensions (mm) Indoor Unit (Height excludes fascia panel) (H x W x D mm)
Outdoor Unit (H x W x D mm)
Weights (kg) Indoor / Outdoor
Operating Range Outdoor Op. Temp. Cooling
Outdoor Op. Temp. Heating
Refrigerant Type
Pipe Sizes (mm)
Refrig Pipe charge
Max pipe length/ Max lift
Power Power Supply
Outdoor Unit Max Current (Amps)
7.1
8.0
3.2 - 8.0
3.5 - 10.6
450 / 383 / 300 / 233
3.48 / 3.33
3.70 / 3.52
42 / 36 / 32 / 28
48 / 50 / 46
298 x 840 x 840
600 x 792 x 300
26 / 44
-5°C to 46°C
-20°C to 15°C
R410A
9.52 / 15.88
20
50/30
230 - 240 Volt / 50 Hz / 1 Phase
16
10.0
11.2
4.5 - 11.2
5.0 - 14.0
617 / 517 / 400 / 333
3.72 / 3.55
4.51 / 4.25
48 / 43 / 39 / 33
52 / 54 / 50
298 x 840 x 840
1140 x 950 x 370
26 / 79
-5°C to 46°C
-20°C to 15°C
R410A
9.52 / 15.89
30
70/30
230 - 240 Volt / 50 Hz / 1 Phase
26.3
12.5
14.0
5.7 - 14.0
5.0 - 18.0
617 / 550 / 443 / 350
3.29 / 3.12
3.84 / 3.63
48 / 45 / 40 / 35
52 / 54 / 50
298 x 840 x 840
1140 x 950 x 370
26 / 89
-5°C to 46°C
-20°C to 15°C
R410A
9.52 / 15.90
30
75/30
230 - 240 Volt / 50 Hz / 1 Phase
26.4
13.0
16.0
6.0 - 16.0
5.0 - 20.0
617 / 583 / 467 / 367
3.15 / 3.00
3.61 / 3.44
48 / 46 / 41 / 37
55 / 57 / 53
298 x 840 x 840
1141 x 950 x 370
26 / 89
-5°C to 46°C
-20°C to 15°C
R410A
9.52 / 15.91
30
75/30
230 - 240 Volt / 50 Hz / 1 Phase
26.4
