– FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF

FSXNS - Space saving | FSXNP - High efficiency
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_header
When the air around you is in balance, you can enjoy life indoors that much more.
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_0

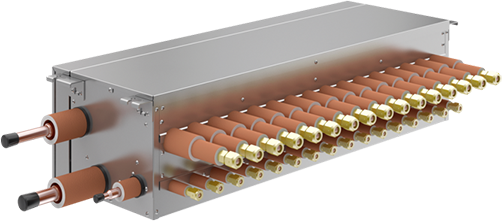

– Multi Branch Boxes - Heat Recovery

Allowing the freedom to design layouts as desired

- Multi-Port CH-Box (up to 16 ports)
- Liquid-piping built-in design
- No drain-piping needed
- Top-in-class compact body
- Top-in-class lightweight unit
- Height difference between
CH-Box to IDU extended up to 40m
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_1

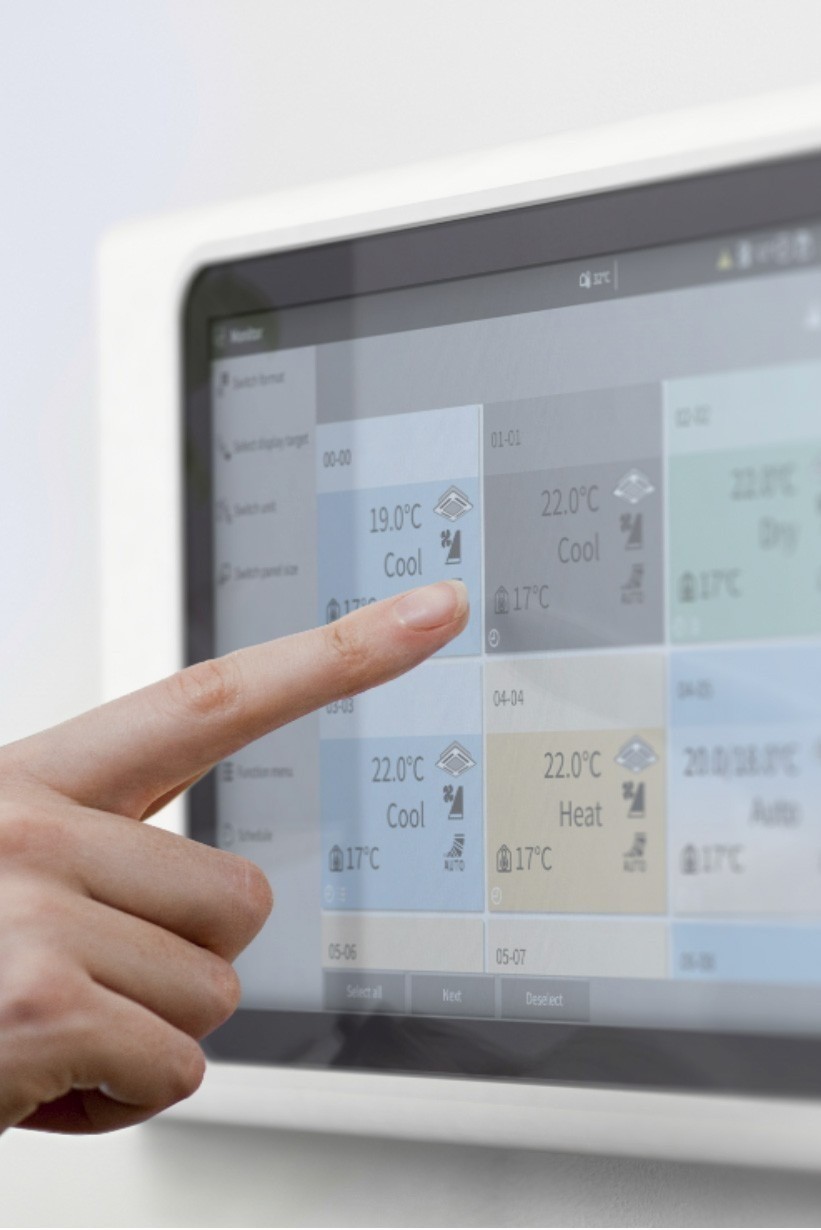

– Central Mini Controller - for Small scale buildings

5.0-inch wide colour LCD (full dot) touch panel

- Group 32
- Block 4 patterns (2/4/8/16)
- Indoor Unit 160
- Outdoor Unit 64
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_2

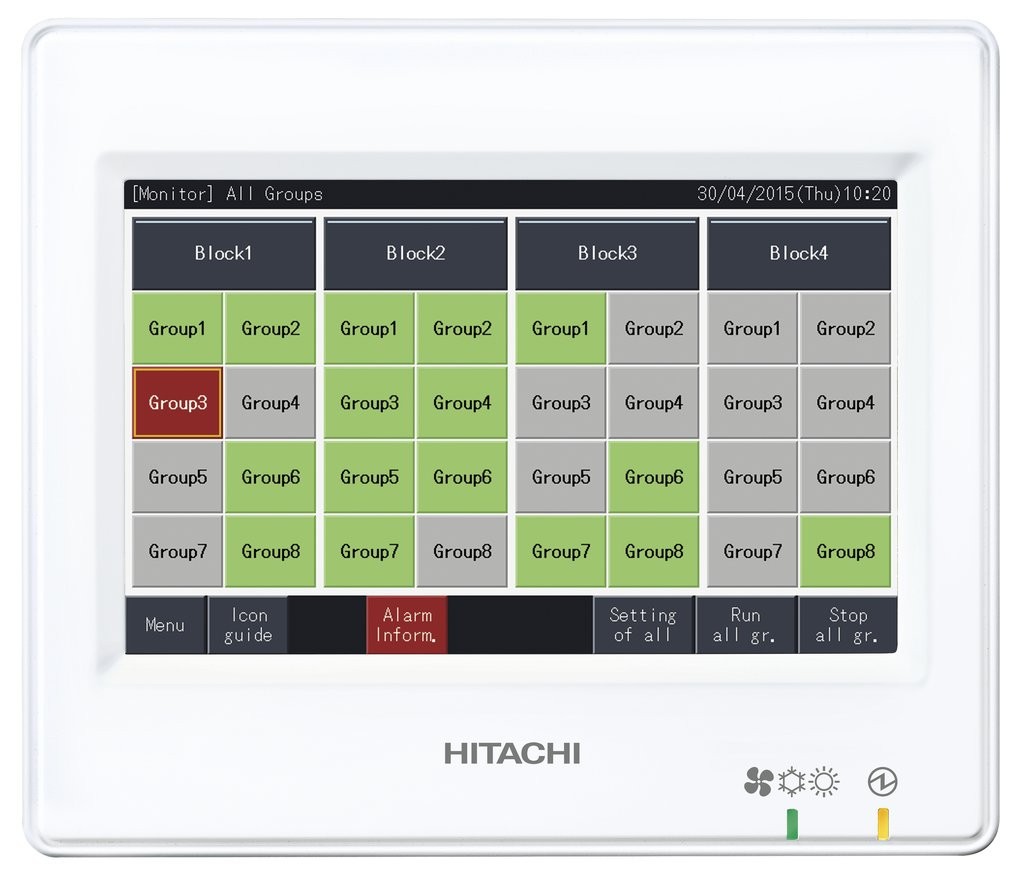

– Central EZ Controller - for Medium scale buildings

8.5" wide Colour LCD (full dot) touch panel display controls

- Groups 64
- Indoor Unit 160
- Outdoor Unit 64
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_3

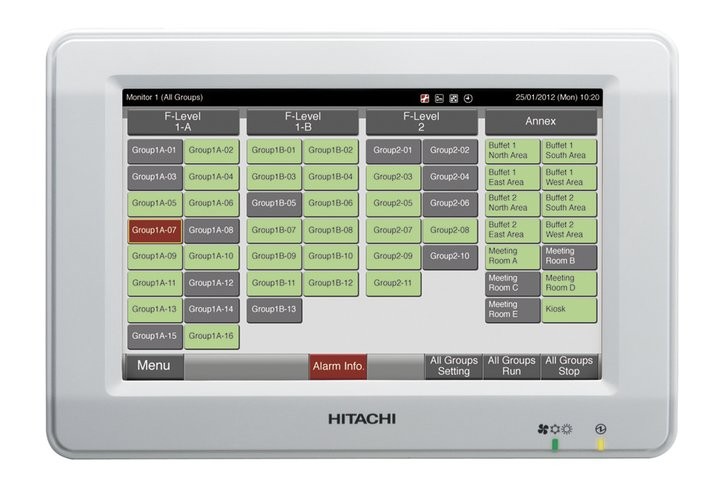

– Central EX Controller - for Large Scale buildings

Aa highly intuitive and functional 12.1" wide colour touch screen that provides you with total control and energy management for up to 2,560 indoor units.

Acquire data using SD memory and USB flash devices - upload your own floor layout images. Easily arrange indoor units by dragging them on the touch panel - web browser interface. Three long-term category settings: annual, summer & winter.
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_4

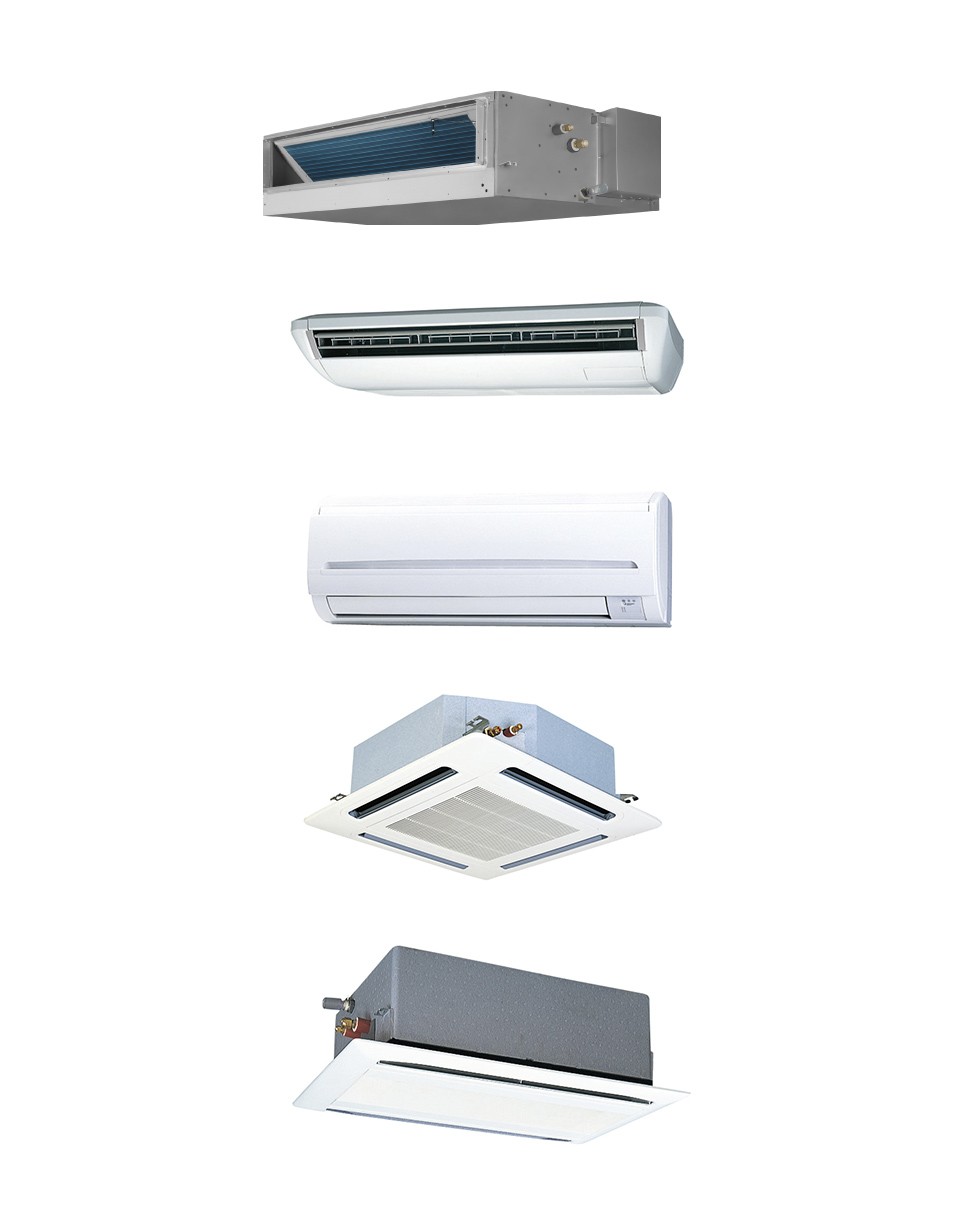

– Wide Range of Indoor Units

For indoor areas, where we are free to shape our environment, our extensive line-up of indoor units gives you the flexibility to design perfect air in any space, with concealed and compact units allowing for uninterrupted aesthetics.

Sigma VRF has a wide range and capacity of indoor units including:

- 4-way ceiling cassettes
- Low profile ducted
- Mid ESP ducted
- High ESP ducted
- Wallmounted systems
- Under ceiling
- Full fresh air
- O/A heat exchangers
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_5

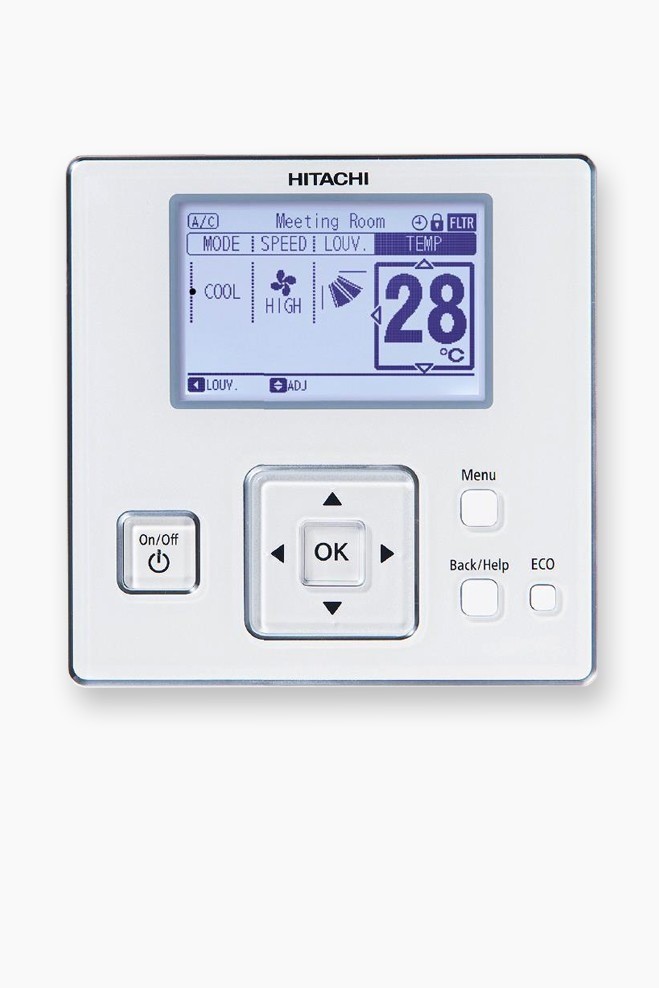

– Local Control

Advanced local control capabilities

- Half degree temperature setting
- Fan speed control
- Louvre control
- Mode control
- 24/7 time clock
- Room temperature display
- Power visualisation
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_6

– Shape your environment

Well designed cooling and heating should allow the best use of indoor and outdoor spaces.

The new SET FREE Σ outdoor units feature an ultra-compact footprint, so they can be placed discreetly out of sight or configured to optimise space usage.
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_7

– Shape your environment

Well designed cooling and heating should allow the best use of indoor and outdoor spaces.

The new SET FREE Σ outdoor units feature an ultra-compact footprint, so they can be placed discreetly out of sight or configured to optimise space usage.

– Living Harmony

FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_8
FSXNP/ FSXNS SET FREE Σ Heat Recovery VRF_9

– VRF System Management made easy with airCloud Pro

Enjoy the freedom of remote access to manage your VRF system(s) from a single interface, accessible via a smartphone app or web-based portal on a computer.

Hitachi airCloud Pro enables building owners and facilitators to monitor and control their commercial heating and cooling air conditioning system(s) through the Cloud via an IoT gateway device. This multiplatform application offers a centralised control overview of any building’s HVAC system.

Find out more about airCloud Pro here.

– Space saving series

Space saving series

Single Module 8 ~ 24 Two Modules 26 ~ 48 Three Modules 50 ~ 54
Nominal Capacity Cooling kW
Nominal Capacity Heating kW
Maximum Connectable indoor Unit Quantity
Capacity Connection Ratio Between Indoor and Outdoor Units %
Maximum Total Piping Length m
Maximum Piping Length Between Indoor and Outdoor Units m
Maximum Piping Length from first branch to furtherest indoor unit m
Maximum Height Difference Between Indoor and Outdoor Units Outdoor above m
Outdoor below m
Maximum Level Difference between Indoor Units m
Outdoor temperature Operating Range - Cooling °CDB
Outdoor temperature Operating Range - Simultaneous Operation °CDB
Outdoor temperature Operating Range - Heating CWB
22.4 ~ 67.0
25.0 ~ 77.5
8 ~ 40
50 ~ 130%
1000
165
90
110
40
15
[-10] ~ 48
[-10] ~ 24
[-20] ~ 15
73.0 ~ 136.0
82.5 ~ 150.0
43 ~ 64
50 ~ 130%
1000
165
90
110
40
15
[-10] ~ 48
[-10] ~ 24
[-20] ~ 15
140.0 ~ 150.0
155.0 ~ 165.0
64
50 ~ 130%
1000
165
90
110
40
15
[-10] ~ 48
[-10] ~ 24
[-20] ~ 15
Open table
Download PDF
Download PDF

– Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.
SET FREE Sigma VRF Heat Pump & Heat Recovery Catalogue
Heat Recovery ODU RAS-FSNXS & RAS-FSXNP Tech Data
VRF Heat Recovery ODU FSXNS_FSXNP Install Manual
All downloads
– Where to buy Hitachi air conditioners in Australia
Click Here
– How can we help you?
Contact us

– Space saving series

Space saving series

Single Module 8 ~ 24 Two Modules 26 ~ 48 Three Modules 50 ~ 54
Nominal Capacity Cooling kW
Nominal Capacity Heating kW
Maximum Connectable indoor Unit Quantity
Capacity Connection Ratio Between Indoor and Outdoor Units %
Maximum Total Piping Length m
Maximum Piping Length Between Indoor and Outdoor Units m
Maximum Piping Length from first branch to furtherest indoor unit m
Maximum Height Difference Between Indoor and Outdoor Units Outdoor above m
Outdoor below m
Maximum Level Difference between Indoor Units m
Outdoor temperature Operating Range - Cooling °CDB
Outdoor temperature Operating Range - Simultaneous Operation °CDB
Outdoor temperature Operating Range - Heating CWB
22.4 ~ 67.0
25.0 ~ 77.5
8 ~ 40
50 ~ 130%
1000
165
90
110
40
15
[-10] ~ 48
[-10] ~ 24
[-20] ~ 15
73.0 ~ 136.0
82.5 ~ 150.0
43 ~ 64
50 ~ 130%
1000
165
90
110
40
15
[-10] ~ 48
[-10] ~ 24
[-20] ~ 15
140.0 ~ 150.0
155.0 ~ 165.0
64
50 ~ 130%
1000
165
90
110
40
15
[-10] ~ 48
[-10] ~ 24
[-20] ~ 15
Open table
Download PDF
Download PDF
Equipment
  • Cassettes
  • Chillers
  • Commercial VRF
  • Controls
  • Ducted Splits
  • Multi-Zone / Multisplit
  • Residential VRF
  • Wall Mounted Split Systems
Useful links
  • Find a dealer
  • Resources
  • About
  • Contact us
  • Hitachi Air conditioner Apps
  • News
  • Projects
  • Faqs
  • Sign in
  • Legal & Cookies Policies
  • Privacy Policy

© 2022 Hitachi Cooling & Heating Australia. Exclusively available through Temperzone.

Need help? Chat with us!
–
