– Central stations
Connecting units between Indoor and Outdoor Units
Most compact in our Touch Panel Centralized Controller. Its down-to-detail control functionalities helps you save energy

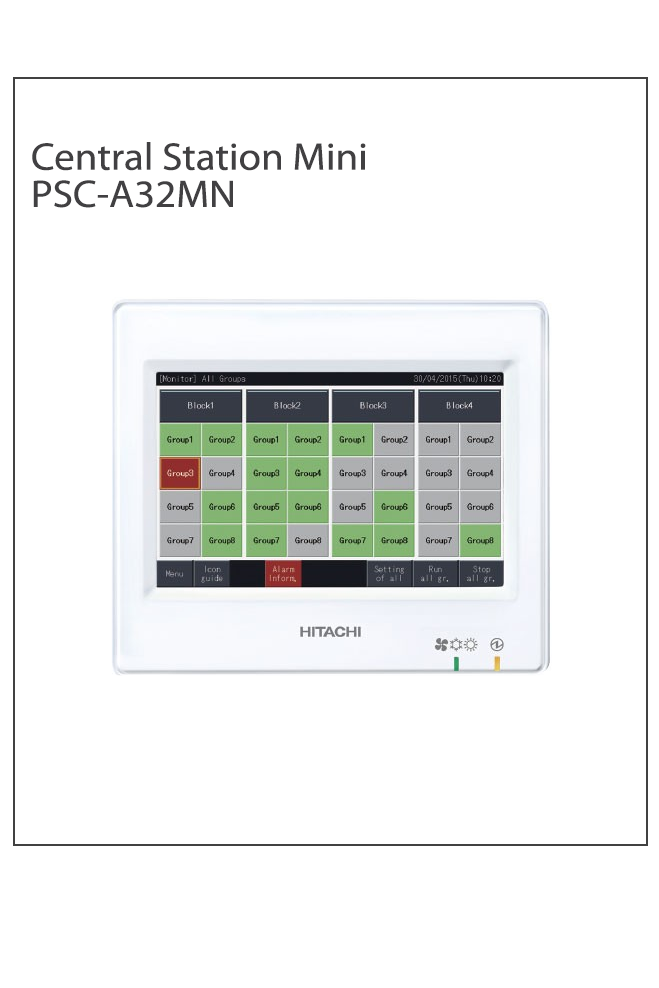

– 1. Central Station Mini PSC-A32MN
Most compact in our touch panel centralized controller.Its down-to-detail control functionalities, such as Weekly Scheduling, Accumulated Work Hours, etc., help you save energy. Up to 32 remote-controlled groups and up to 160 indoor units can be connected to the single air-conditioning system.

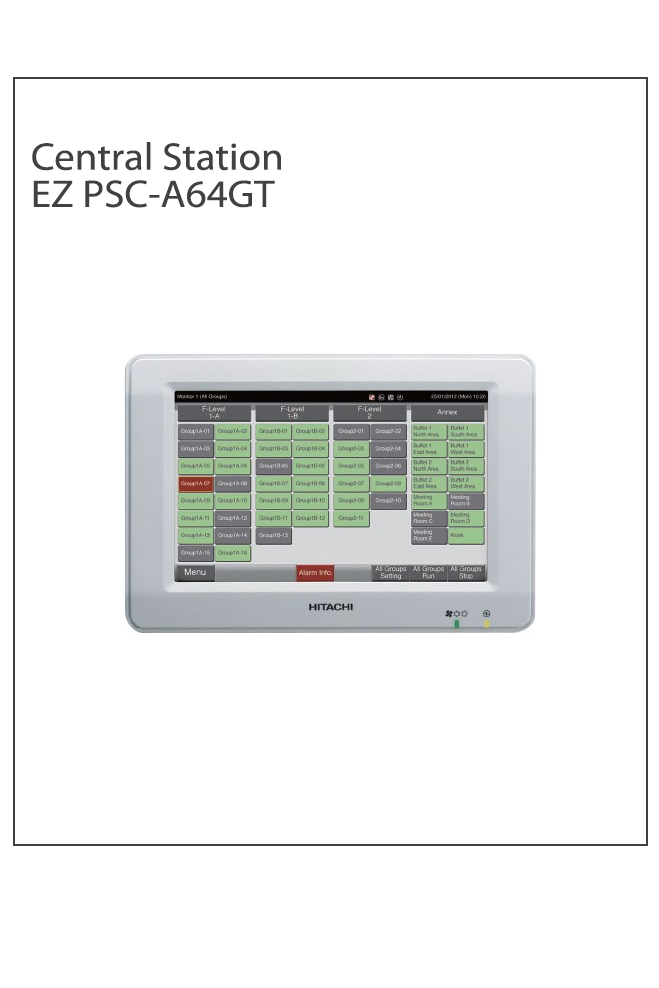

– 2. Central Station EZ PSC-A64GT
Easy control with 8.5 inch color touch panel Its down-todetail control functionalities, such as Weekly Scheduling, Accumulated Work Hours, etc., help you save energy. Up to 64 remote-controlled groups and up to 160 indoor units can be connected to the single air conditioning system.

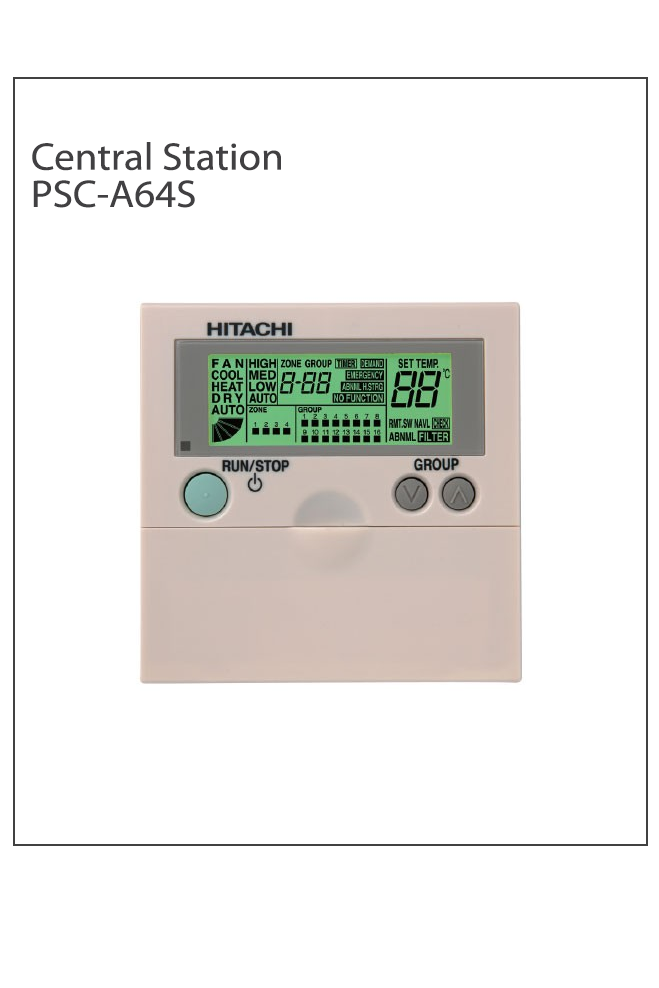

– 3. Central Station PSC-A64S
- By connecting to the H-LINK, up to 64 remote control groups and 160 indoor units can be controlled. Up to 8 controllers can be connected to the H-LINK.
- In addition to basic controls such as settings for operation / stop,operation mode and temperature,air quantity and auto louver can be set. If a problem occurs, an alarm code immediately shows the details of the problem.
- An external input terminal is provided as standard. External signals enable the following functions: central operation / stop, demand control,emergency stop, central operation output, and central alarm output.
- Can be used in combination with the ON / OFF Controller.

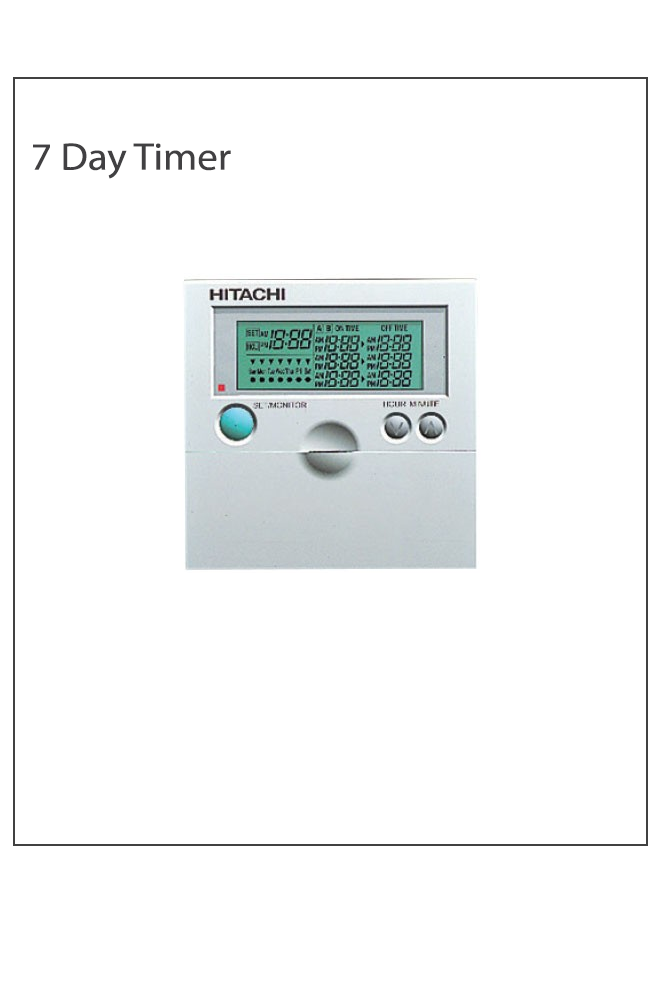

– 4. 7 Day Timer PSC-A1T
Compatible with the H-LINK II
- By using PSC-A1T with PSC-5S, PSC-A64S or PC-AR controllers, the air conditioners controlled by them can be operated according to a schedule.
- The timer can be set at 7-day intervals, and operation/stop can be set 3 times daily.
- Remote control can be prohibited in accordance with the OFF time (when used with PSC-5S, PSC-A64S and PC-AR).
- Two types of weekly schedule (A and B) can be set, and can easily be changed for summer and winter
- Settings are all digitally displayed, allowing operations and settings to be checked easily.
- The power failure backup function prevents the timer from being stopped by a power failure lasting up to 2 weeks.

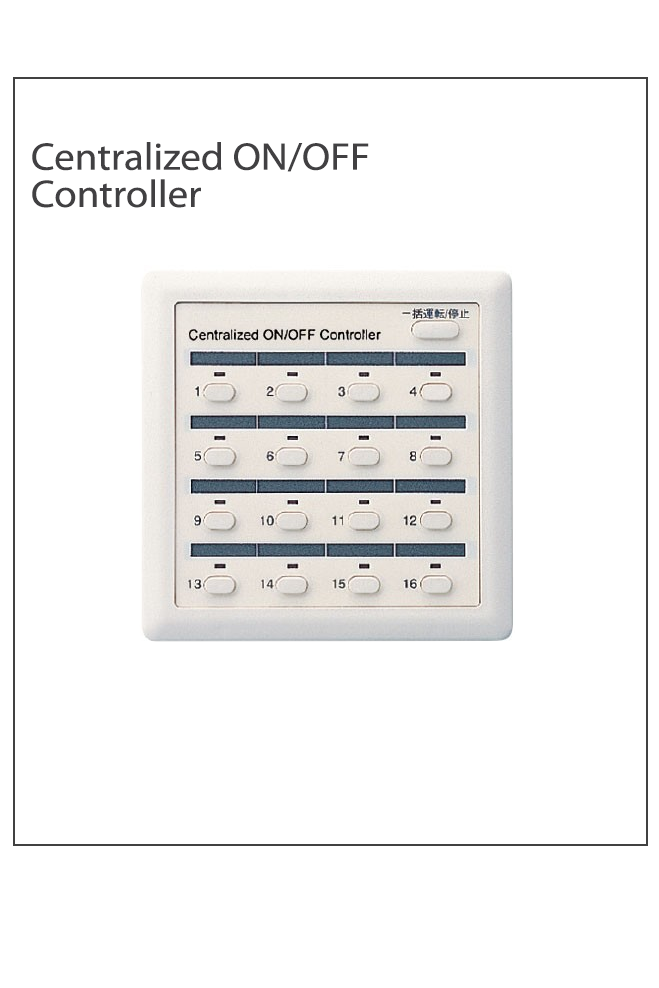

– 5. Centralized ON/OFF Controller PSC-A16RS
Compatible with the H-LINK II
- Only performs operation/stop control per remote control group.
- By connecting to the H-LINK, up to 16 remote control groups and 160 indoor units can be controlled. Up to 8 units can be connected to the H-LINK.
- An external input terminal is provided as standard. External signals enable the following functions: central operation/stop, emergency stop, central operation output, central alarm output
- Can be used in combination with the Central Station.

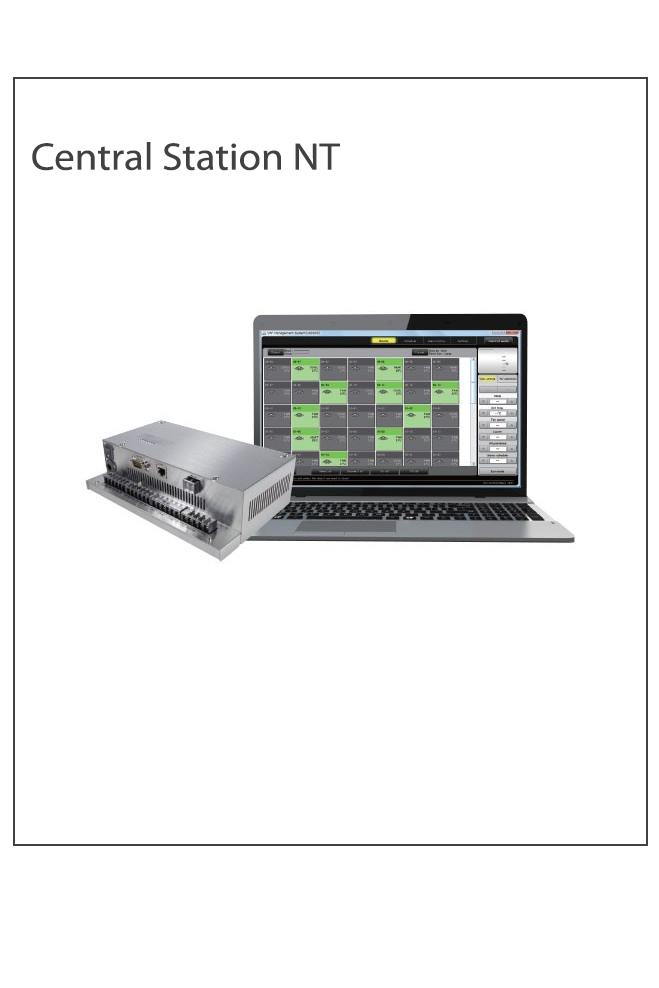

– 6. Central Station NT PSC-A128Web3
- Managing maximum 128 groups of air-conditioners. Upto 160 indoor and 64 outdoor units can be controlled and monitored with just one computer. Touch panel and web operation makes it user friendly.
- Easy-To-Use Design The newly adopted color indication or panel icon will help you recognize each unit status and manage your air conditioner more efficiently.
- Filter The filtering condition enables you to check the unit easily and quickly.
- Schedule -Weekly setting (up to 16 actions per day) -Summer / Winter seasonal setting -Special days setting.

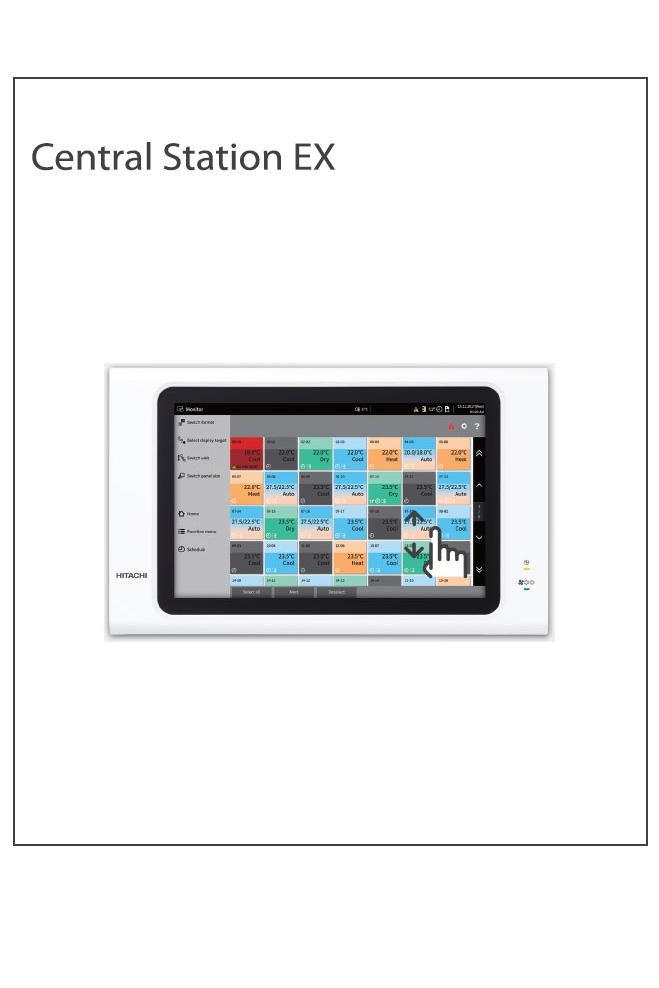

– 7. Central Station EX
For medium-large scale buildings such as hotels, educational facilities, or hospitals, our Central Station EX features a highly intuitive and functional 12.1-inch wide, wall-mountable colourful LCD screen. It controls up to 2,560 indoor units with our proprietary H-LINK system with 15 Extension Adapters (PSC-AD128EX).
- Easy To Read, Easy To Use
- Better Energy Saving And Quicker Management
- Improved Schedule Setting
- Intuitive Interface For Better Monitoring
