– Kiyora HP Series
Inspired by the new range of products, Kiyora, the 5-star Inverter Series makes sure you don’t have to choose between looks and technology.
- TYPE: Expandable Inverter Series
- STAR RATING: 4 Star / 5 Star
Inspired by the new range of products, Kiyora, the 5-star Inverter Series makes sure you don’t have to choose between looks and technology.
– air for every season

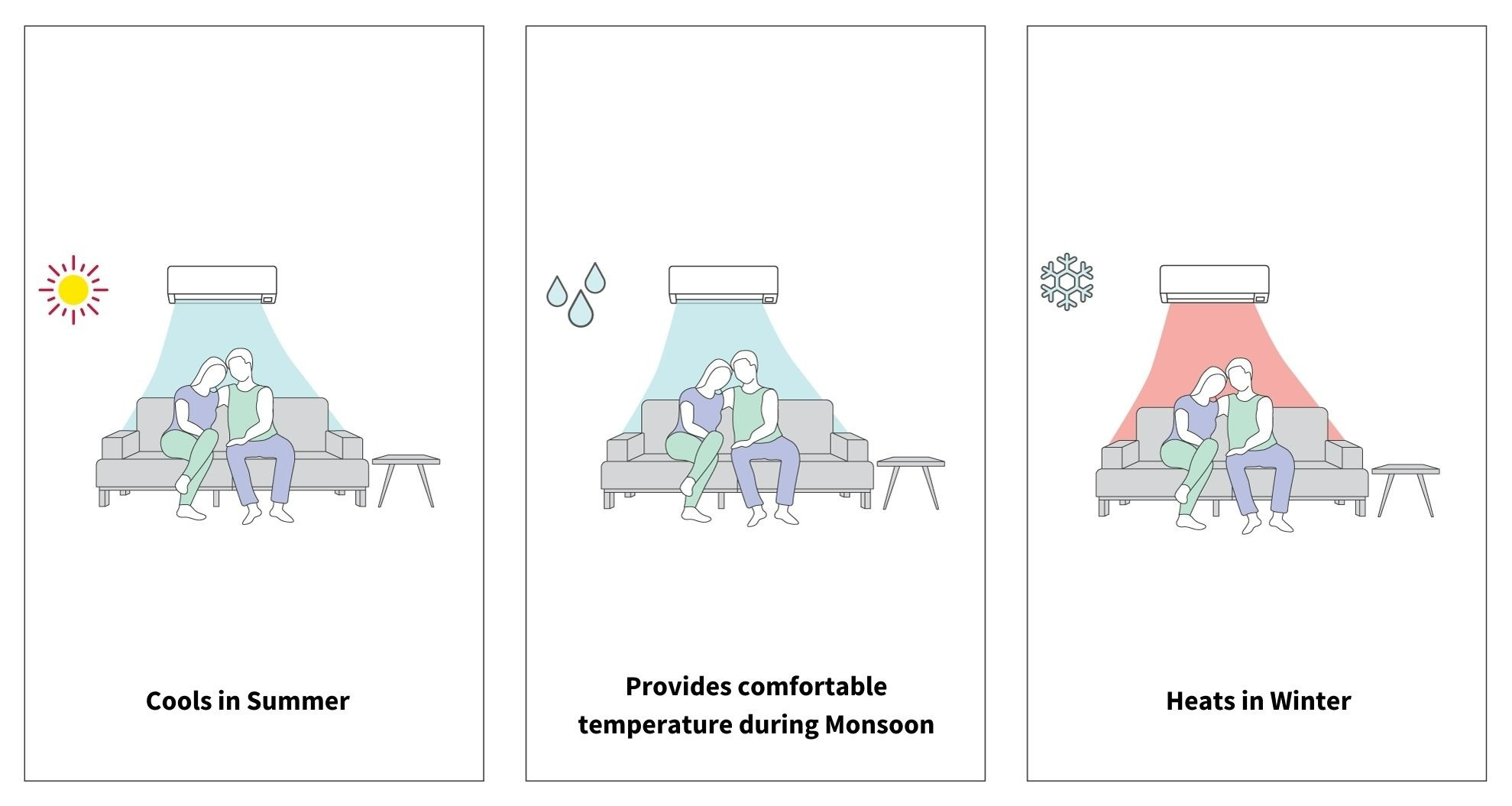

– How does Hot & Cold help?
The Hot & Cold Technology maintains the desired indoor temperature across a wide working temperature range from -15℃ to 52℃. This ensures faster heating during winter while maintaining the right comfort level. The AC also provides uniform heating and retains moisture even during peak winters. Its energy-efficient operation ensures that wherever you are in India, be it Kashmir, Cherrapunji, Jaisalmer, or Chennai, you will always be comfortable in your home.
*Product images shown are for reference only, actual product may vary. Data shown is under test condition & may vary from model to model.
*Product images shown are for reference only, actual product may vary. Data shown is under test condition & may vary from model to model.
– Comfort throughout the year
– Expandable Inverter Air Conditioners
Hitachi's 5 Star machine comes with unique expandable technology that expands its cooling capacity in adverse temperature conditions, it cuts down humidity level inside the room and achieves set temperature faster. This is an automatic smart technology where it senses the inside and outside ambient temperature continuously with help of penta sensors and increases or decreases its cooling capacity according to the requirement everytime. The compressor's rotation per minute (RPM) increases from standard rated RPM and the performance remains unaffected as compared to other air conditioners. The change in the speed of the machine is seamless with stepless compressor control hence you only feel the perfect temperature inside the room as needed.
Available in Kiyora HP models:
Kiyora 5100XHP
Available in Kiyora HP models:
Kiyora 5100XHP

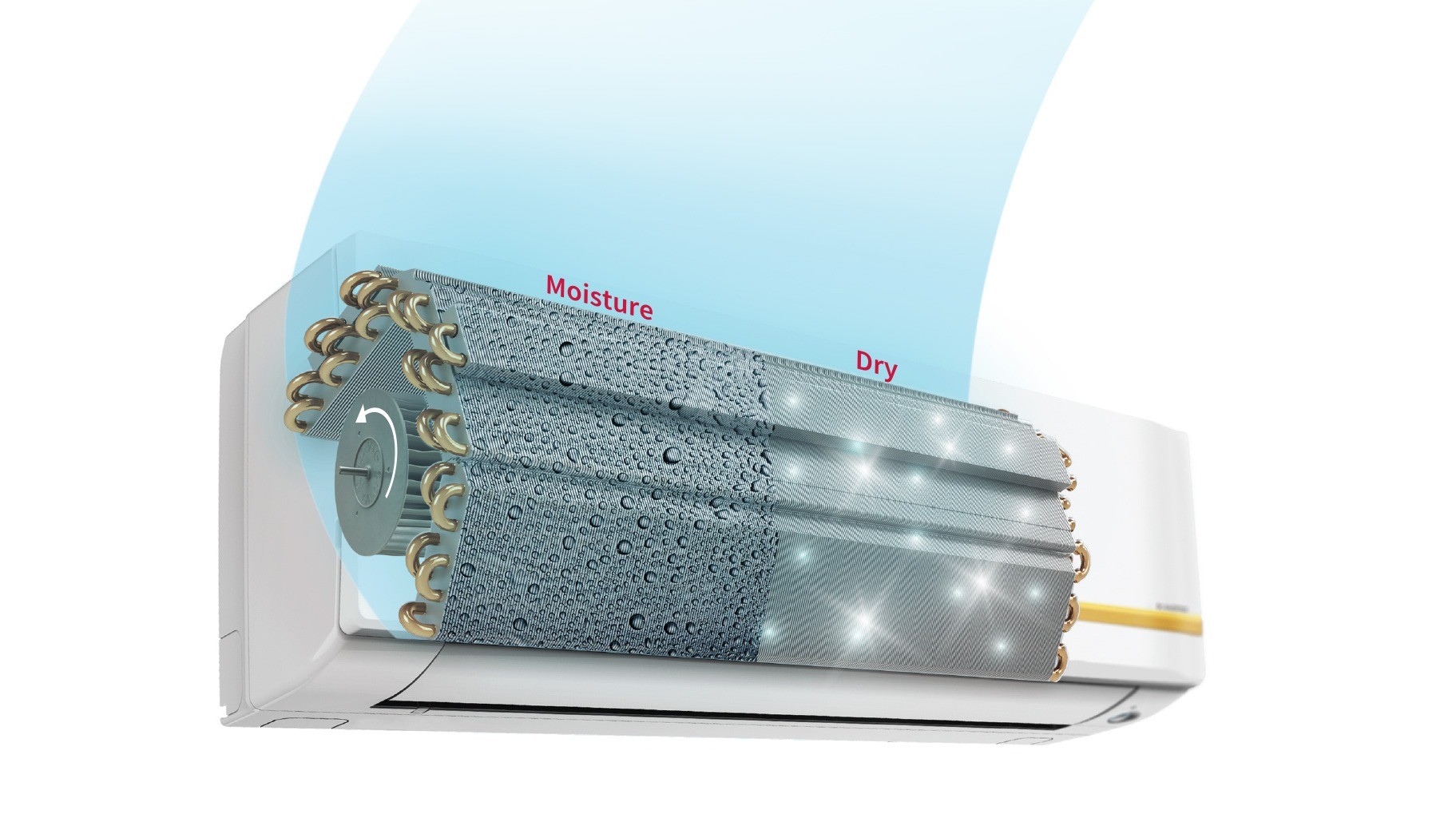

– Odour-free air : Auto Coil Dry Technology
Auto Coil Dry Technology keeps the indoor fan blower running for sometime on standby mode whenever the AC is switched off with remote controller. This dries up the evaporator coil and prevents accumulation of debris, dust and pollen, keeping the unit dry and clean to ensure Odour free air.
Available in Kiyora HP models:
Kiyora 5100XHP
Available in Kiyora HP models:
Kiyora 5100XHP
– Silent air : Wave Blade Design Technology
Unlike the conventional straight blades, our unique Sine Wave Blade Design and the bigger blower size, ensures air cutting noise reduction and far reaching maximum air volume. Enjoy the comfort of Silent air delivered by the quiet operation and larger air throw of Hitachi ACs.
Available in Kiyora HP models:
Kiyora 5100XHP
Available in Kiyora HP models:
Kiyora 5100XHP

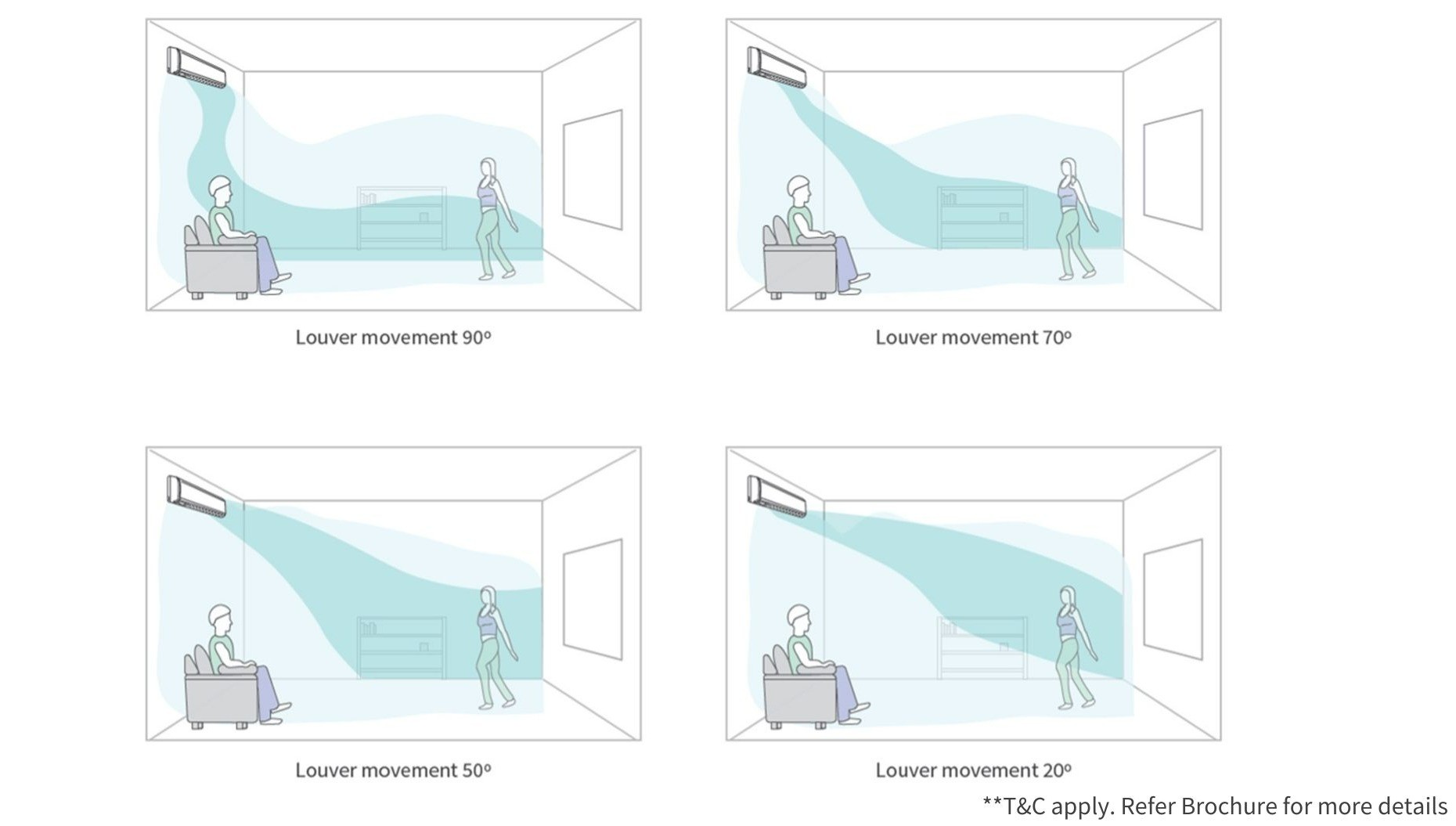

– Surround air : Wide Angle Movement
Feel the Surround air experience delivered by our Big Flow Deflector's far reaching and uniform cooling in every part of the room. While conventional AC units fail to cool the area directly beneath the AC unit, Big Flow Deflector's vertical air deflection ensures that not only the farthest corner of the room but also the area directly beneath the AC unit gets equal air volume. Thus minimizing the hot pockets in the room and cooling every corner of the room.
Available in Kiyora HP models:
Kiyora 5100XHP
Available in Kiyora HP models:
Kiyora 5100XHP

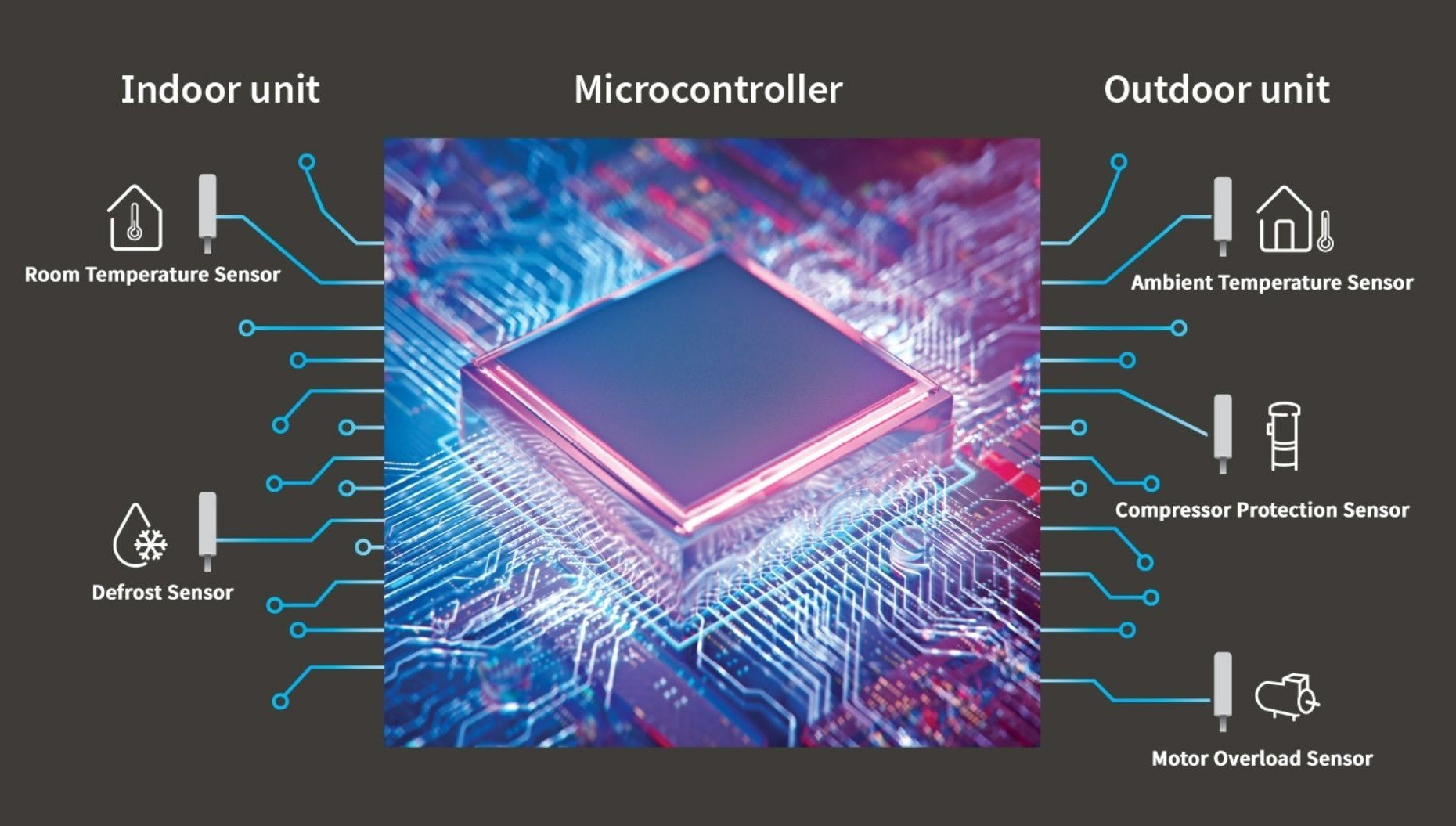

– Penta Sensor
Hitachi's intelligent Penta sensor technology with its advanced microcontroller offers perfect cooling even in extreme summer conditions, optimises cooling in load variation and protects critical components of the AC. The microcontroller connects 5 different sensors inside the AC, 2 sensors in Indoor Unit (Room Temperature Sensor and Defrost Sensor) and 3 Sensors in the Outdoor Unit (Ambient Temperature Sensor, Compressor Protection Sensor and Motor Overload Sensor). All 5 sensors communicate to provide perfect cooling temperature inside the room effortlessly and continuously.
Available in Kiyora HP models:
Kiyora 5100XHP
Available in Kiyora HP models:
Kiyora 5100XHP

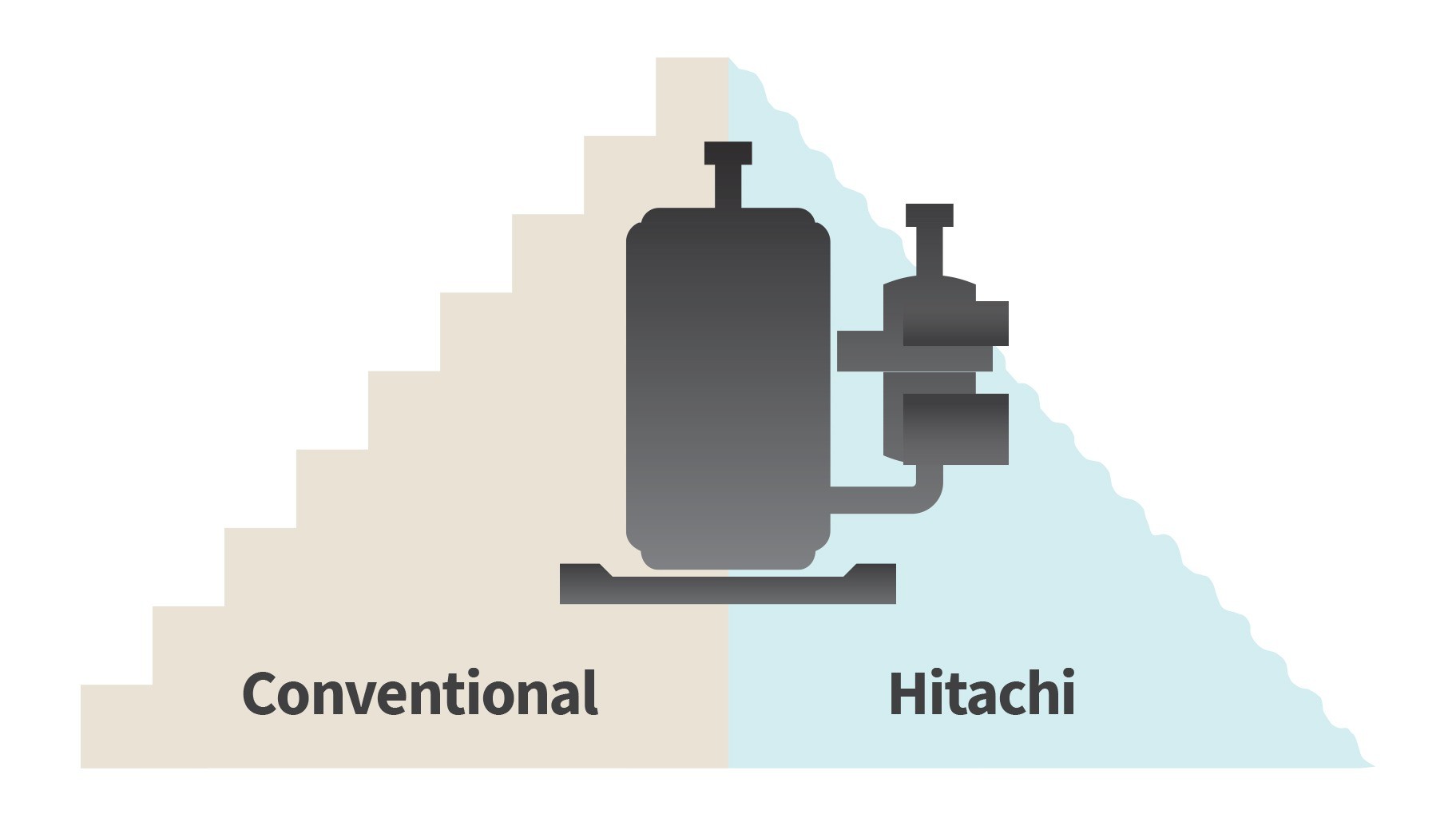

– Stepless Compressor Control
Stepless compressor control is our hero behind the smooth and uninterrupted functioning of Hitachi AC, it makes sure that AC offers optimised cooling automatically seamlessly all time. The specially designed advanced microcontroller checks the indoor and outdoor conditions and varies compressor speed seamlessly, thus offering the cooling experience you need.
Available in Kiyora HP models:
Kiyora 5100XHP
Available in Kiyora HP models:
Kiyora 5100XHP
– 100% Inner Grooved Copper
Hitachi's 100% Inner Grooved Copper ensures faster cooling with its turbulent refrigerant flow that enhances heat transfer rate. The refrigerant pipe is in constant contact with air which can lead to oxidation or corrosion and there is where copper stays unaffected for longer periods and thus enhances the lifespan of the air conditioner.
Available in Kiyora HP models:
Kiyora 5100XHP
Available in Kiyora HP models:
Kiyora 5100XHP
– Other Features
100% Inner Grooved Copper Tube
SuperSlit Fins
Stabiliser Free Operation
Tropical Design
Penta Sensor
SuperSlit Fins
Stabiliser Free Operation
Tropical Design
Penta Sensor
– Tech Data
KIYORA 5100X HP
| KIYORA 5100X HP | KIYORA 5100X HP | KIYORA 5100X HP |
|---|
| Details | Model Number | |
| Tonnage | TR | |
| Compressor | Type / Refrigerant |
| Performance | Rated Cooling Capacity (100 % load) | BTU /Hr ( watts) |
| Rated Heating Capacity (100 % load) | BTU /Hr ( watts) | |
| Maximum Cooling | BTU /Hr ( watts) | |
| Maximum Heating Capacity | BTU /Hr ( watts) | |
| Rated ISEER | ||
| Annual Power Consumption (As per BEE Norms) | (kWh) | |
| Fan Speed | No. of steps | |
| Air Flow (IDU) (Cooling/Heating -Super High) | CFM | |
| Sound level * | db |
| Electrical | Rated Power Supply | Volts/Hz/Phase |
| Rated Power Input -cooling/Heating | Watts | |
| Rated Current Drawn-Cooling/Heating | Amps |
| Assurance | Compressor Warranty | 5 + 5 Years |
| Controller (PCB) Warranty | 1 + 4 Years | |
| Extended Warranty on Entire Machine | 1 + 1 Years |
| Dimensions | Dimension (IDU) (WXHXD) | mm |
| Dimension (ODU) (WXHXD) | mm | |
| Suction Line Diameter | mm / (Inches) | |
| Liquid Line Diameter | mm (Inches) | |
| Net Weight IDU /ODU | Kg |
| RSPG512HEXA |
| 1 |
| Tropical Rotary / R410a |
| 12000 (3516) |
| 13650 (4000) |
| 12620 (3700) |
| 15400 (4500) |
| 4.6 |
| 591.73 |
| 5 |
| 425/405 |
| 30 / 29 |
| 230/50/1 |
| 935/1060 |
| 4.28/4.85 |
| Yes |
| Yes |
| Yes |
| 798 X 295 X 239 |
| 750 X 548 X 288 |
| 9.53 (3/8") |
| 6.35 (1/4") |
| 9.50 / 30.00 |
| RSRG517HEXA |
| 1.5 |
| Tropical Rotary / R410a |
| 17400 (5100) |
| 18100 (5300) |
| 19100 (5600) |
| 19000 (5570) |
| 4.55 |
| 867.57 |
| 5 |
| 583/540 |
| 31/30 |
| 230/50/1 |
| 1473/1770 |
| 6.74 / 7.41 |
| Yes |
| Yes |
| Yes |
| 997 X 294 X 253 |
| 750 X 548 X 288 |
| 12.7 (1/2") |
| 6.35 (1/4") |
| 13.00 / 35.00 |
| RMRG422HEXA |
| 2 |
| Tropical Twin Rotary / R410a |
| 22000 (6450) |
| 24000 (7033) |
| 23000 (6750) |
| 28000 (8200) |
| 4.3 |
| 1161.59 |
| 5 |
| 620/583 |
| 33/32 |
| 230/50/1 |
| 2080/2200 |
| 9.52 / 10.07 |
| Yes |
| Yes |
| Yes |
| 997 X 294 X 253 |
| 792 X 600 X 299 |
| 15.878 (5/8") |
| 6.35 (1/4") |
| 13.00 / 48.00 |
