  1. Hitachi
  2. Ranges
  3. Hot & Cold AC
  4. Shizen HP Series

– Shizen HP Series

Create a more personal and natural interior with the nature-inspired 3-star Inverter Series – Shizen.



  • TYPE​: Expandable Inverter Series​
  • STAR RATING​: 3 Star​
Shizen HP Series_header
Create a more personal and natural interior with the nature-inspired 3-star Inverter Series – Shizen.

– air for every season

Shizen HP Series_0

– How does Hot & Cold help?

The Hot & Cold Technology maintains the desired indoor temperature across a wide working temperature range from -15℃ to 52℃. This ensures faster heating during winter, while maintaining the right comfort level. The AC also provides uniform heating and retains moisture even during peak winters. Its energy-eicient operation ensures that wherever you are in India, be it Kashmir, Cherrapunji, Jaisalmer or Chennai, you will always be comfortable in your home.

* Product images shown are for reference only, actual product may vary. Data shown is under test condition & may vary from model to model.

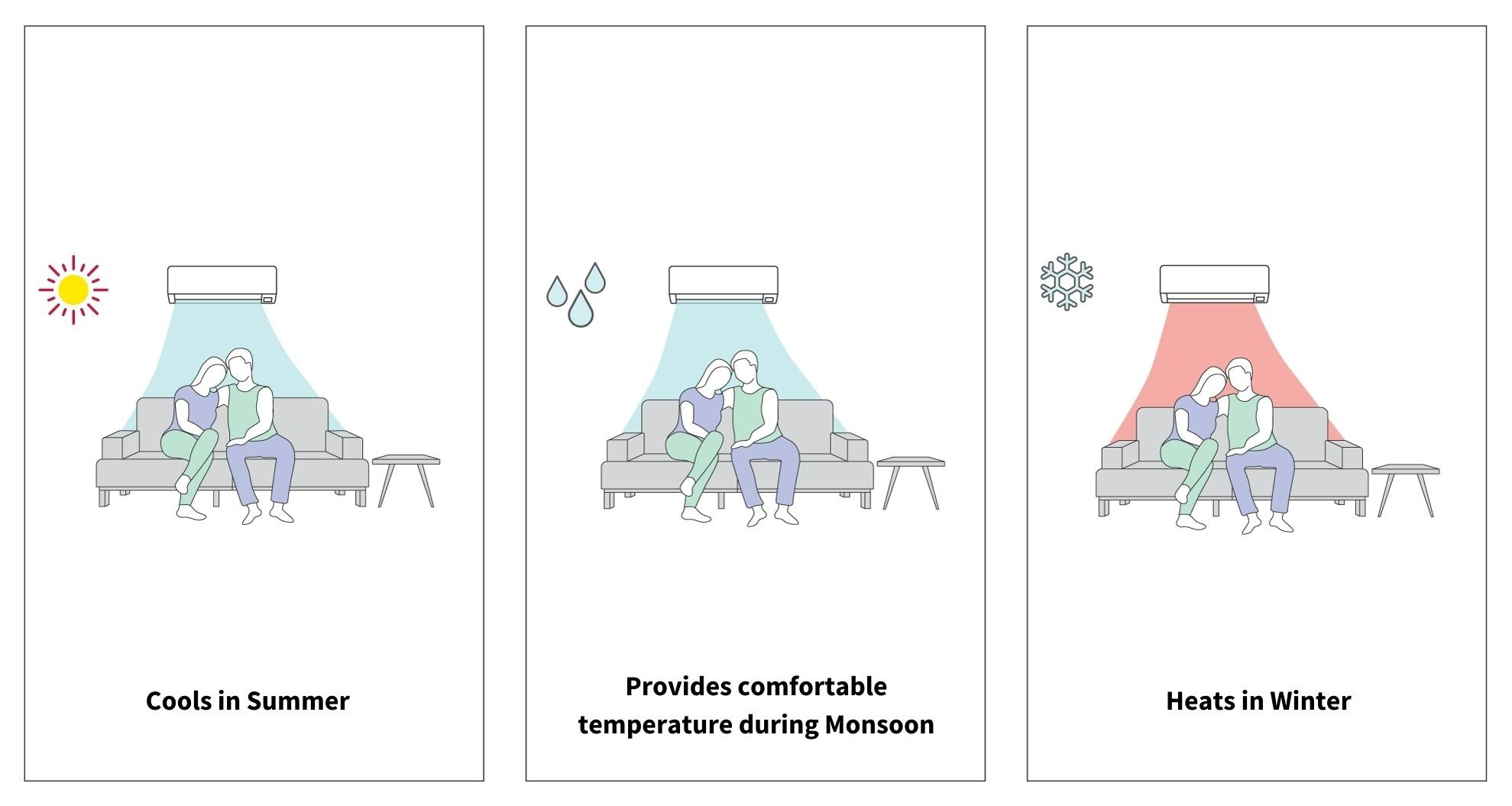

– Comfort throughout the year

Shizen HP Series_2
Shizen HP Series_3

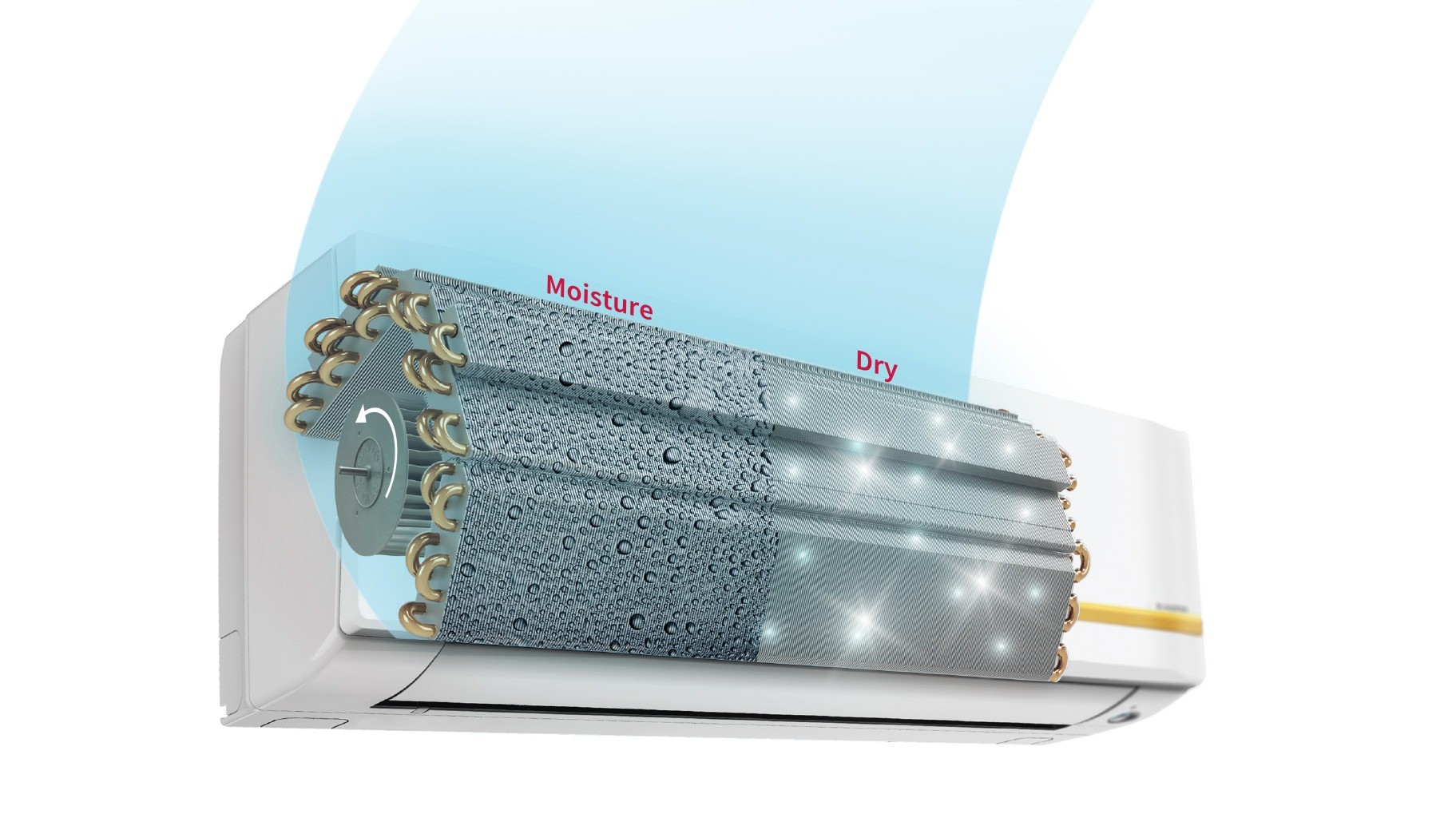

– Odour-free air : Auto Coil Dry Technology

Auto Coil Dry Technology keeps the indoor fan blower running for sometime on standby mode whenever the AC is switched off with remote controller. This dries up the evaporator coil and prevents accumulation of debris, dust and pollen, keeping the unit dry and clean to ensure Odour free air.

Available in Shizen HP models:
Shizen 3100SHP
Shizen HP Series_4

– Wave Blade Design Technology

Unlike the conventional straight blades, our unique Sine Wave Blade Design and the bigger blower size, ensures air cutting noise reduction and far reaching maximum air volume. Enjoy the comfort of Silent air delivered by the quiet operation and larger air throw of Hitachi ACs.

Available in Shizen HP models:
Shizen 3100SHP
Shizen HP Series_5

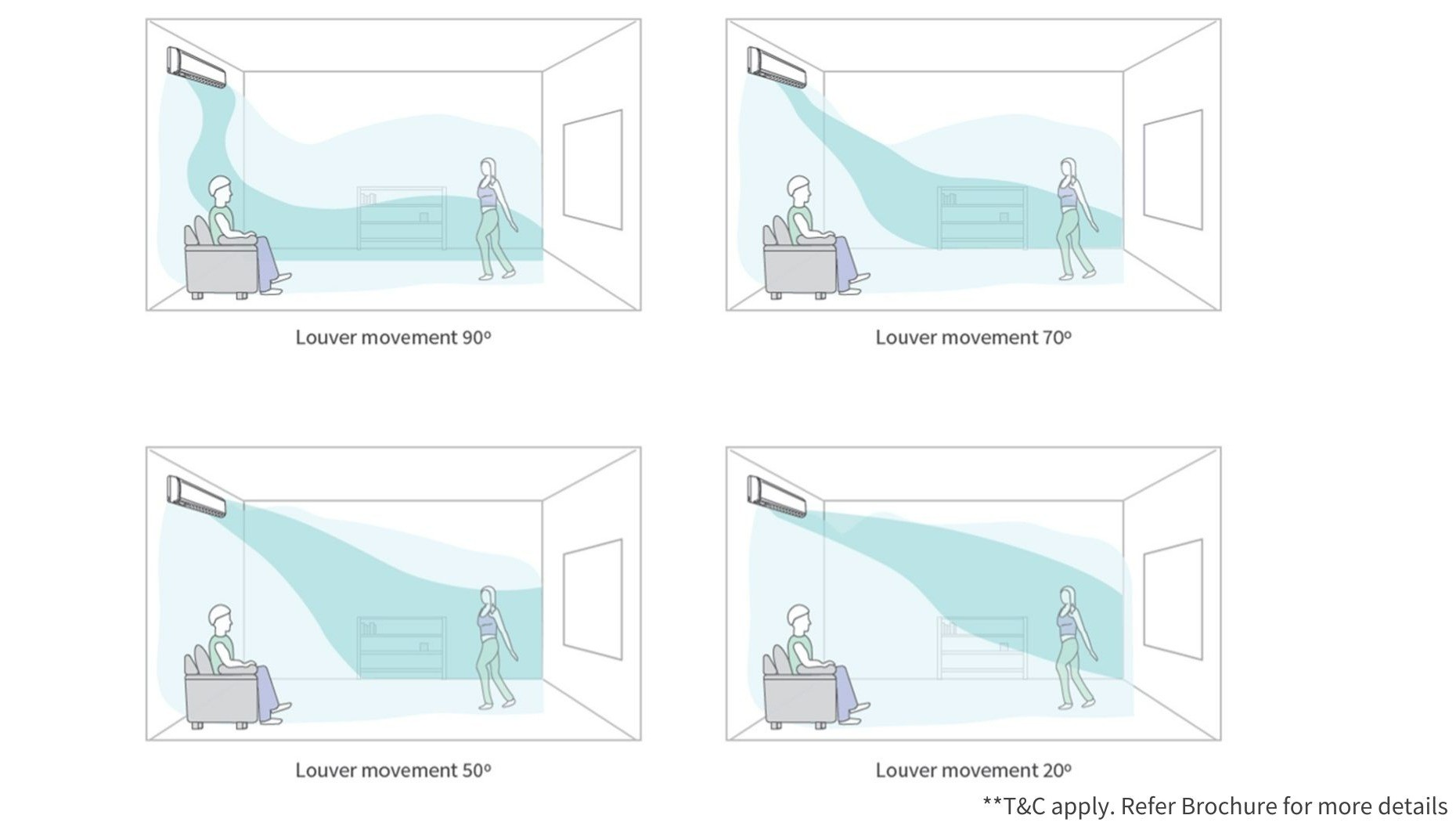

– Surround air : Wide Angle Movement

Feel the Surround air experience delivered by our Big Flow Deflector's far reaching and uniform cooling in every part of the room. While conventional AC units fail to cool the area directly beneath the AC unit, Big Flow Deflector's vertical air deflection ensures that not only the farthest corner of the room but also the area directly beneath the AC unit gets equal air volume. Thus minimizing the hot pockets in the room and cooling every corner of the room.

Available in Shizen HP models:
Shizen 3100SHP
Shizen HP Series_6

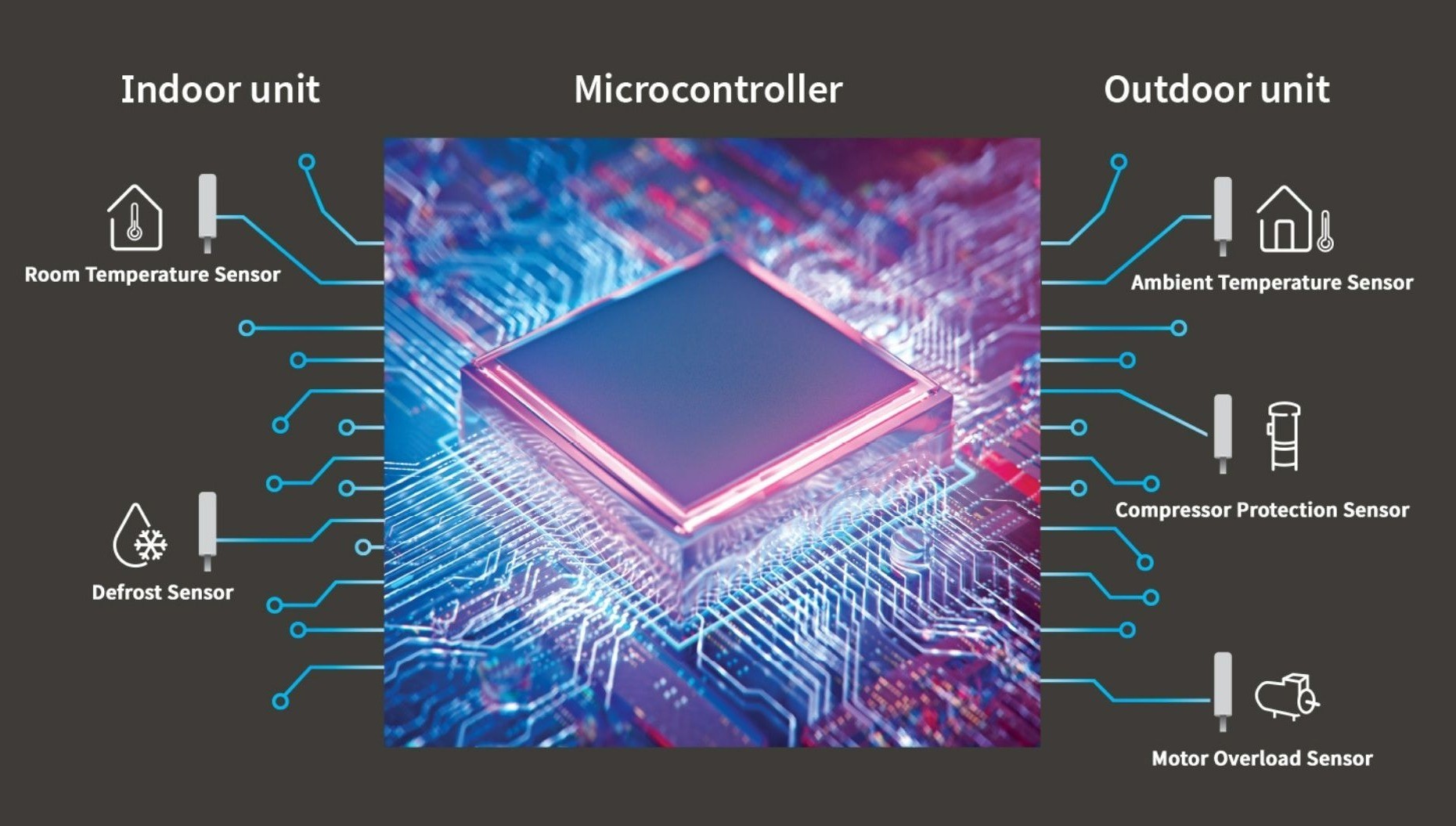

– Penta Sensor

Hitachi's intelligent Penta sensor technology with its advanced microcontroller offers perfect cooling even in extreme summer conditions, optimises cooling in load variation and protects critical components of the AC. The microcontroller connects 5 different sensors inside the AC, 2 sensors in Indoor Unit (Room Temperature Sensor and Defrost Sensor) and 3 Sensors in the Outdoor Unit (Ambient Temperature Sensor, Compressor Protection Sensor and Motor Overload Sensor). All 5 sensors communicate to provide perfect cooling temperature inside the room effortlessly and continuously.

Available in Shizen HP models:
Shizen 3100SHP
Shizen HP Series_7

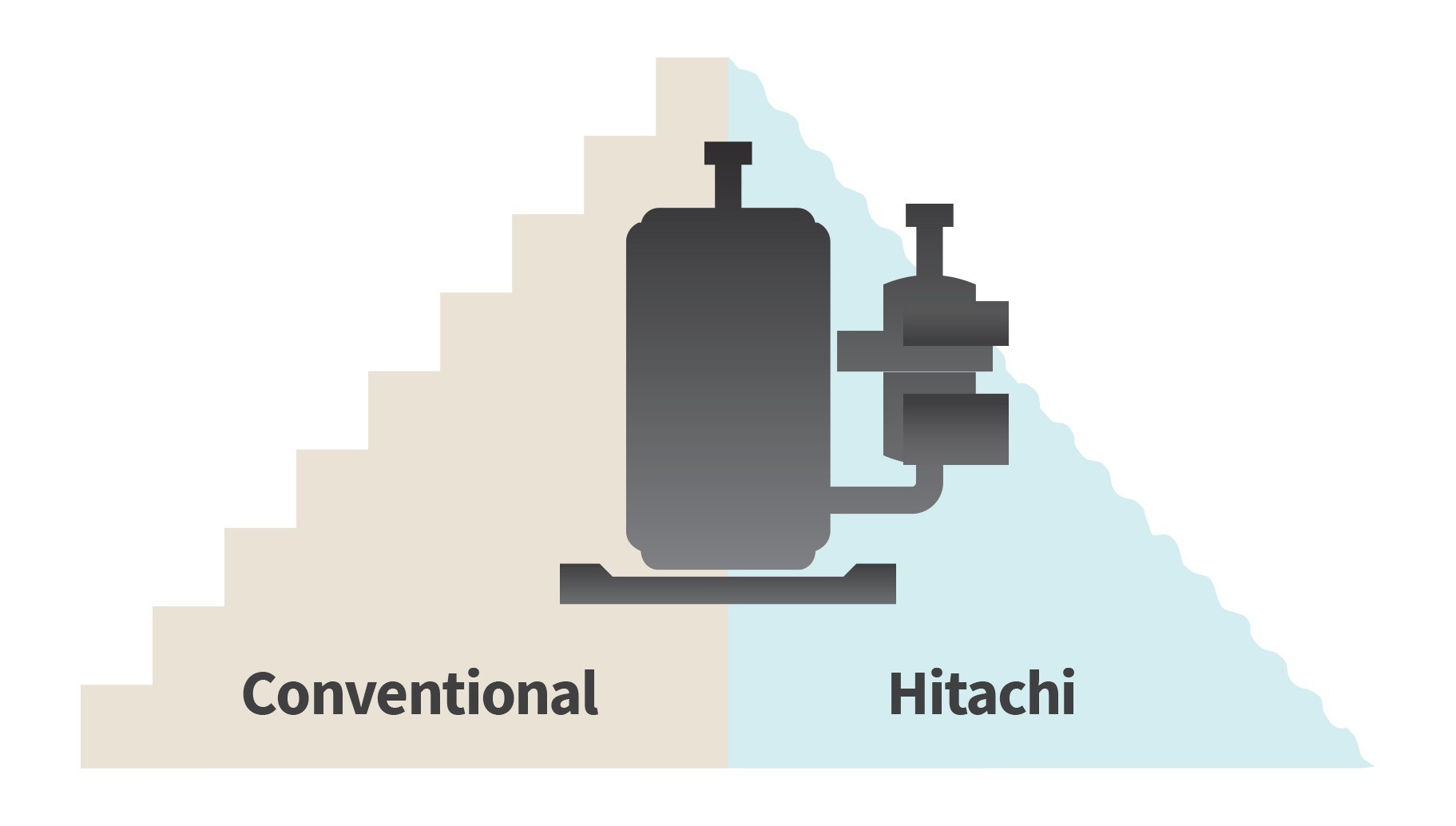

– Stepless Compressor Control

Stepless compressor control is our hero behind the smooth and uninterrupted functioning of Hitachi AC, it makes sure that AC offers optimised cooling automatically seamlessly all time. The specially designed advanced microcontroller checks the indoor and outdoor conditions and varies compressor speed seamlessly, thus offering the cooling experience you need.

Available in Shizen HP models:
Shizen 3100SHP
Shizen HP Series_8

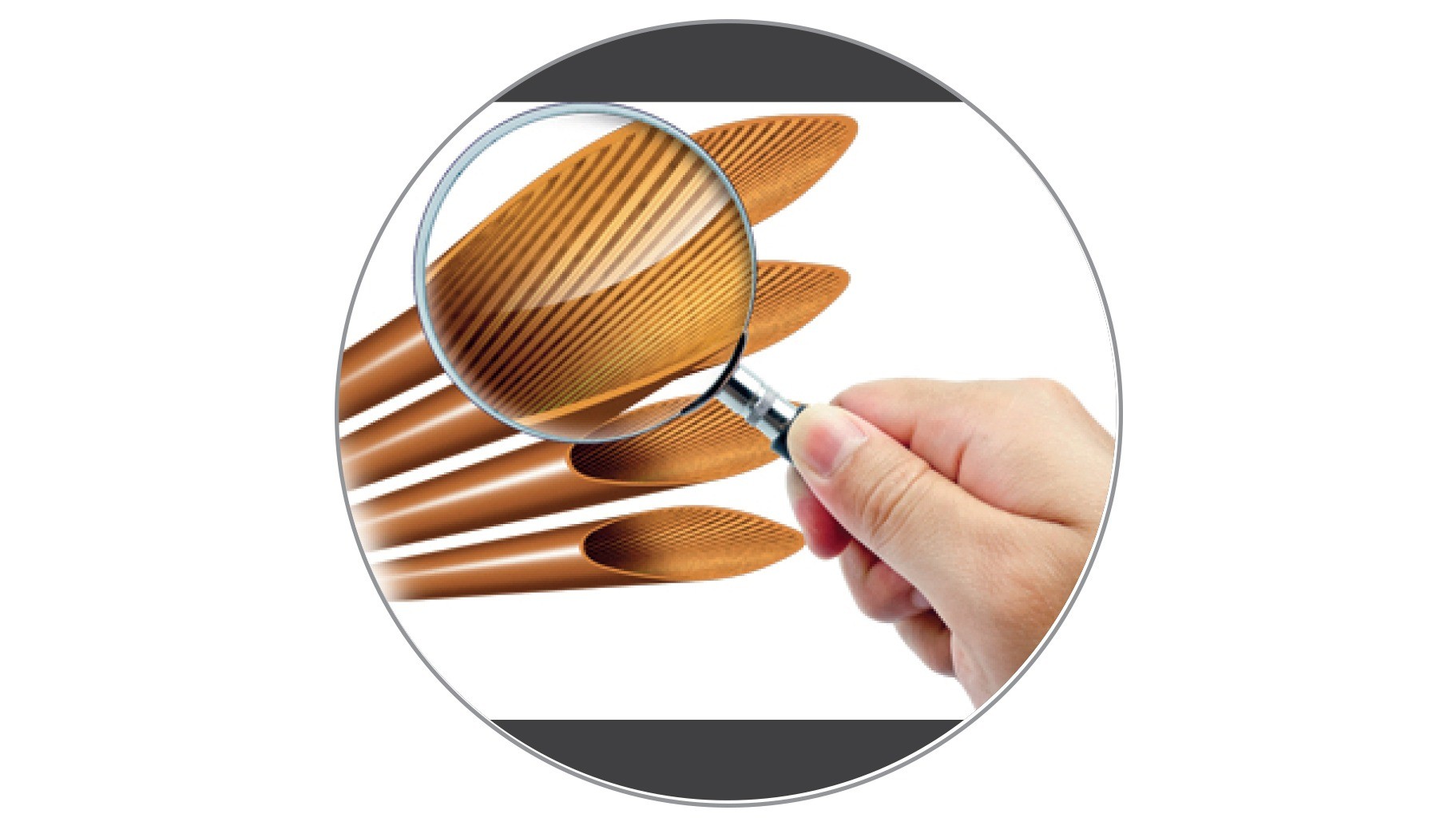

– 100% Inner Grooved Copper

Hitachi's 100% Inner Grooved Copper ensures faster cooling with its turbulent refrigerant flow that enhances heat transfer rate. The refrigerant pipe is in constant contact with air which can lead to oxidation or corrosion and there is where copper stays unaffected for longer periods and thus enhances the lifespan of the air conditioner.

Available in Shizen HP models:
Shizen 3100SHP

– Tech Data

SHIZEN 3100S HP

SHIZEN 3100S HP SHIZEN 3100S HP SHIZEN 3100S HP
Details Model Number
Tonnage TR
Compressor Type / Refrigerant
Performance Rated Cooling Capacity (100 % load) BTU /Hr ( watts)
Rated Heating Capacity (100 % load) BTU /Hr ( watts)
Maximum Cooling BTU /Hr ( watts)
Maximum Heating Capacity BTU /Hr ( watts)
Rated ISEER
Annual Power Consumption (As per BEE Norms) (kWh)
Fan Speed No. of steps
Air Flow (IDU) (Cooling/Heating -Super High) CFM
Sound level * db
Electrical Rated Power Supply Volts/Hz/Phase
Rated Power Input -cooling/Heating Watts
Rated Current Drawn-Cooling/Heating Amps
Assurance Compressor Warranty 5 + 5 Years
Controller (PCB) Warranty 1 + 4 Years
Extended Warranty on Entire Machine 1 + 1 Years
Dimensions Dimension (IDU) (WXHXD) mm
Dimension (ODU) (WXHXD) mm
Suction Line Diameter mm / (Inches)
Liquid Line Diameter mm (Inches)
Net Weight IDU /ODU Kg
RSPG312HEXA
1
Tropical Rotary / R410a
12000 (3516)
13000 (3800)
12620 (3700)
14000 (4100)
3.8
716.19
5
425/405
30/29
230/50/1
1095/1025
5.01 / 4.69
Yes
Yes
Yes
798 X 295 X 239
750 X 548 X 288
9.53 (3/8")
6.35 (1/4")
9.50 / 30.00
RSQG318HEXA
1.5
Tropical Rotary / R410a
17400 (5100)
18100 (5300)
18350 (5360)
19000 (5570)
3.8
1040.2
5
530/460
33/32
230/50/1
1847/1500
8.45 / 6.86
Yes
Yes
Yes
968 X 294 X 240
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
11.20 / 34.00
RMRG324HEXA
2
Tropical Twin Rotary / R410a
24000 (7000)
24000 (7000)
24000 (7000)
26000 (7600)
3.6
1507.1
5
620/583
33/32
230/50/1
2860/2540
13.09 / 11.62
Yes
Yes
Yes
997 X 294 X 253
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
13.00 / 48.00
Open table
Download PDF
