  1. Hitachi
  2. Ranges
  3. Inverter Split AC
  4. Shizen Inverter Air Conditioners Series

– Shizen Inverter Air Conditioners Series

Create a more personal and natural interior with the nature-inspired 3-star Inverter Series – Shizen.



STAR RATING​: 3 Star

Shizen Inverter Air Conditioners Series_header
Create a more personal and natural interior with the nature-inspired 3-star Inverter Series – Shizen.
Shizen Inverter Air Conditioners Series_0_0
Shizen Inverter Air Conditioners Series_0_1
Shizen Inverter Air Conditioners Series_0_2
1/3

– Inspired by the seasons of the year

Shizen Inverter Air Conditioners Series_1
Shizen Inverter Air Conditioners Series_2

– Ambience Light : Know Your Ambience

An immersive diplay with highest level of craftsmanship, that helps you to know the ambience of your indoors. Bold yet soothing colors that are perfectly in-tune with your unique taste in temperature. Know your ambience be it cool (16 ̊C to 23 ̊C) , comfortable (24 ̊C to 27 ̊C)or warm(28 ̊C to 32 ̊C) - with Hitachi's first-ever Ambience light.

Available in Shizen models:
Shizen 3200WS
Shizen 3100S
Shizen Inverter Air Conditioners Series_3

– airCloud Home : Wi-Fi enabled AC

airCloud Home an inbuilt Wi-Fi in your ac lets you remotely monitor and control your ac with a single app through a smartphone, digital device, or voice assistant. Now, you can communicate with your ac with a voice command from Google Home, Amazon Echo, or smartphone assistant. Connect your AC to your geolocation with our Smart-Fence feature and live a comfortable life as your ac will switch on before you enter your house and will switch off after you leave your house, it's that simple with Smart-Fence. The Wi-Fi let's you know about AC setting from anywhere anytime.

Available in Shizen models:
Shizen 3200WS

– air Technology

Shizen Inverter Air Conditioners Series_4
Shizen Inverter Air Conditioners Series_5

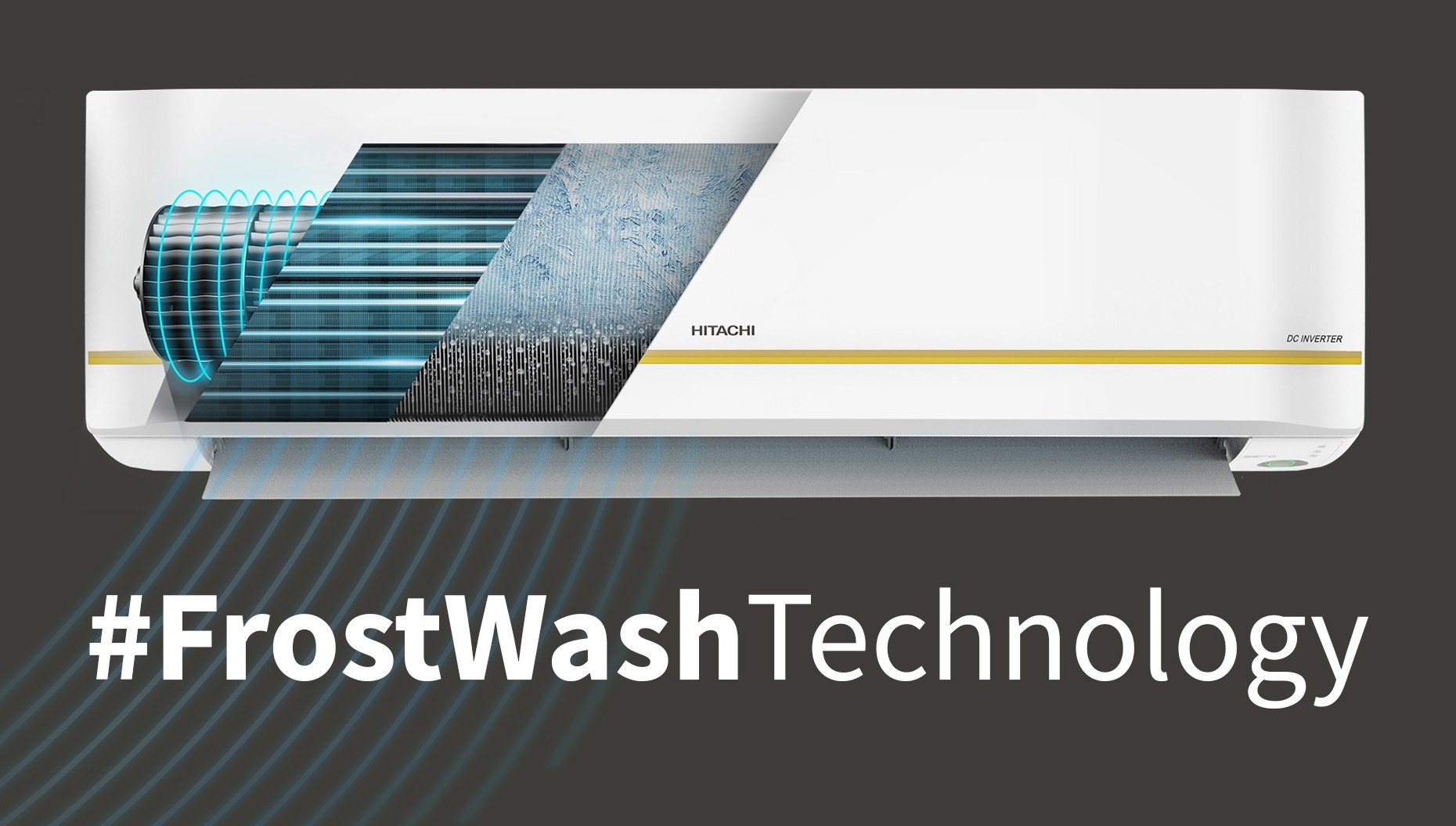

– iFresh : FrostWash Technology

Dust that is collected on the indoor unit coil affects the air conditioner's performance in the long run. At times, water drips and forms a bad odour. Hitachi's iFresh, a FrostWash Technology creates frost on the indoor unit coil with the help of the dew that is collected from air moisture. With the formation of frost on the coil, dust gets attached to it and then after sometime, the frost melts and drains out the dust, bacteria and mould from the indoor unit coil. The coil then dries up and is all ready to deliver a Fresh air cooling experience.

Available in Shizen models:
Shizen 3200FS

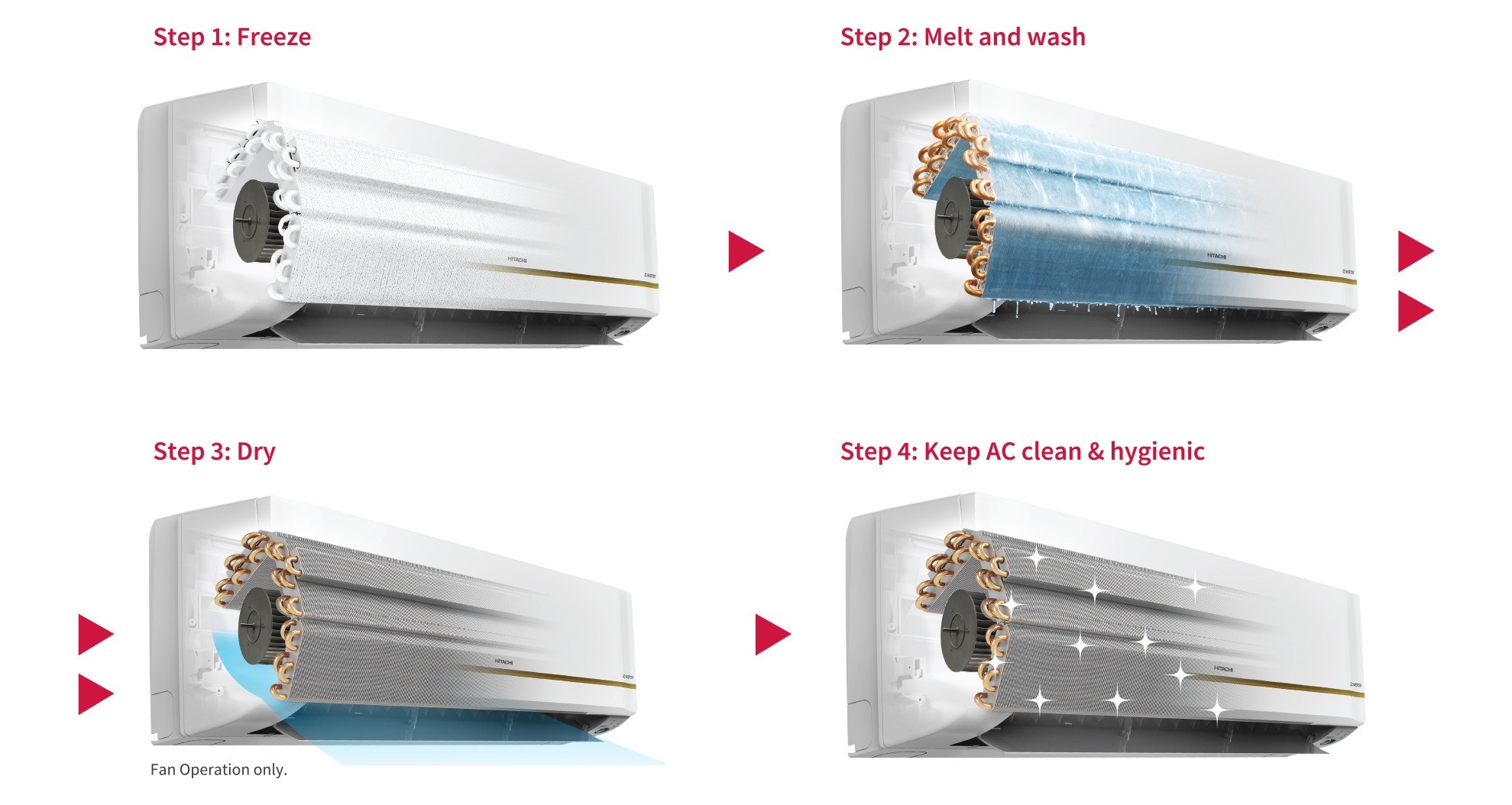

– How does FrostWash work?

Shizen Inverter Air Conditioners Series_6

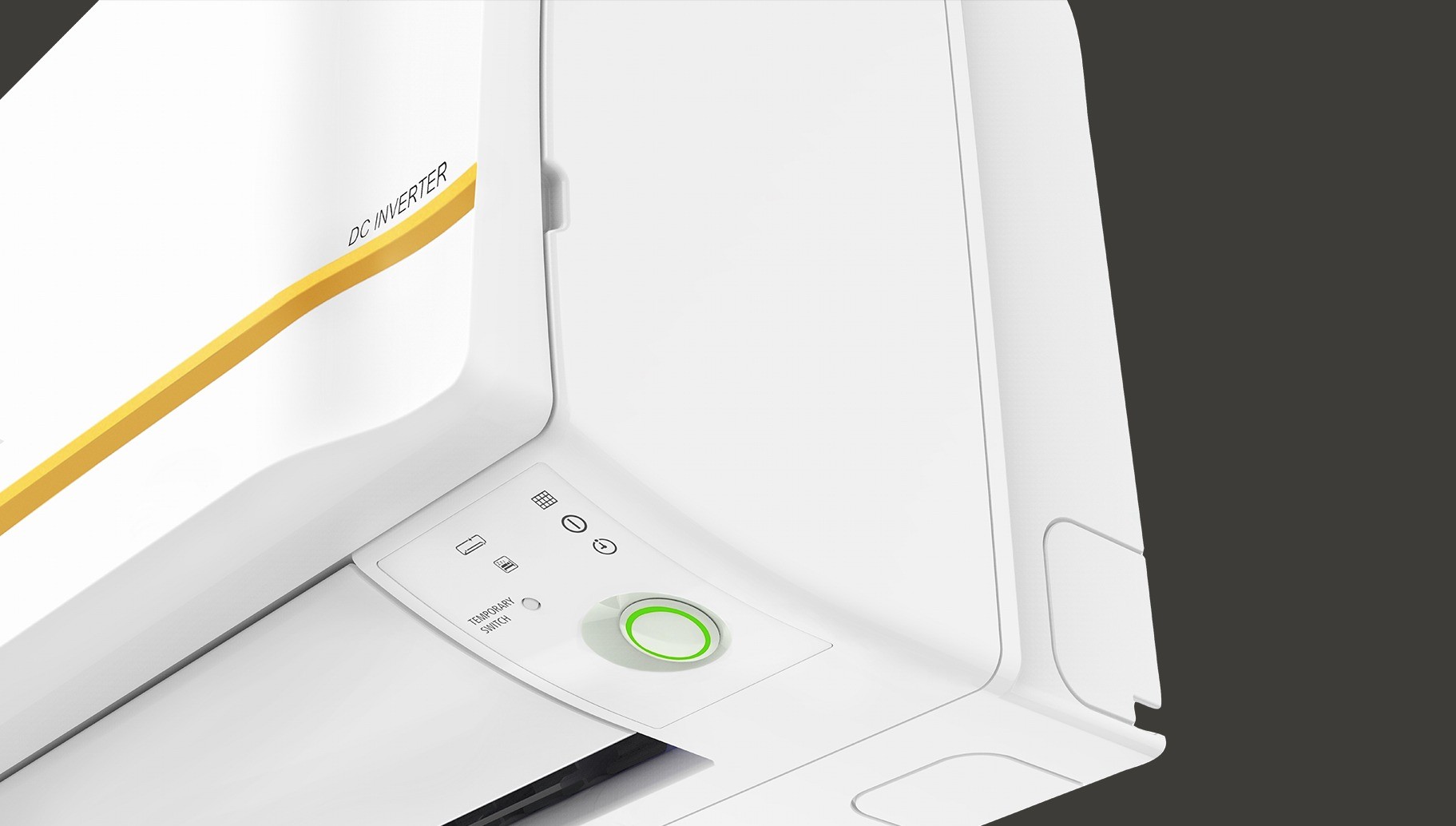

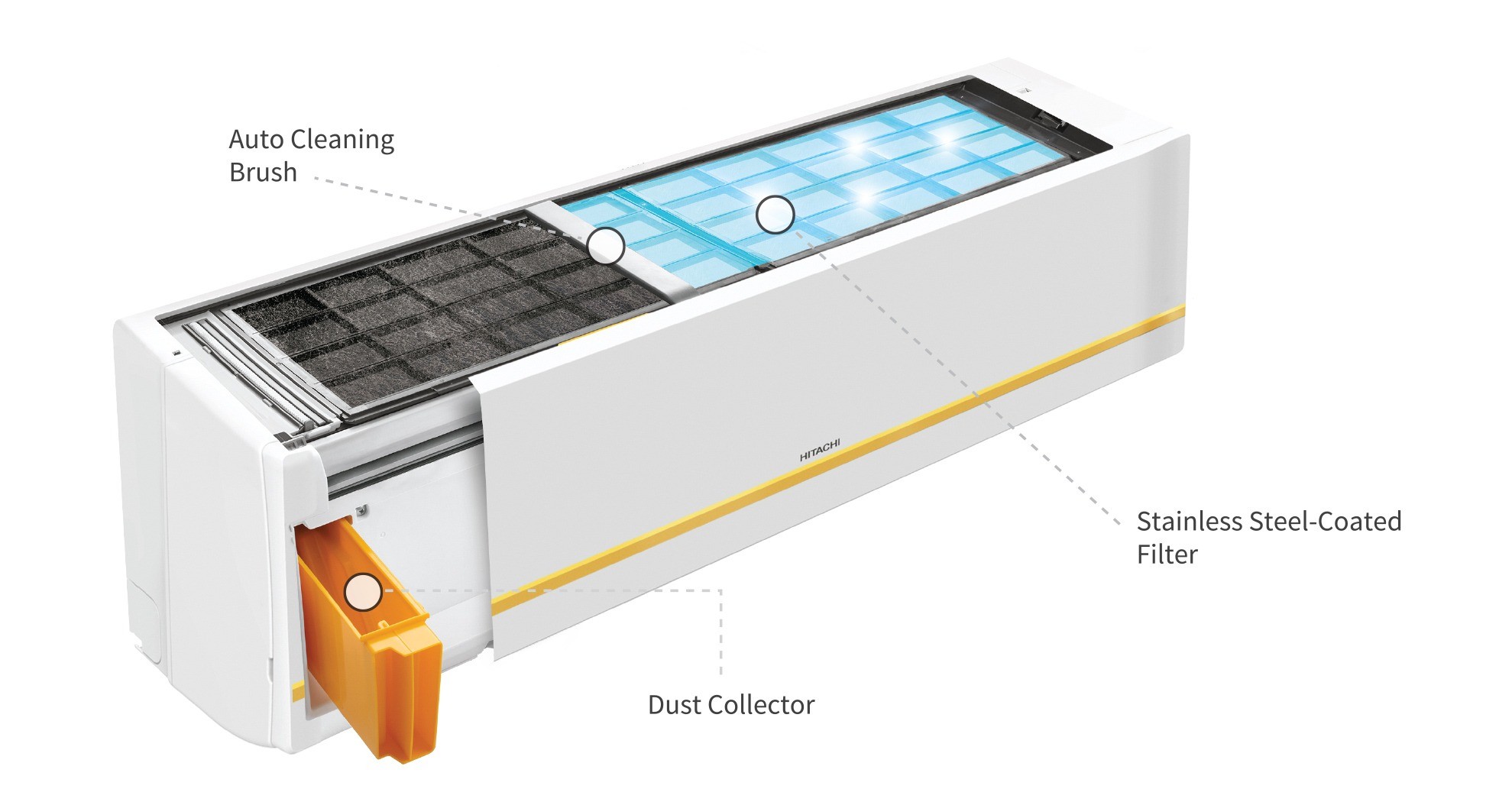

– iClean+ : Auto Filter Cleaning Technology

Shizen Inverter Air Conditioners Series_7
Shizen Inverter Air Conditioners Series_8

– How does iClean+ work?

Need not to worry about clogged filters and reduced performance anymore with Hitachi. Our iClean+, an Auto Filter Cleaning Technology cleans the filter automatically for you and also comes with stainless steel filter that does not let dust settle on it easily. The auto cleaning brush on the filter sweeps the dust away from the stainless steel filter and collects it in the dust collector box inside the ac. So, get clean air experience everytime with Hitachi AC.

Available in Shizen models:
Shizen 3300S
Shizen Inverter Air Conditioners Series_9

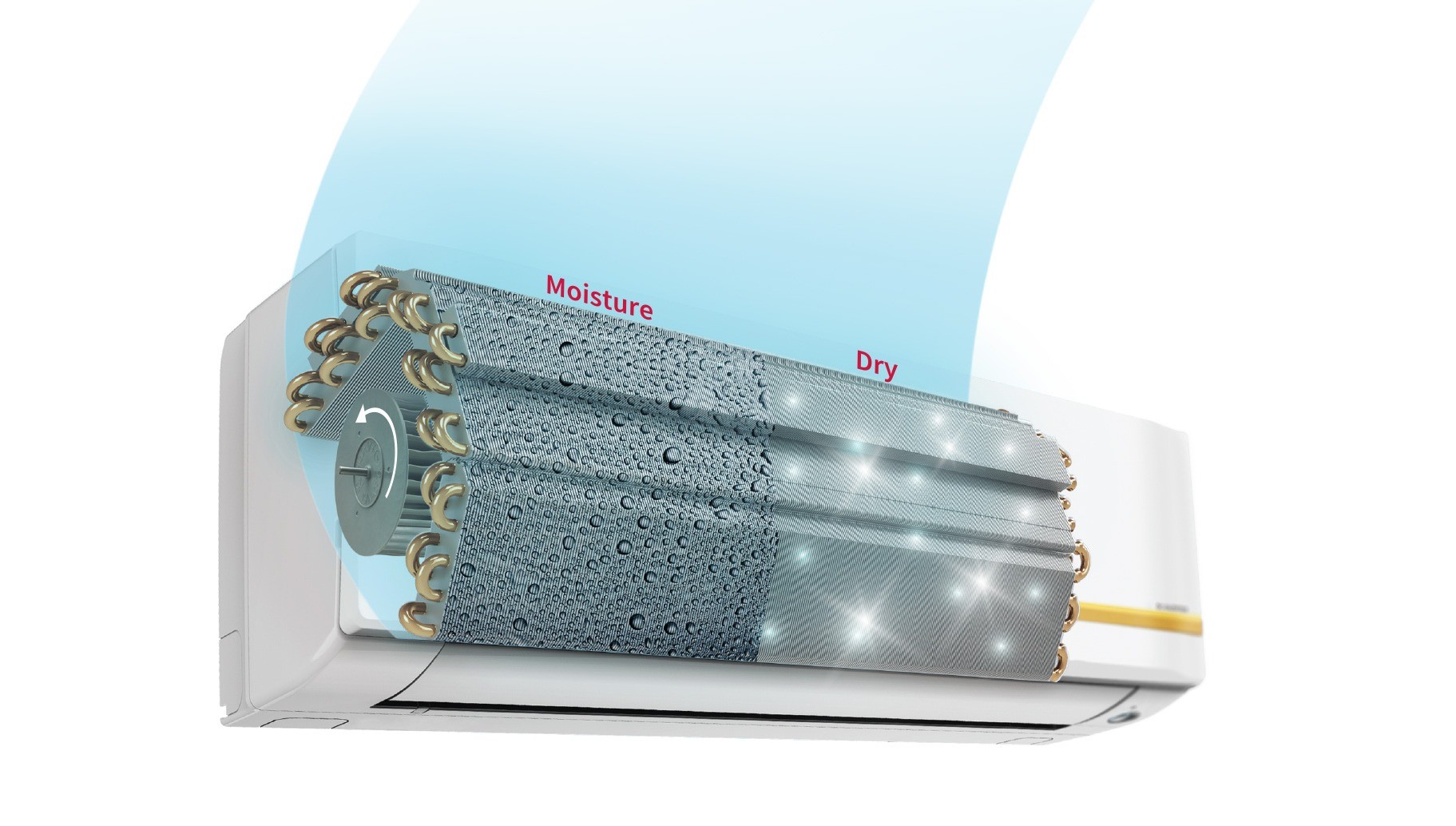

– Odour-free air : Auto Coil Dry Technology

Auto Coil Dry Technology keeps the indoor fan blower running for sometime on standby mode whenever the AC is switched off with remote controller. This dries up the evaporator coil and prevents accumulation of debris, dust and pollen, keeping the unit dry and clean to ensure Odour free air.

Available in Shizen models:
Shizen 3300S
Shizen 3200WS
Shizen 3100S
Shizen Inverter Air Conditioners Series_10

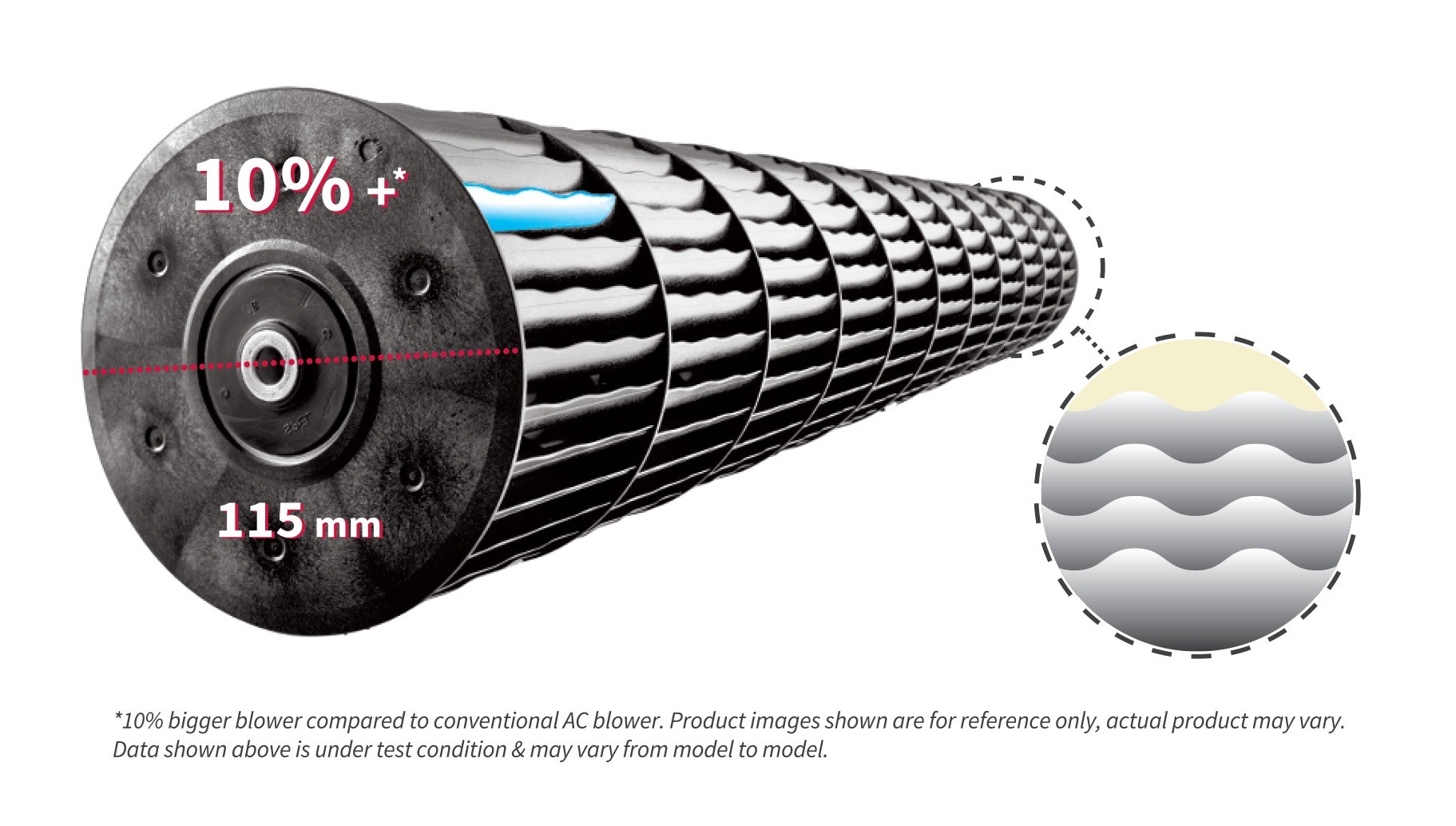

– Silent air : Wave Blade Design Technology

Unlike the conventional straight blades, our unique Sine Wave Blade Design and the bigger blower size, ensures air cutting noise reduction and far reaching maximum air volume. Enjoy the comfort of Silent air delivered by the quiet operation and larger air throw of Hitachi ACs.

Available in Shizen models:
Shizen 3300S
Shizen 3200WS
Shizen 3100S


Shizen Inverter Air Conditioners Series_11

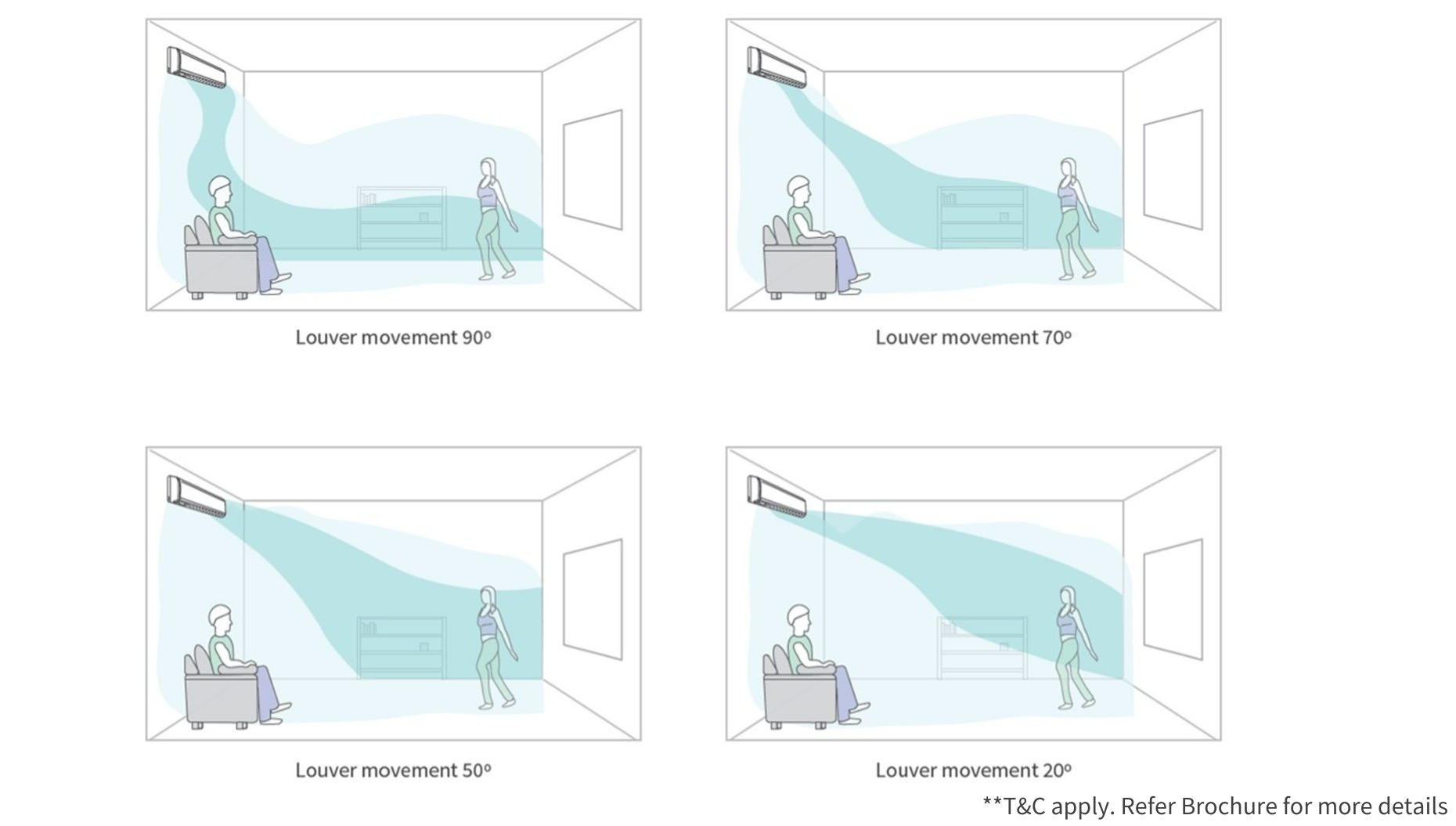

– Surround air : Wide Angle Movement

Feel the Surround air experience delivered by our Big Flow Deflector's far reaching and uniform cooling in every part of the room. While conventional AC units fail to cool the area directly beneath the AC unit, Big Flow Deflector's vertical air deflection ensures that not only the farthest corner of the room but also the area directly beneath the AC unit gets equal air volume. Thus minimizing the hot pockets in the room and cooling every corner of the room.

Available in Shizen models:
Shizen 3300S
Shizen 3200WS
Shizen 3100S
Shizen Inverter Air Conditioners Series_12

– iSense : Activity Sensor Technology

iSense with its Activity Sensor helps you to get sound sleep after a long day. Infrared Sensor regulates the room temperature according to person's active body movements. In case there are no active movements, the AC increases the room temperature by 1°C per hour for 2 hours.

Available in Shizen models:
Shizen 3300S

– Other Features

100% Cooling Capacity at 43°C
Penta Sensor
SuperSlit Fins
100% Inner Groover Copper Tube
Tropical Design
Stabiliser Free Operation

– Tech Data

SHIZEN

SHIZEN 3300S SHIZEN 3300S SHIZEN 3200WS SHIZEN 3200WS SHIZEN 3200WS SHIZEN 3100S SHIZEN 3100S SHIZEN 3100S SHIZEN 3100S
Details X Series
Model Number
Tonnage TR
Compressor Type / Refrigerant
Performance Rated Cooling (100 % load) BTU/Hr (Watts)
Maximum Cooling BTU/Hr (Watts)
Rated ISEER
Annual Power Consumption (As per BEE Norrms) (kWh)
Fan Speed No. of steps
Air Flow (IDU) (Cooling-Super High) CFM
Sound level *1 db
Electrical Rated Power Supply Volts / Hz / Phase
Rated Power Input Watts
Rated Current Drawn Amps
Aesthetic Iconic Wave
Ambience Light
air Technology Silent Air /odor free air/Surround air
iClean+ (Auto Filter Cleaning Technology)
Advanced Features airCloud Home -Wifi Enabled
iSense (Activity Sensor Technology)
4 Way Air Swing
Tropical Inverter
100% Cooling at 43 Degree Celcius
100% Inner Grooved Copper Tubes
Superslit Fins*2
Stabilizer Free Operation
Filter clean indicator
Penta Sensor
Stainless Steel Coated Filter
Superfine Mesh filter
Key Features On / Off Timer
Hydrophilic Fins (Indoor Unit)
Powerful Mode
One Touch Super Silent
Backlight Remote controller
Assurance Compressor Warranty 1 + 9 Years
Controller (PCB) Warranty 1 + 4 Years
Warranty on Entire Machine 1 Years
Dimensions Dimension (IDU) (WXHXD) mm
Dimension (ODU) (WXHXD) mm
Suction Line Diameter mm (Inches)
Liquid Line Diameter mm (Inches)
Net Weight IDU /ODU Kg
X Series
RSRG318IFEOZ1
1.5
Tropical Rotary / R32
18000 (5275)
18000 (5275)
3.95
1033.65
5
620
36
230/50/1
1826
8.35
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
997 X 294 X 253
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
13 / 26.6
X Series
RMRG324IFEOGZ1
2
Tropical Twin Rotary / R32
23885 (7000)
23885 (7000)
3.9
1388.08
5
620
38
230/50/1
2350
10.76
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
997 X 294 X 253
792 X 600 X 299
15.88 (5/8")
6.35 (1/4")
13/37
X Series
RAPGG312MFEOZ1
1
Tropical Rotary / R32
12000(3516)
12000(3516)
3.95
688.96
5
425
37
230/50/1
1180
5.46
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
798 X 295 X 239
658 X 530 X 274
9.53 (3/8")
6.35 (1/4")
8.5/24.8
X Series
RSQG318MFEOF
1.5
Tropical Rotary / R32
17400 (5100)
17400 (5100)
3.9
1012.3
5
530
36
230/50/1
1757
8.05
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
968 X 294 X 240
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
11.20 / 26.60
X Series
RMQG322MFEOZ1
1.8
Tropical Twin Rotary / R32
21500 (6300)
21500 (6300)
3.94
1236.39
5
583
38
230/50/1
2000
9.2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
968 X 294 X 240
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
11.2/37
RAPG312HFEOZ1
1
Tropical Rotary / R32
12000(3516)
12000(3516)
3.95
688.96
3
425
37
230/50/3
1180
5.46
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
798 X 295 X 239
658 X 530 X 274
9.53 (3/8")
6.35 (1/4")
8.5/24.8
RSQG318HFEOF
1.5
Tropical Rotary / R32
17400 (5100)
17400 (5100)
3.9
1012.3
3
530
36
230/50/1
1757
8.05
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
968 X 294 X 240
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
11.20 / 26.60
RMQG322HFEOZ1
1.8
Tropical Twin Rotary / R32
21500 (6300)
21500 (6300)
3.94
1236.39
3
583
38
230/50/1
2000
9.2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
968 X 294 X 240
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
11.2/37
RMRG324HFEOZ1
2
Tropical Twin Rotary / R32
23885 (7000)
23885 (7000)
3.9
1388.08
3
620
38
230/50/1
2350
10.76
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
997 X 294 X 253
792 X 600 X 299
15.88 (5/8")
6.35 (1/4")
13/37
Open table
Download PDF
Download PDF

– Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.

All downloads
– Where to buy
Learn more
– How can we help you?
Contact us

– Tech Data

SHIZEN

SHIZEN 3300S SHIZEN 3300S SHIZEN 3200WS SHIZEN 3200WS SHIZEN 3200WS SHIZEN 3100S SHIZEN 3100S SHIZEN 3100S SHIZEN 3100S
Details X Series
Model Number
Tonnage TR
Compressor Type / Refrigerant
Performance Rated Cooling (100 % load) BTU/Hr (Watts)
Maximum Cooling BTU/Hr (Watts)
Rated ISEER
Annual Power Consumption (As per BEE Norrms) (kWh)
Fan Speed No. of steps
Air Flow (IDU) (Cooling-Super High) CFM
Sound level *1 db
Electrical Rated Power Supply Volts / Hz / Phase
Rated Power Input Watts
Rated Current Drawn Amps
Aesthetic Iconic Wave
Ambience Light
air Technology Silent Air /odor free air/Surround air
iClean+ (Auto Filter Cleaning Technology)
Advanced Features airCloud Home -Wifi Enabled
iSense (Activity Sensor Technology)
4 Way Air Swing
Tropical Inverter
100% Cooling at 43 Degree Celcius
100% Inner Grooved Copper Tubes
Superslit Fins*2
Stabilizer Free Operation
Filter clean indicator
Penta Sensor
Stainless Steel Coated Filter
Superfine Mesh filter
Key Features On / Off Timer
Hydrophilic Fins (Indoor Unit)
Powerful Mode
One Touch Super Silent
Backlight Remote controller
Assurance Compressor Warranty 1 + 9 Years
Controller (PCB) Warranty 1 + 4 Years
Warranty on Entire Machine 1 Years
Dimensions Dimension (IDU) (WXHXD) mm
Dimension (ODU) (WXHXD) mm
Suction Line Diameter mm (Inches)
Liquid Line Diameter mm (Inches)
Net Weight IDU /ODU Kg
X Series
RSRG318IFEOZ1
1.5
Tropical Rotary / R32
18000 (5275)
18000 (5275)
3.95
1033.65
5
620
36
230/50/1
1826
8.35
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
997 X 294 X 253
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
13 / 26.6
X Series
RMRG324IFEOGZ1
2
Tropical Twin Rotary / R32
23885 (7000)
23885 (7000)
3.9
1388.08
5
620
38
230/50/1
2350
10.76
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
997 X 294 X 253
792 X 600 X 299
15.88 (5/8")
6.35 (1/4")
13/37
X Series
RAPGG312MFEOZ1
1
Tropical Rotary / R32
12000(3516)
12000(3516)
3.95
688.96
5
425
37
230/50/1
1180
5.46
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
798 X 295 X 239
658 X 530 X 274
9.53 (3/8")
6.35 (1/4")
8.5/24.8
X Series
RSQG318MFEOF
1.5
Tropical Rotary / R32
17400 (5100)
17400 (5100)
3.9
1012.3
5
530
36
230/50/1
1757
8.05
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
968 X 294 X 240
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
11.20 / 26.60
X Series
RMQG322MFEOZ1
1.8
Tropical Twin Rotary / R32
21500 (6300)
21500 (6300)
3.94
1236.39
5
583
38
230/50/1
2000
9.2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
968 X 294 X 240
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
11.2/37
RAPG312HFEOZ1
1
Tropical Rotary / R32
12000(3516)
12000(3516)
3.95
688.96
3
425
37
230/50/3
1180
5.46
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
798 X 295 X 239
658 X 530 X 274
9.53 (3/8")
6.35 (1/4")
8.5/24.8
RSQG318HFEOF
1.5
Tropical Rotary / R32
17400 (5100)
17400 (5100)
3.9
1012.3
3
530
36
230/50/1
1757
8.05
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
968 X 294 X 240
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
11.20 / 26.60
RMQG322HFEOZ1
1.8
Tropical Twin Rotary / R32
21500 (6300)
21500 (6300)
3.94
1236.39
3
583
38
230/50/1
2000
9.2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
968 X 294 X 240
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
11.2/37
RMRG324HFEOZ1
2
Tropical Twin Rotary / R32
23885 (7000)
23885 (7000)
3.9
1388.08
3
620
38
230/50/1
2350
10.76
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
997 X 294 X 253
792 X 600 X 299
15.88 (5/8")
6.35 (1/4")
13/37
Open table
Download PDF
Download PDF
Equipment
  • Cassette AC
  • Chillers
  • Ducted Air Conditioners
  • Ductless Air Conditioners
  • Fixed Speed Split AC
  • Hot & Cold AC
  • Inverter Split AC
  • Refrigerators
  • Ventilation
  • VRF Controllers
  • VRF Indoor Unit
  • VRF Outdoor Unit
  • Window AC
Useful links
  • E-Shop
  • Resources
  • About Us
  • Contact us
  • Hitachi Air Conditioner App
  • Magazine
  • Faqs
  • Sign in
  • Legal & Cookies Policies
  • Privacy Policy

© 2022 Johnson Controls - Hitachi Air Conditioning Company

Need help? Chat with us!
–
