  1. Hitachi
  2. Ranges
  3. Inverter Split AC
  4. Yugen Inverter Air Conditioners Series

– Yugen Inverter Air Conditioners Series

Yugen which means profound grace and subtlety, exceeds your expectations with its comfortable cooling and simplistic yet prime design.



  • TYPE​: Expandable Inverter Series​
  • STAR RATING​: 3 Star / 5 Star​
Yugen Inverter Air Conditioners Series_header
Yugen which means profound grace and subtlety, exceeds your expectations with its comfortable cooling and simplistic yet prime design.
Yugen Inverter Air Conditioners Series_0_0
Yugen Inverter Air Conditioners Series_0_1
1/2
Yugen Inverter Air Conditioners Series_1

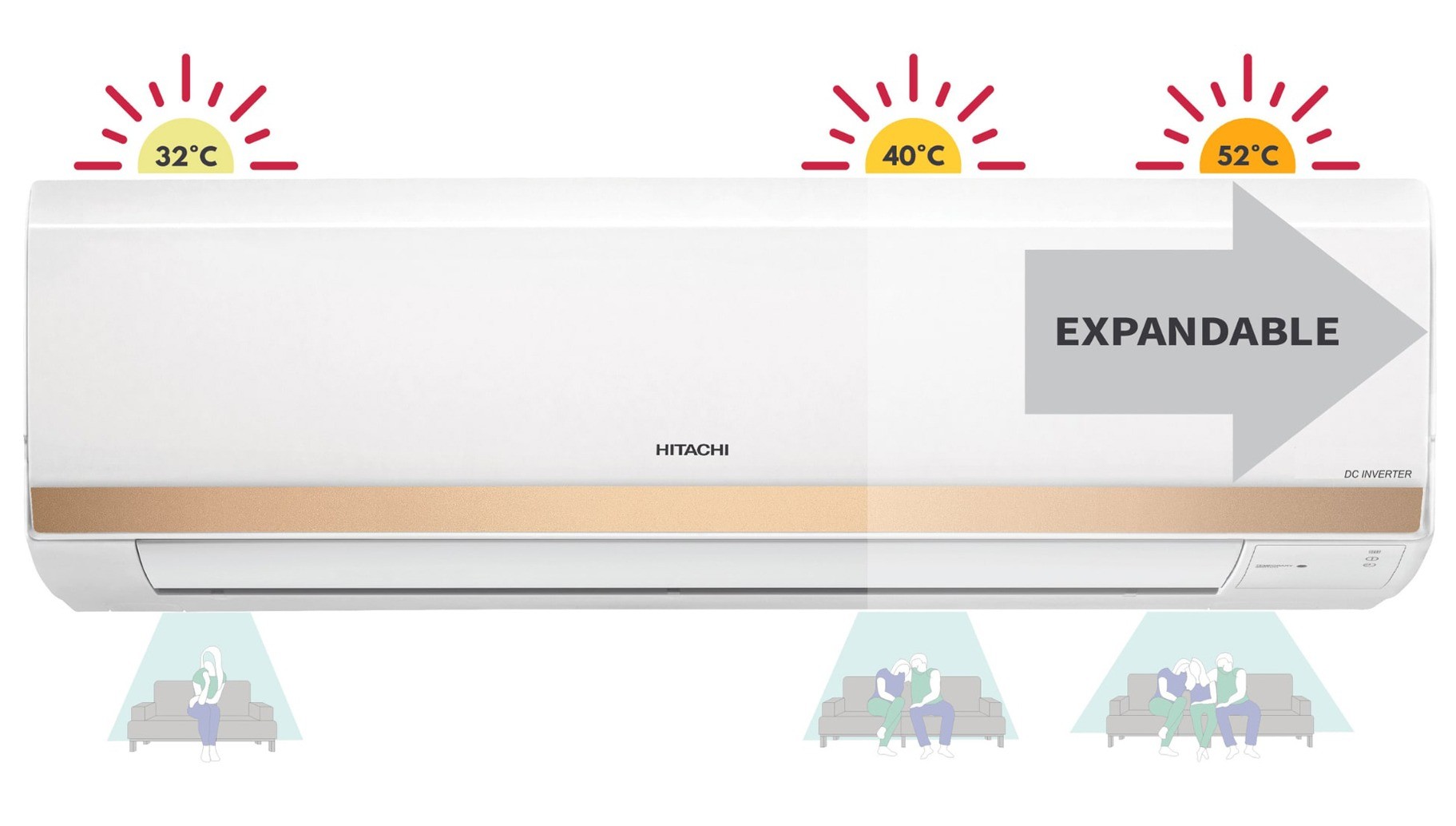

– Expandable Inverter Air Conditioners

Hitachi's 5 Star machine comes with unique expandable technology that expands its cooling capacity in adverse temperature conditions, it cuts down humidity level inside the room and achieves set temperature faster. This is an automatic smart technology where it senses the inside and outside ambient temperature continuously with help of penta sensors and increases or decreases its cooling capacity according to the requirement everytime. The compressor's rotation per minute (RPM) increases from standard rated RPM and the performance remains unaffected as compared to other air conditioners. The change in the speed of the machine is seamless with stepless compressor control hence you only feel the perfect temperature inside the room as needed.

Available in Yugen models:
Yugen 5100X
Yugen Inverter Air Conditioners Series_2

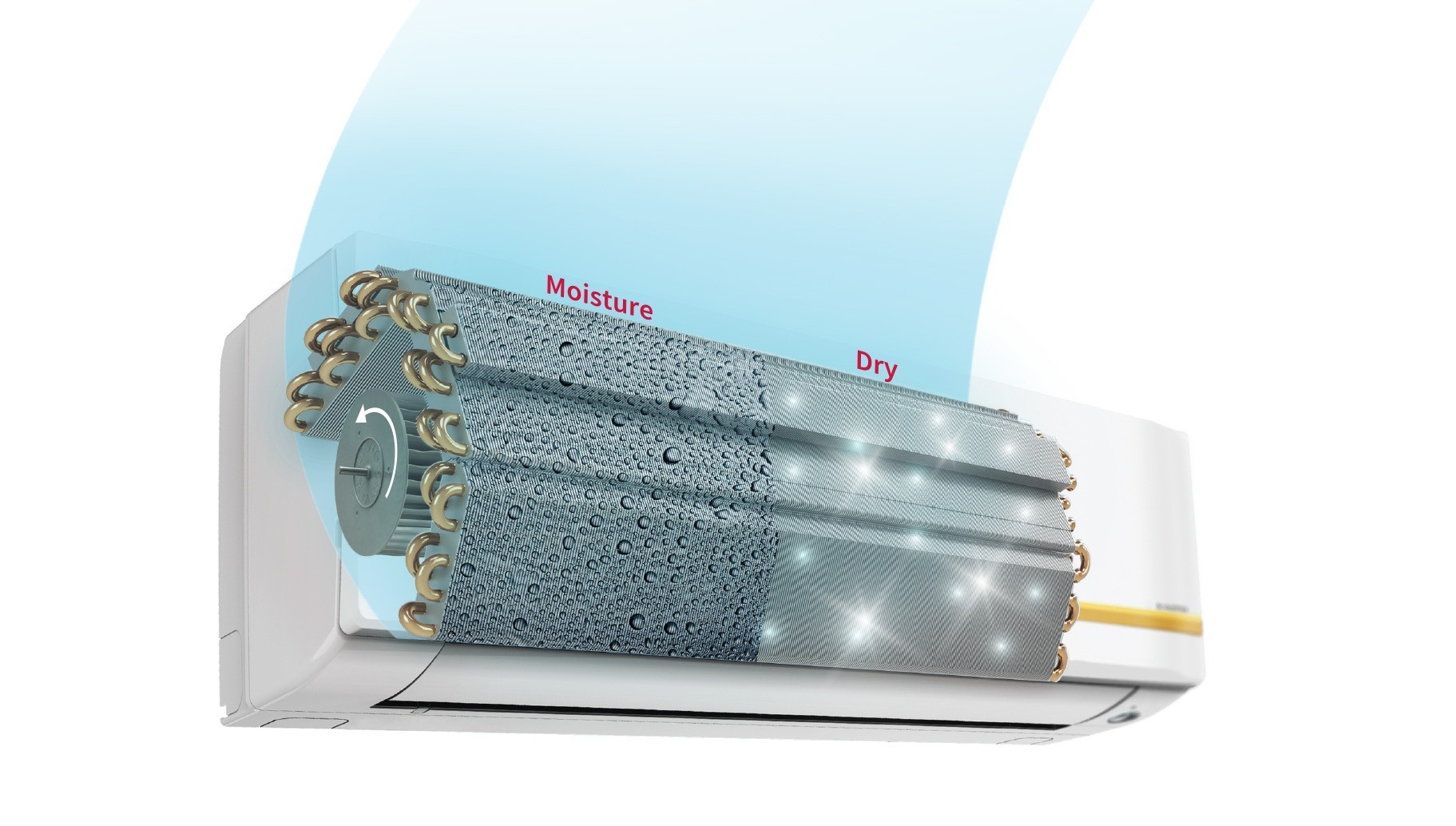

– Odour-free air : Auto Coil Dry Technology

Auto Coil Dry Technology keeps the indoor fan blower running for sometime on standby mode whenever the AC is switched off with remote controller. This dries up the evaporator coil and prevents accumulation of debris, dust and pollen, keeping the unit dry and clean to ensure Odour free air.

Available in Yugen models:
Yugen 5100X
Yugen 3100S
Yugen Inverter Air Conditioners Series_3

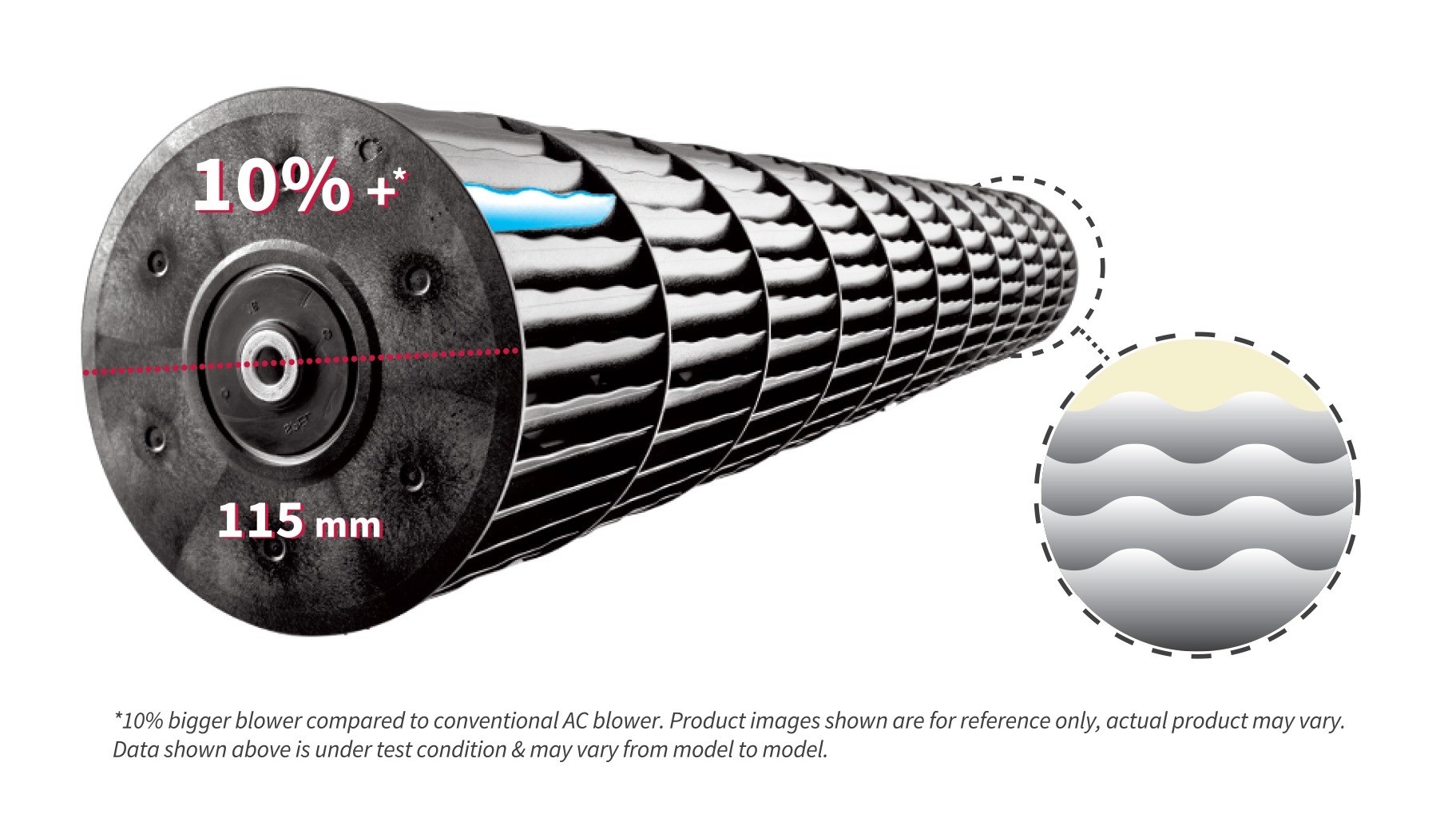

– Silent air : Wave Blade Design Technology

Unlike the conventional straight blades, our unique Sine Wave Blade Design and the bigger blower size, ensures air cutting noise reduction and far reaching maximum air volume. Enjoy the comfort of Silent air delivered by the quiet operation and larger air throw of Hitachi ACs.
Yugen Inverter Air Conditioners Series_4

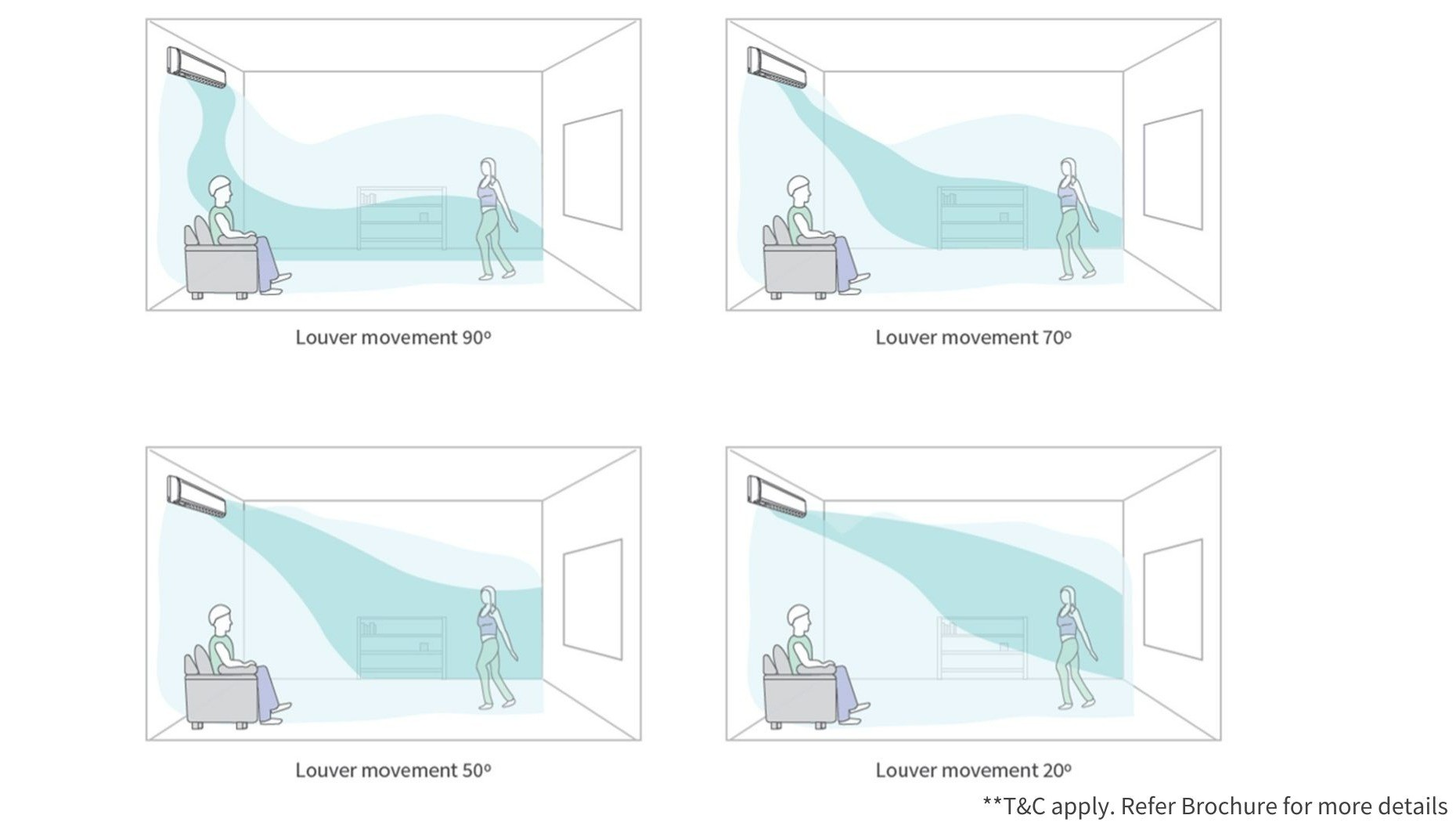

– Surround air : Wide Angle Movement

Feel the Surround air experience delivered by our Big Flow Deflector's far reaching and uniform cooling in every part of the room. While conventional AC units fail to cool the area directly beneath the AC unit, Big Flow Deflector's vertical air deflection ensures that not only the farthest corner of the room but also the area directly beneath the AC unit gets equal air volume. Thus minimizing the hot pockets in the room and cooling every corner of the room.

Available in Yugen models:
Yugen 5100X
Yugen 3100S
Yugen Inverter Air Conditioners Series_5

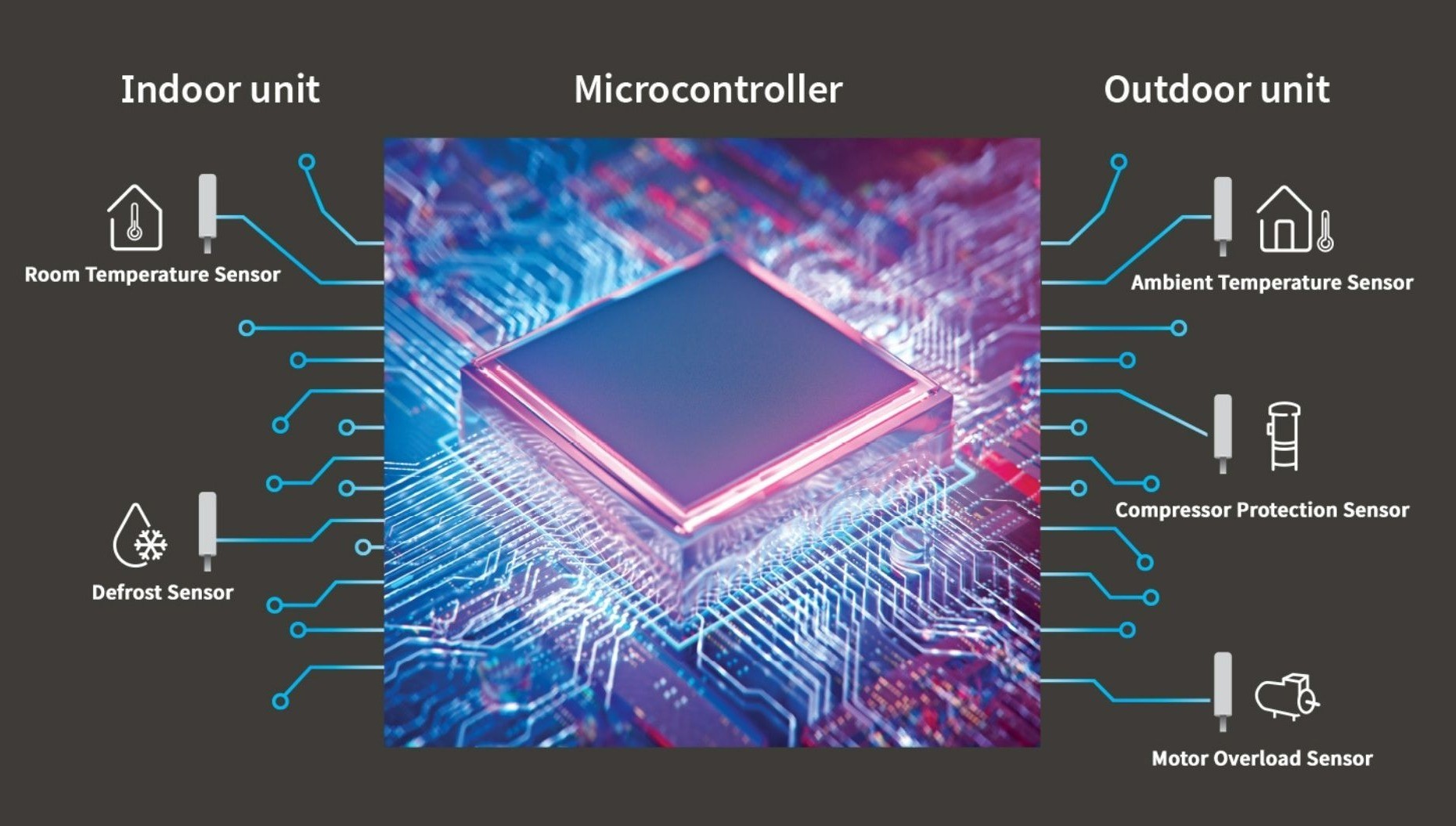

– Penta Sensor

Hitachi's intelligent Penta sensor technology with its advanced microcontroller offers perfect cooling even in extreme summer conditions, optimises cooling in load variation and protects critical components of the AC. The microcontroller connects 5 different sensors inside the AC, 2 sensors in Indoor Unit (Room Temperature Sensor and Defrost Sensor) and 3 Sensors in the Outdoor Unit (Ambient Temperature Sensor, Compressor Protection Sensor and Motor Overload Sensor). All 5 sensors communicate to provide perfect cooling temperature inside the room effortlessly and continuously.

Available in Yugen models:
Yugen 5100X
Yugen 3100S
Yugen Inverter Air Conditioners Series_6

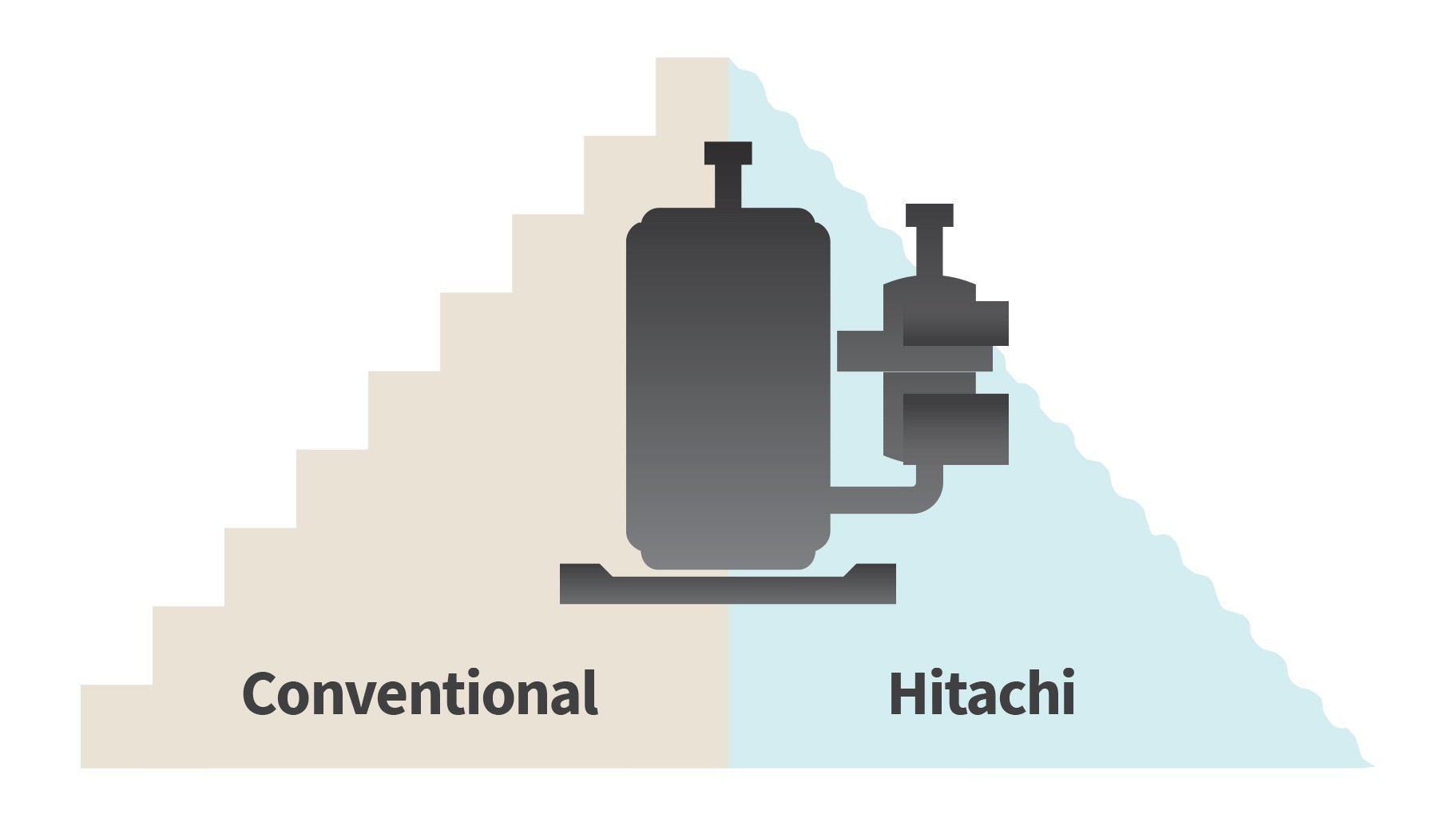

– Stepless Compressor Control

Stepless compressor control is our hero behind the smooth and uninterrupted functioning of Hitachi AC, it makes sure that AC offers optimised cooling automatically seamlessly all time. The specially designed advanced microcontroller checks the indoor and outdoor conditions and varies compressor speed seamlessly, thus offering the cooling experience you need.

Available in Yugen models:
Yugen 5100X
Yugen 3100S
Yugen Inverter Air Conditioners Series_7

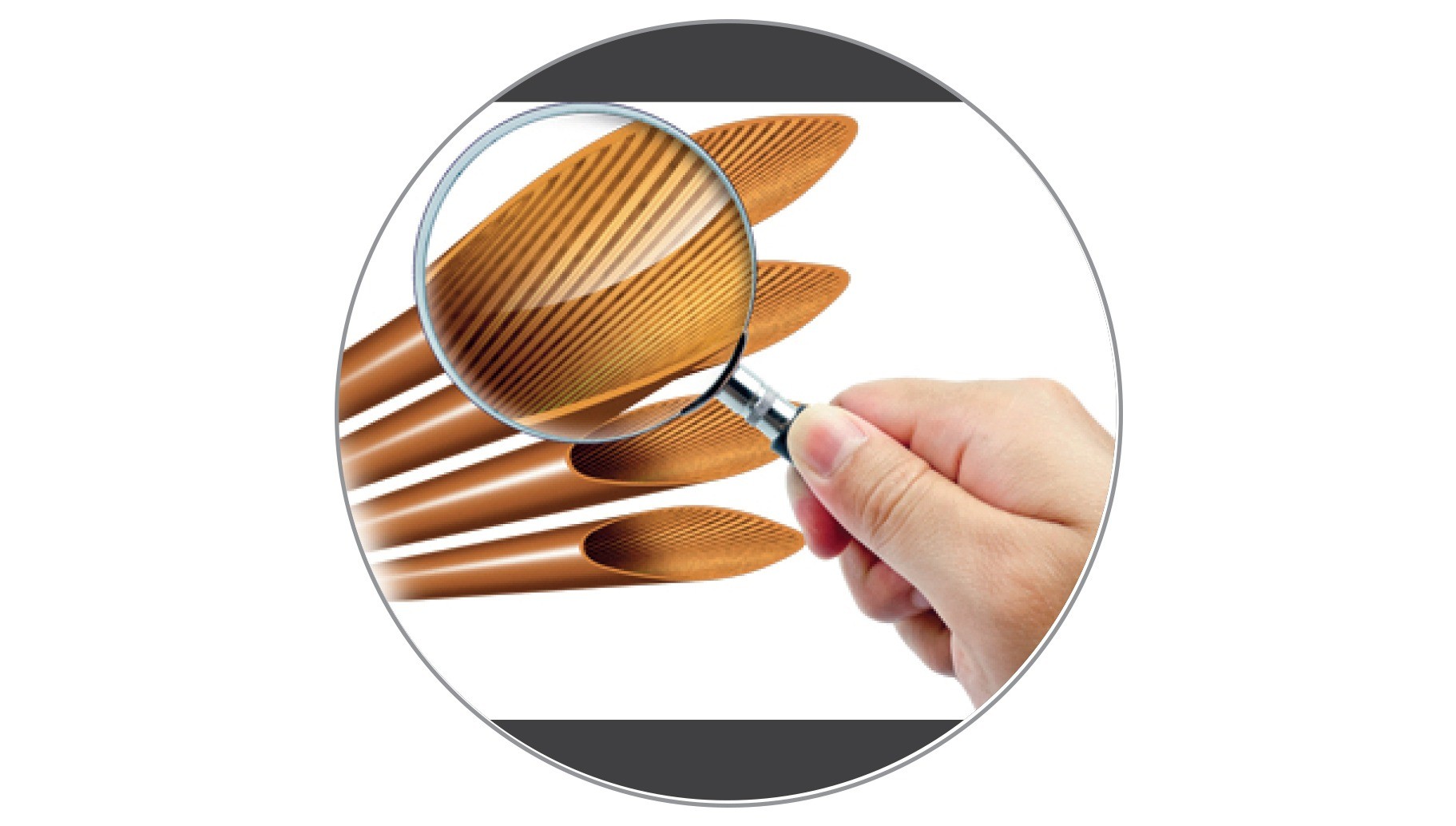

– 100% Inner Grooved Copper

Hitachi's 100% Inner Grooved Copper ensures faster cooling with its turbulent refrigerant flow that enhances heat transfer rate. The refrigerant pipe is in constant contact with air which can lead to oxidation or corrosion and there is where copper stays unaffected for longer periods and thus enhances the lifespan of the air conditioner.

Available in Yugen models:
Yugen 5100X
Yugen 3100S
Yugen Inverter Air Conditioners Series_8

– 43 Quality Tests

Have the benefit of a reliable product that passes all the rigorous factory tests. Tried and tested through selected exhaustive evaluation processes, Hitachi ACs are the most reliable machines for your home.Bring home a finely engineered air conditioner, bring home a Hitachi AC.

Available in Yugen models:
Yugen 5100X
Yugen 3100S

– Other Features

100% Cooling Capacity at 43°C
Penta Sensor
SuperSlit Fins
100% Inner Grooved Copper Tube
Tropical Design
Stabiliser Free Operation



– Tech Data

YUGEN

YUGEN 5100X YUGEN 5100X YUGEN 5100X YUGEN 3100S YUGEN 3100S YUGEN 3100S YUGEN 3100S
Details X Series
Model Number
Star Rating
Tonnage TR
Compressor Type / Refrigerant
Performance Rated Cooling (100 % load) BTU/Hr (Watts)
Maximum Cooling BTU/Hr (Watts)
Rated ISEER
Annual Power Consumption (As per BEE Norrms) (kWh)
Air Flow (IDU) (Cooling-Super High) CFM
Sound level *1 db
Electrical Rated Power Supply Volts / Hz / Phase
Rated Power Input Watts
Rated Current Drawn Amps
Assurance Compressor Warranty 5 + 5 Years
Controller (PCB) Warranty 1 + 4 Years
Warranty on Entire Machine 1 Year
Dimensions Dimension (IDU) (WXHXD) mm
Dimension (ODU) (WXHXD) mm
Suction Line Diameter mm (Inches)
Liquid Line Diameter mm (Inches)
Net Weight IDU /ODU Kg
-
RAFG512HFEOZ1
5
1
Tropical Rotary / R32
12000 (3516)
12600 (3700)
4.65
585.85
425
36
230/50/1
965
4.42
Yes
Yes
Yes
798 X 295 X 239
658 X 530 X 274
9.53 (3/8")
6.35 (1/4")
9.50 / 26.00
-
RSOG518HFEOZ1
5
1.5
Tropical Rotary / R32
18000 (5275)
19000 (5568)
4.55
897.84
620
36
230/50/1
1540
7.05
Yes
Yes
Yes
997 X 294 X 253
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
13.00 / 30.80
-
RMOG524HEEA
5
2
Tropical Twin Rotary / R410a
24000 (7034)
26100 (7650)
4.7
1158.94
620
37
230/50/1
2070
9.5
Yes
Yes
Yes
997 x 294 x 253
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
13.00 / 46.00
-
RAFG312HFEOZ1
3
1
Tropical Rotary / R32
12000(3516)
12000(3516)
3.95
688.96
425
37
230/50/1
1180
5.46
Yes
Yes
Yes
798 X 295 X 239
658 X 530 X 274
9.53 (3/8")
6.35 (1/4")
8.5/24.8
-
RSNG318HFEOZ1
3
1.5
Tropical Rotary / R32
17400 (5100)
17400 (5100)
3.6
1098.1
530
36
230/50/1
1845
8.44
Yes
Yes
Yes
968 X 294 X 240
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
11.20 / 28.50
-
RMNG322HFEOZ1
3
1.8
Tropical Twin Rotary / R32
21500 (6300)
21500 (6300)
3.94
1236.39
583
38
230/50/1
2000
9.2
Yes
Yes
Yes
968 X 294 X 240
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
11.00/39.00
-
RMOG324HFEOZ1
3
2
Tropical Twin Rotary / R32
23885 (7000)
23885 (7000)
3.9
1388.08
620
38
230/50/1
2350
10.76
Yes
Yes
Yes
997 X 294 X 253
792 X 600 X 299
15.88 (5/8")
6.35 (1/4")
12.00/39.00
Open table
Download PDF
Download PDF

– Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.

All downloads
– Where to buy
Learn more
– How can we help you?
Contact us

– Tech Data

YUGEN

YUGEN 5100X YUGEN 5100X YUGEN 5100X YUGEN 3100S YUGEN 3100S YUGEN 3100S YUGEN 3100S
Details X Series
Model Number
Star Rating
Tonnage TR
Compressor Type / Refrigerant
Performance Rated Cooling (100 % load) BTU/Hr (Watts)
Maximum Cooling BTU/Hr (Watts)
Rated ISEER
Annual Power Consumption (As per BEE Norrms) (kWh)
Air Flow (IDU) (Cooling-Super High) CFM
Sound level *1 db
Electrical Rated Power Supply Volts / Hz / Phase
Rated Power Input Watts
Rated Current Drawn Amps
Assurance Compressor Warranty 5 + 5 Years
Controller (PCB) Warranty 1 + 4 Years
Warranty on Entire Machine 1 Year
Dimensions Dimension (IDU) (WXHXD) mm
Dimension (ODU) (WXHXD) mm
Suction Line Diameter mm (Inches)
Liquid Line Diameter mm (Inches)
Net Weight IDU /ODU Kg
-
RAFG512HFEOZ1
5
1
Tropical Rotary / R32
12000 (3516)
12600 (3700)
4.65
585.85
425
36
230/50/1
965
4.42
Yes
Yes
Yes
798 X 295 X 239
658 X 530 X 274
9.53 (3/8")
6.35 (1/4")
9.50 / 26.00
-
RSOG518HFEOZ1
5
1.5
Tropical Rotary / R32
18000 (5275)
19000 (5568)
4.55
897.84
620
36
230/50/1
1540
7.05
Yes
Yes
Yes
997 X 294 X 253
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
13.00 / 30.80
-
RMOG524HEEA
5
2
Tropical Twin Rotary / R410a
24000 (7034)
26100 (7650)
4.7
1158.94
620
37
230/50/1
2070
9.5
Yes
Yes
Yes
997 x 294 x 253
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
13.00 / 46.00
-
RAFG312HFEOZ1
3
1
Tropical Rotary / R32
12000(3516)
12000(3516)
3.95
688.96
425
37
230/50/1
1180
5.46
Yes
Yes
Yes
798 X 295 X 239
658 X 530 X 274
9.53 (3/8")
6.35 (1/4")
8.5/24.8
-
RSNG318HFEOZ1
3
1.5
Tropical Rotary / R32
17400 (5100)
17400 (5100)
3.6
1098.1
530
36
230/50/1
1845
8.44
Yes
Yes
Yes
968 X 294 X 240
750 X 548 X 288
12.7 (1/2")
6.35 (1/4")
11.20 / 28.50
-
RMNG322HFEOZ1
3
1.8
Tropical Twin Rotary / R32
21500 (6300)
21500 (6300)
3.94
1236.39
583
38
230/50/1
2000
9.2
Yes
Yes
Yes
968 X 294 X 240
792 X 600 X 299
15.878 (5/8")
6.35 (1/4")
11.00/39.00
-
RMOG324HFEOZ1
3
2
Tropical Twin Rotary / R32
23885 (7000)
23885 (7000)
3.9
1388.08
620
38
230/50/1
2350
10.76
Yes
Yes
Yes
997 X 294 X 253
792 X 600 X 299
15.88 (5/8")
6.35 (1/4")
12.00/39.00
Open table
Download PDF
Download PDF
Equipment
  • Cassette AC
  • Chillers
  • Ducted Air Conditioners
  • Ductless Air Conditioners
  • Fixed Speed Split AC
  • Hot & Cold AC
  • Inverter Split AC
  • Refrigerators
  • Ventilation
  • VRF Controllers
  • VRF Indoor Unit
  • VRF Outdoor Unit
  • Window AC
Useful links
  • E-Shop
  • Resources
  • About Us
  • Contact us
  • Hitachi Air Conditioner App
  • Magazine
  • Faqs
  • Sign in
  • Legal & Cookies Policies
  • Privacy Policy

© 2022 Johnson Controls - Hitachi Air Conditioning Company

Need help? Chat with us!
–
