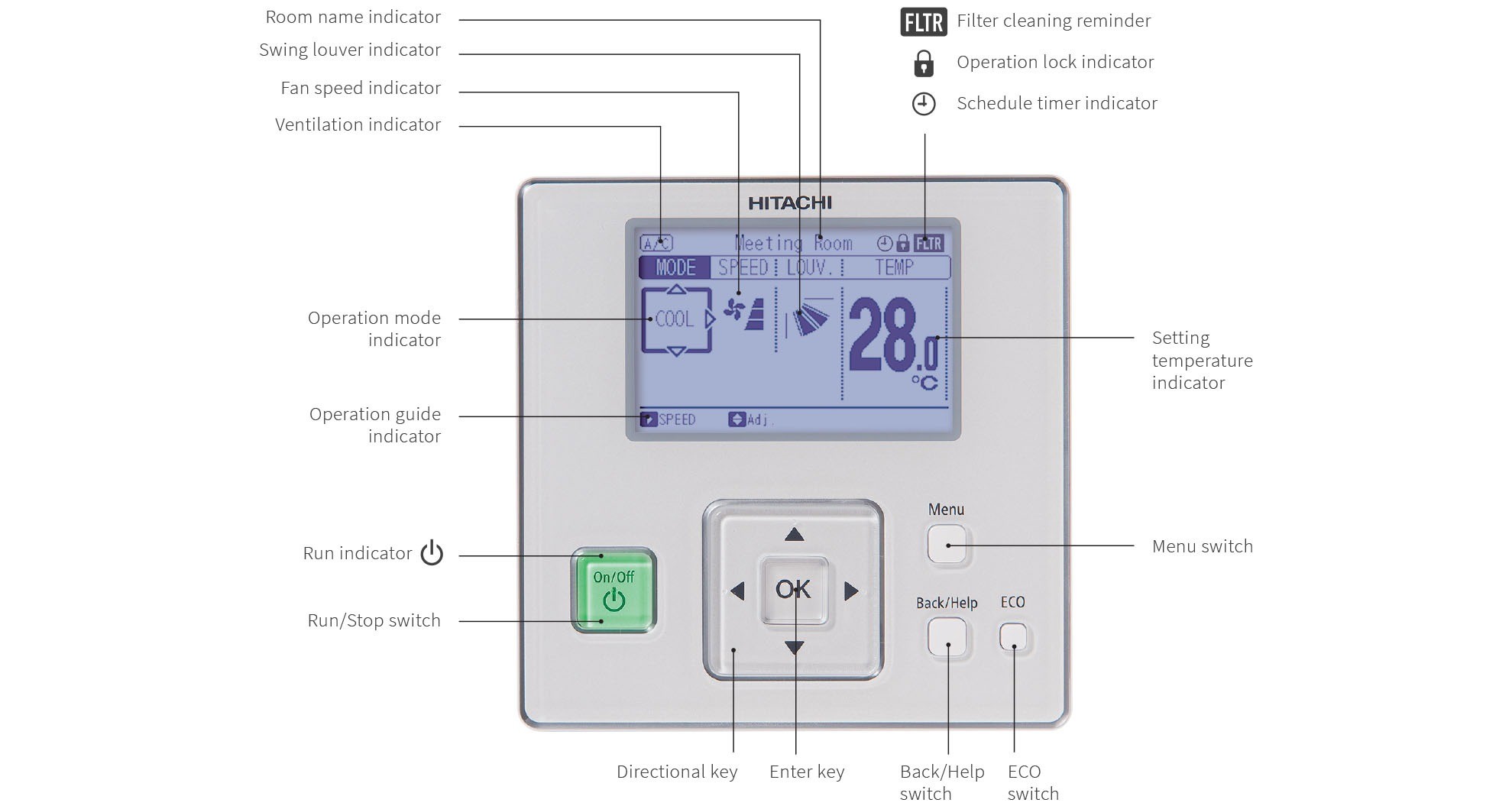

– Advanced Wired Remote Controller
– Outer dimensions (H×W×D)
– Functions
1. Setting
✦ Run/Stop
✦ Operation Mode
✦ Auto Mode Setting
✦ Temperature Setting
✦ Temperature Setting Rate 0.5°C/1.0°C/1.0°F
✦ Fan Speed 3/4/6 Taps
✦ Louver Direction
✦ Individual Louver Setting
✦ Remote Control Primary-Secondary Setting
✦ In Use of
✦ Total-Heat-
✦ Exchanger
✦ Ventilation
✦ Total Heal Exchanger Setting
✦ Function Selection
✦✦ Automatic Restart with Eco-operation
✦✦ Automatic Reset Temperature (Cooling)
✦✦ Temperature Indication
2. Service
✦ Filter Signal
✦ Filter Signal Reset
✦ Louver Open/Close
✦ Room Name Setting
✦ Alarm Sign
3. Screen
✦ Screen Adjustment
✦ Language
✦ Temperature Unit °C /°F
✦ Adjusting Brightness of Run Indicator
4. Check Menu
✦ Sensor Condition Check
✦ Sensor Data Check
✦ Model Display
✦ Indoor/Outdoor PCB Check
✦ Self Checking
✦ Alarm History Display
5. Test Run
✦ Test Run
✦ Function Selection (Optional Function Setting)
✦ Thermistor Selection
✦ Input/Output Setting
✦ Indoor Unit Address Change
✦ Indoor Unit Address Checking Operation
✦ Indoor Unit Address Initialization
✦ Input-Output Setting Initialization
✦ Compressor Pre-Heat Control Cancellation
✦ Contact Information Registration
6. Management
✦ Operation Lock/Set
✦ Main/Sub Control
✦ Built-in-Timer (On/Off)
✦ Adjusting Date/Time Setting
✦ Thermometer Indication
7. Power-Saving
✦ With Motion Sensor Kit
✦ ODU Capacity Control
- Peak-cut Control
- Moderate Control
✦ Indoor Unit Rotation Control
✦ Automatic Fan Operation
✦ Auto Recovery of Temperature
✦ Lower Limit for Cooling Operation
✦ Power Consumption Visualization
8. Schedule
✦ Weekly Schedule
✦ Set Timer Operation Times (per day): 5
✦ Holiday Setting
✦ Schedule On/Off
✦ ODU Noise Reduction Schedule
