Top Flow VRF Heat Pump Type air365 Max

– Top Flow VRF Heat Pump Type air365 Max

For HVAC professionals & building owners looking for a modern HVAC solution that's cost efficient and adaptable, air365 Max is an end-to-end solution that’s easy to work with, offering incredible energy efficiency and seamless comfort for users.

– Best in class HVAC efficiency

Offers significant improvements in energy consumption thanks to the high Cooling EER up to 5.50 and Heating COP up to 5.12. As VRF systems operate most of the time under part load conditions, (at 50% or less of full capacity), air365 Max features SmoothDrive 2.0. This unique technology controls the output of the VRF system by precisely controlling the compressor speed and measuring the gap in room vs set temperature with an accuracy of 0.1C. This reduces wear and tear on the compressor by reducing compressor start/stop events, improves temperature stability, and reduces energy consumption at part load by up to 39% (1).

Top Flow VRF Heat Pump Type air365 Max_1

– VRF that is easy to work with

A complete solution that saves time and money at every stage of your project, from Design to Maintenance. Our complete ecosystem of indoor & outdoor units, smart apps and hardware features work together as a complete solution.
Highlights include…
- Design VRF systems using fewer outdoor units with single unit capacity up to 28HP and 200% indoor unit connection capacity

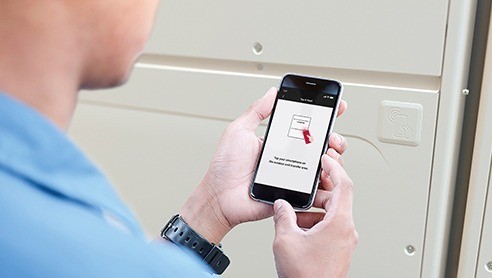

- Engineers can configure VRF outdoor units up to 4X faster using the airCloud Tap application(2). Simply tap a smart phone near an outdoor unit or wired controller to access more than 200 setting parameters via NFC. For complex installations settings may be copy-pasted to multiple units in just a few clicks.

Top Flow VRF Heat Pump Type air365 Max_2

– Seamless comfort

Seamless comfort for building occupants, anywhere, anytime. Solves common problems of HVAC solutions including unstable temperatures, cold or hot drafts, direct air, hot and cold rooms during season changes, and more.
- Constant indoor temperature even during part-load operation with SmoothDrive 2.0
- Original & leading-edge technology including GentleCool and CrowdSense, for enhanced occupant comfort
- Neighborhood-friendly outdoor unit with 3dB(A) lower noise output on average (Night Shift mode)
- Purifying your indoor air with our affordable IAQ solutions including ViroSense filters and the AQtiv-Ion ionizer kit

Top Flow VRF Heat Pump Type air365 Max_3

– Tech behind the VRF unit

We remain true to our legacy of fine Japanese design and engineering. Every Hitachi Cooling & Heating system is designed to perform reliably & efficiently with innovative technology that sets the benchmark for the industry.

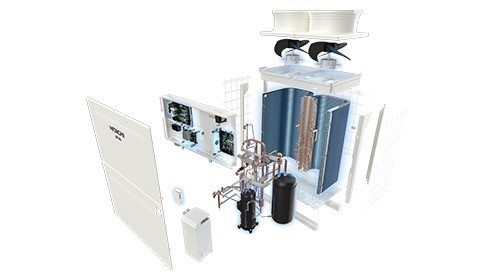

- Unique Heat Exchanger Design: proprietary sigma-shaped (Σ) heat exchanger that features a new 3-way path structure which expands the heat-transfer area and efficiency, and contains around 6000 aluminum fins and 350 copper tubes
- Gas injection scroll compressor: Driven by a DC inverter motor and can operate in tiny increments of 0.1Hz, leading to a wider outdoor unit operating temperature range & better efficiency.

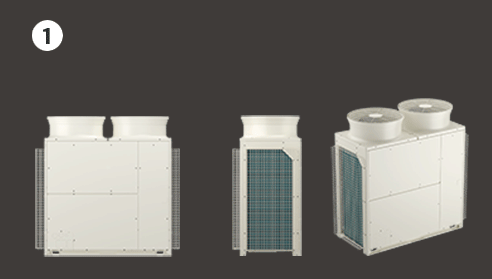

Top Flow VRF Heat Pump Type air365 Max_4

– HVAC solutions for specialist needs

A series of optional accessories for outdoor units ensure reliable operation even in extreme weather or marine environments.
- Protection net: for locations where there occupants or passers-by may be near the outdoor units
- Air outlet duct kit: air from the fan-outlet can be directed at a certain angle to avoid obstacles or other equipment
- Snow protection hood: protects against heavy snowfalls ensuring you can run in cooling mode even if outdoor temperatures fall to -10C. In heating mode it can operate even without a snow protection hood down to ambient temperatures of -25C

Notes

<Testing Condition> (at Cooling Operation, Load Factor: Approx. 33%). Without SmoothDrive; average power consumption 2.46kW. With SmoothDrive; average power consumption 1.49kW. VRF ODU:(RAS-AP280DG3 = RAS-10FSNS). VRF IDU: 4-way cassette indoor units (RCI-AP140K5 = RCI-5.0FSRP). Indoor Unit Inlet Temperature: 27°C (Dry Bulb) / 19°C (Wet Bulb). Ambient Temperature at Air Volume “High”: 23°C (Dry Bulb). Piping Length between Indoor Unit and Outdoor Unit: 15m. Testing Location: Environment Testing Facility at Kansai Denryoku.
Conventional way to open and close the cover and manipulate dip/power switch takes 40min 40sec. By using airCloud Tap without opening the cabinets: takes 9min 40 sec. [Simulation scenario] total 4 ODUs initial setting. total 5 items setup; ODU number, Refrigerant cycle number, Higher ESP setting, Power Supply setting, and Compressor manual-off setting.
Simulation condition; Comparison between Single 8~28HP class (tier 2) under Total piping length; 120m + 95% connection ratio.
Comparison of a system equivalent to 10HP class (28.0kW) [RAS-FSN Hitachi inverter VRF of 15years ago] vs [air365 Max RAS-HNCC]. Both simulation of Seasonal power consumption & CO2 emissions are a trial calculation value based on JIS B 8616: 2015 (Tokyo office). (cooling: Apr-19 to Nov-11)(Heating Dec-3 to Mar-15) (District; Tokyo) (Application: Office) (AC usage: 6days per week, 8am to 8pm). The CO2 emissions coefficient is 0.441 kg-CO2 /kWh. Based on Electric Power Industry Council for a Low Carbon Society in FY20.
Previous generation VRF defrosting occurs every 120min in heating mode. air365 Max only needs to perform defrosting every 250mins.

– Other Benefits

Top Flow VRF Heat Pump Type air365 Max_benefits

EER

Original Sigma-shaped heat exchanger with its patented path structure and gas injection scroll compressor enable best-in-class VRF energy efficiency up to EER 5.50

Energy consumption at part-load

Thanks to our original direct capacity control technology SmoothDrive, energy consumption can be reduced by up to 39% during part-load operation (when the system is running at 50% or less of its capacity) (1)

Refrigerant quantity

Compared with our previous generation VRF product, air365 Max uses 10% less refrigerant on average, helping to reduce environmental impact and maintenance costs (3)

Carbon footprint

Our technology is improving every year. Replace outdated HVAC solutions and achieve a 47% reduction in energy consumption and carbon footprint compared to a typical VRF unit purchased 15years ago (4)

Indoor unit connection ratio

Lower purchase costs with up to 200% indoor unit to outdoor unit connection ratio.

Faster configuration

Engineers can configure VRF units 4X faster using the airCloud Tap app. Simply tap a smartphone near an outdoor unit to access more than 200 setting parameters via NFC. For complex installations settings may be copy-pasted to multiple units (2).

Oil return operation

Our patented oil return control cycle activates just 60sec (cooling mode) every hour, which can ensure greater reliability and a continuous indoor balanced environment.
