– RAD Ducted Heat Pumps
RAD Ducted Heat Pumps
– RAD Ducted Heat Pumps
RAD Ducted Heat Pumps
Discreet air conditioning for the home or business.
Ducted systems provide discreet air conditioning that doesn’t occupy valuable wall space and air diffusers can be positioned to fit around lighting and other fixtures.
The heat pump system delivers low-energy heating by utilising it's high efficiency inverter compressor technology. When only a small amount of heating or cooling is required it reduces energy input to save power.
– Discreet Concealed Installation
The ducted unit is designed to fit into ceiling spaces where it supplies conditioned air through ducting to required rooms.
Ducted systems provide discreet air conditioning that doesn’t occupy valuable wall space and air diffusers can be positioned to fit around lighting and other fixtures.
Ducted systems provide discreet air conditioning that doesn’t occupy valuable wall space and air diffusers can be positioned to fit around lighting and other fixtures.
– Energy Efficient Comfort
– Whisper Quiet
Ducted systems are one of the quietest types of air conditioning with installed sound levels quieter than an equivalent capacity wall mounted heat pump.
– Industry Leading Warranty
An industry leading 6 year parts and labour warranty covers the Hitachi wall split air conditioning for your home and office. This offers peace of mind that your heat pump will perform year after year.

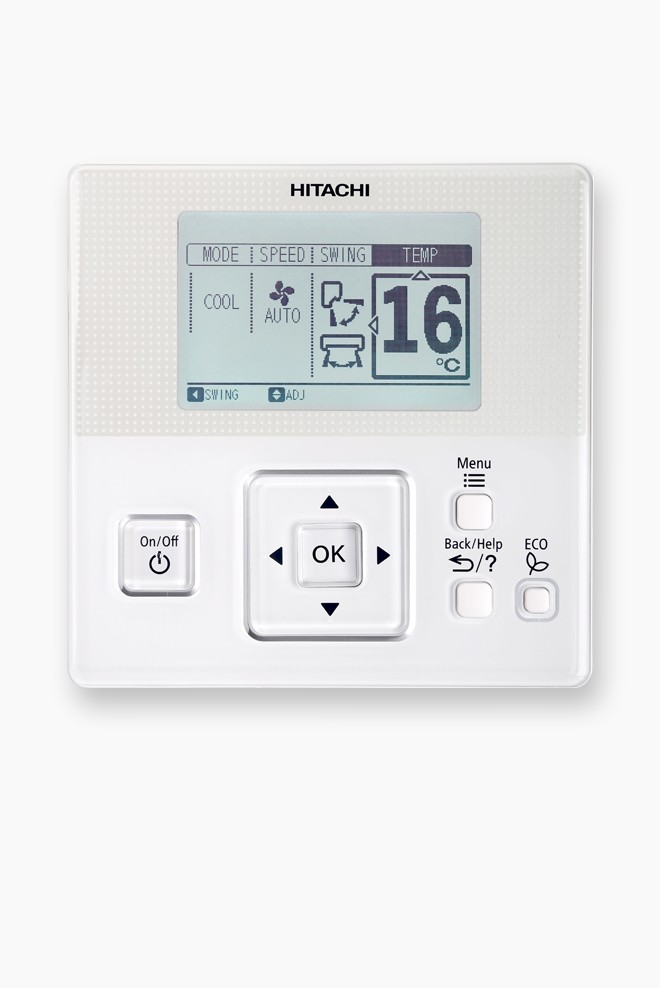

– Advanced Wall Control
The SPX-WKT3 wall controller offers the latest in advanced comfort and convenience control.
- Track power consumption
- 24/7 programmable timer
- Eco mode
- Sleep mode
- Powerful mode
- Leave home function
- Track power consumption
- 24/7 programmable timer
- Eco mode
- Sleep mode
- Powerful mode
- Leave home function
– Rapid Heating & Cooling in any Weather
Powerful Mode will run your system at maximum output for 20-minutes projecting airflow further and faster to cool or heat a room rapidly.
RAD ducted systems can operate in outside temperatures down to as low as -15˚C and as high as 46˚C ensuring you always stay comfortable.
RAD ducted systems can operate in outside temperatures down to as low as -15˚C and as high as 46˚C ensuring you always stay comfortable.
– Energy Saving Features

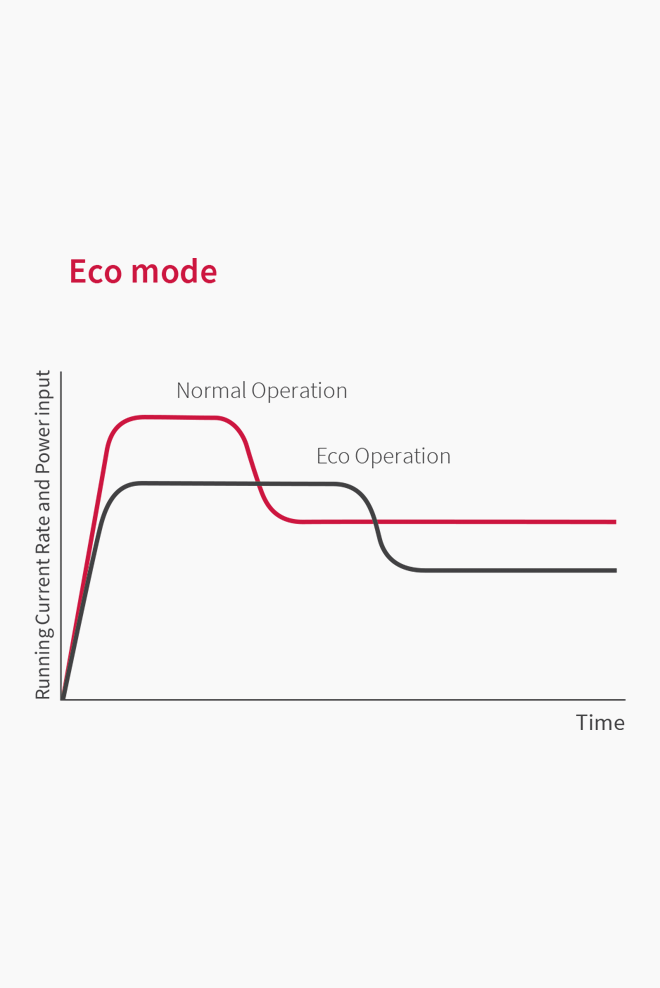

At the push of a button, Eco Mode efficiently delivers a slightly reduced temperature to help keep energy consumption to a minimum.
Hitachi RAD Series have Ultra Low Standby Power to further increase energy efficiency.
Hitachi RAD Series have Ultra Low Standby Power to further increase energy efficiency.

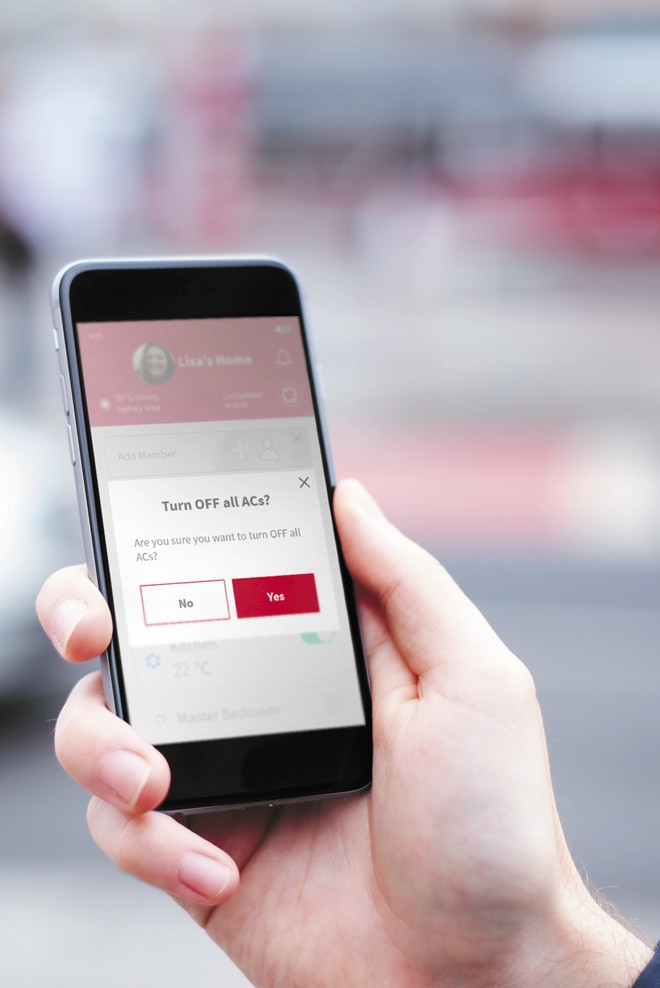

– Wifi Control for your Hitachi Ducted Heat Pump.
Installing the optional airCloud Home wifi controller module will allow you to control your Ducted Heat Pump using a smartphone or tablet.
Operate your Ducted Heat Pump from home or remotely, adjusting temperature, fan speed and setting custom schedules. airCloud is also compatible with Google Alexa and Amazon Echo smart speakers, so you can operate your Ducted Heat Pump using voice commands.
Further information on the airCloud Home can be found here.
Operate your Ducted Heat Pump from home or remotely, adjusting temperature, fan speed and setting custom schedules. airCloud is also compatible with Google Alexa and Amazon Echo smart speakers, so you can operate your Ducted Heat Pump using voice commands.
Further information on the airCloud Home can be found here.
– Model
Model
| RAD/RAC-E50YHA | RAD/RAC-E60YHA | RAD/RAC-E70YHA |
|---|
| Capacity | Nominal Cooling | kW |
| Nominal Heating | kW |
| Capacity (Range) | Cooling | kW |
| Heating | kW |
| Airflow | (Hi/Med/Low/S low) | l/sec |
| External static | Pa |
| Energy Efficiency | EER / AEER Cooling | |
| COP / ACOP Heating |
| Noise Levels (dB(A)) Cooling | Indoor Unit | Hi/Med/Low/S low |
| Outdoor Unit | Cooling/Heat/ Night |
| Dimensions (mm) | Indoor Unit | (WxHxD) |
| Outdoor Unit | (WxHxD) | |
| Indoor unit seperable |
| Weights (kg) | Indoor / Outdoor |
| Air Spigot/ Drain Dimensions | Supply Air | (W X H mm) |
| Return Air | (W X H mm) | |
| Drain Dimension |
| Operating Range | Outdoor Op. Temp. | Cooling |
| Outdoor Op. Temp. | Heating |
| Refrigerant Type |
| Pipe Sizes (mm) | ||
| Refrig Pipe charge | ||
| Max Pipe Lgth / (Lift (m) Above, Below) |
| Power | Power Supply | |
| OD unit max current |
| 5 |
| 6 |
| 1.2-5.8 |
| 1.2-6.8 |
| 283/233/200/167 |
| 50 / 100 / 150 |
| 3.82 / 3.80 |
| 3.40 / 3.87 |
| 39 / 35 / 32 / 29 |
| 50 / 33 / - |
| 270 x 900 x 720 |
| 750 x 850 x 298 |
| N |
| 35 / 50 |
| 815 x 219 |
| 805 x 220 |
| R32 |
| 30 |
| 30 / 20 |
| 230 - 240 Volt / 50 Hz / 1 Phase |
| 12 |
| 6 |
| 7 |
| 1.2-6.5 |
| 1.2-8.0 |
| 283/233/200/167 |
| 50 / 100 / 150 |
| 3.59 / 3.57 |
| 3.71 / 3.69 |
| 39 / 35 / 32 / 29 |
| 50 / 33 / - |
| 270 x 900 x 720 |
| 750 x 850 x 298 |
| N |
| 35 / 50 |
| 815 x 219 |
| 805 x 220 |
| R32 |
| 30 |
| 30 / 20 |
| 230 - 240 Volt / 50 Hz / 1 Phase |
| 14 |
| 7 |
| 8 |
| 1.5-8.0 |
| 1.5-8.5 |
| 283/233/200/167 |
| 50 / 100 / 150 |
| 3.34 / 3.32 |
| 3.40 / 3.39 |
| 39 / 35 / 32 / 29 |
| 50 / 33 / - |
| 270 x 900 x 720 |
| 800 x 850 x 298 |
| N |
| 35 / 52 |
| 815 x 219 |
| 805 x 220 |
| R32 |
| 30 |
| 30 / 20 |
| 230 - 240 Volt / 50 Hz / 1 Phase |
| 16 |
– Documentation
Manuals, brochures and other product literature. If you need any more information, please get in touch.
