RPI Ducted Heat Pumps
Discreet air conditioning for the home or business.
Heat and cool the entire home, retail or office space with a single unit.
The ducted unit is designed to fit into ceiling spaces where it supplies conditioned air through ducting to required rooms. Ducted systems provide discreet air conditioning that doesn’t occupy valuable wall space and air diffusers can be positioned to fit around lighting and other fixtures.

– Discreet Concealed Installation
The ducted unit is designed to fit into ceiling spaces where it supplies conditioned air through ducting to required rooms.
Ducted systems provide discreet air conditioning that doesn’t occupy valuable wall space and air diffusers can be positioned to fit around lighting and other fixtures.
Ducted systems provide discreet air conditioning that doesn’t occupy valuable wall space and air diffusers can be positioned to fit around lighting and other fixtures.
– Multi-Room Installation

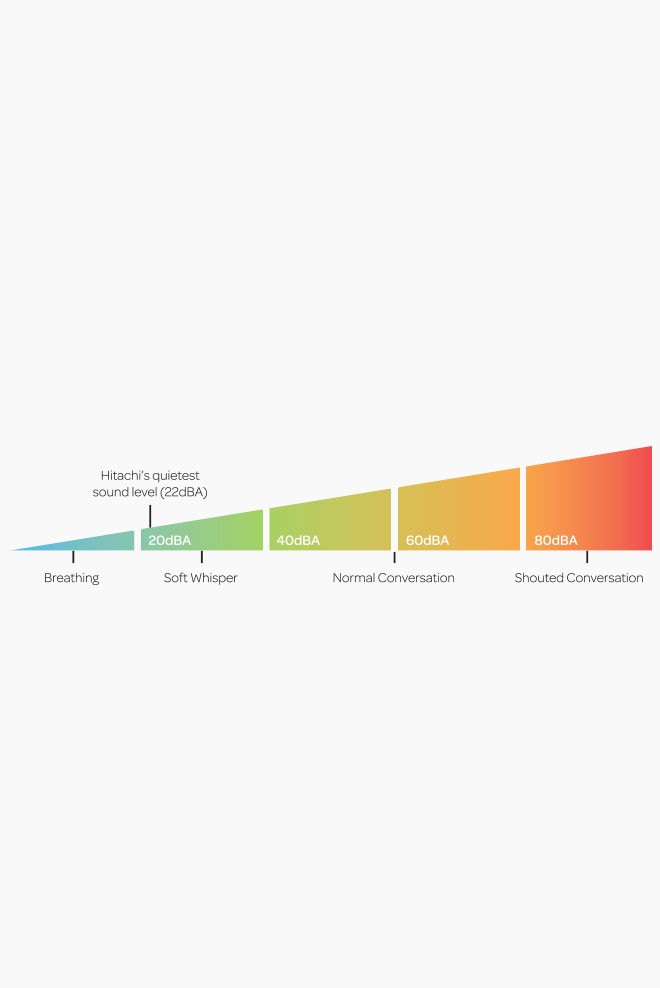

– Whisper Quiet
Ducted systems are one of the quietest types of air conditioning with installed sound levels quieter than an equivalent capacity wall mounted heat pump.

– Energy Efficient Comfort
The heat pump system delivers low-energy heating by utilising it's high efficiency inverter compressor technology. When only a small amount of heating or cooling is required it reduces energy input to save power.

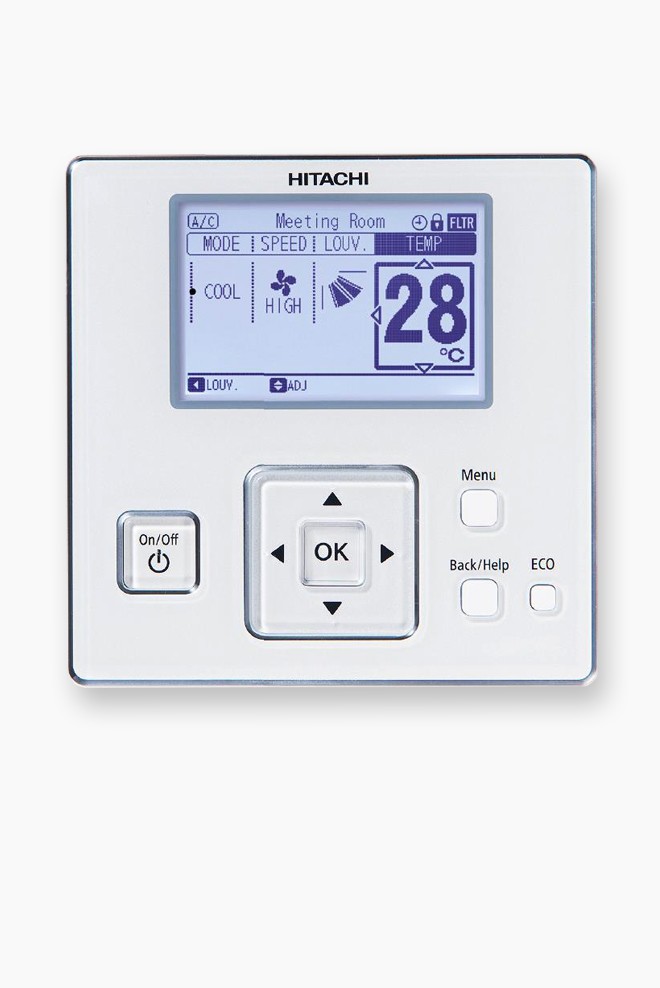

– Advanced Wall Control
The PC-ARF1 wall controller offers the latest in advanced comfort and convenience control.
- Track power consumption
- 24/7 programmable timer
- Eco mode
- Sleep mode
- Track power consumption
- 24/7 programmable timer
- Eco mode
- Sleep mode

– Low Temperature Heating
The RPI ducted systems can supply heating in the most challenging of environments. They will operate in outside temperatures down to as low as -20˚C and as high as 46˚C ensuring you stay comfortable when you need it.

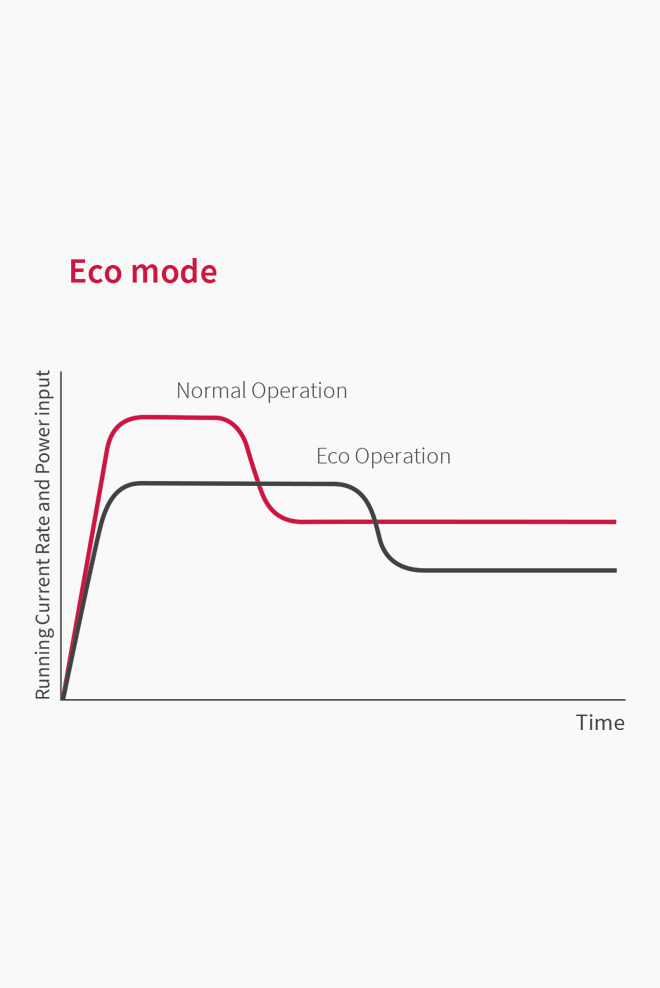

– Energy Saving Features
At the push of a button, Eco Mode efficiently delivers a slightly reduced temperature to help keep energy consumption to a minimum.
Hitachi RPI Series have Ultra Low Standby Power to further increase energy efficiency.
Hitachi RPI Series have Ultra Low Standby Power to further increase energy efficiency.

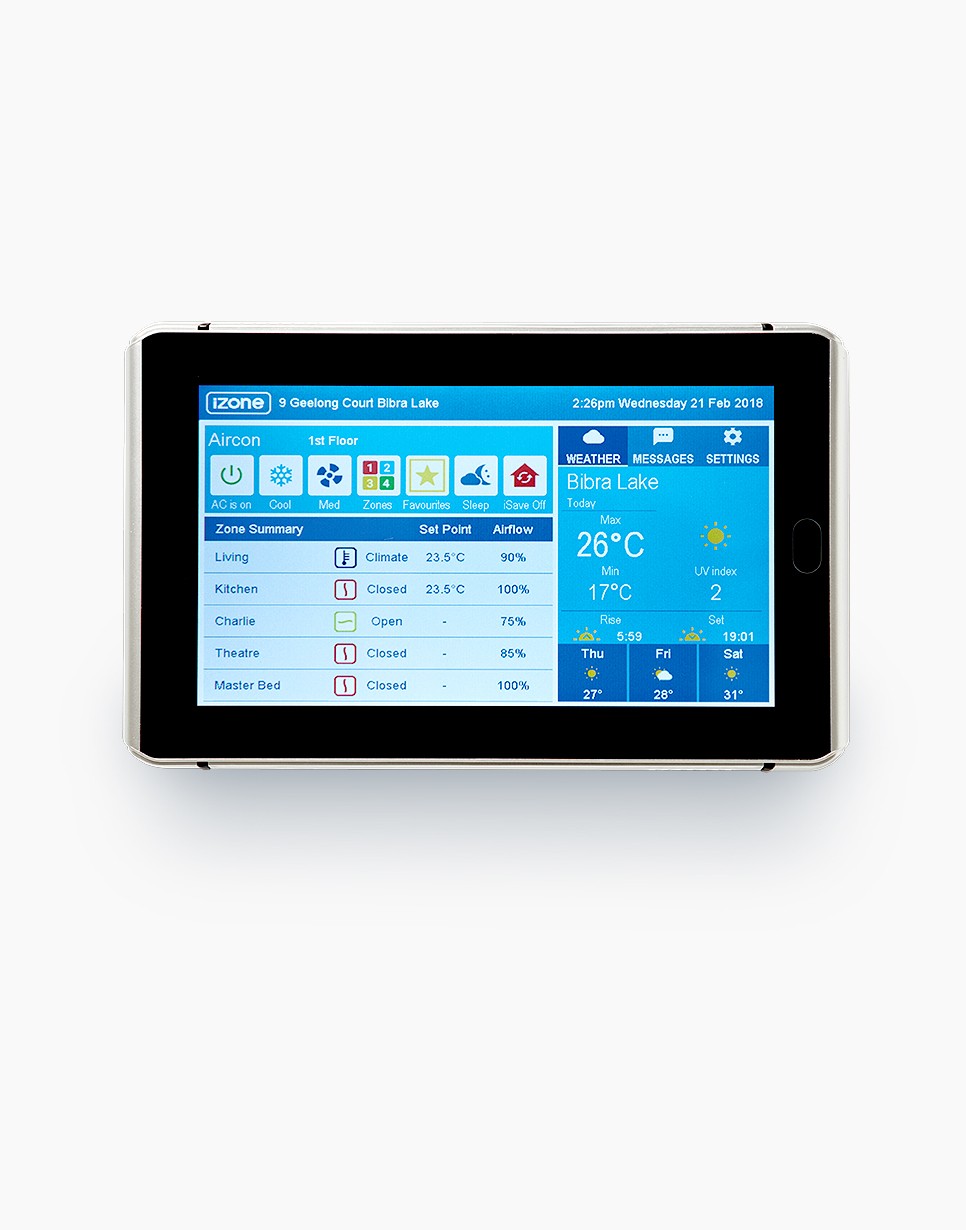

– Advanced WiFi Zone Control
Intelligent design inside and beautiful design outside, the optional touch screen gives you control your air distribution, temperature or airflow.
Set up zones for individual comfort control in each space. Connect with a smart device via WiFi so you can control your system from anywhere.
Set up zones for individual comfort control in each space. Connect with a smart device via WiFi so you can control your system from anywhere.

– Industry Leading Warranty
An industry leading 6 year parts and labour warranty covers the Hitachi wall split air conditioning for your home and office. This offers peace of mind that your heat pump will perform year after year.
– Model

Capacity | Nominal Cooling | kW |
Nominal Heating | kW |
Capacity (Range) | Cooling | kW |
Heating | kW |
Airflow | (Hi/Med/Low/S low) | l/sec |
External static | Pa |
Energy Efficiency | EER / AEER Cooling | |
COP / ACOP Heating |
Noise Levels (dB(A)) Cooling | Indoor Unit | Hi/Med/Low/S low |
Outdoor Unit | Cooling/Heat/ Night |
Dimensions (mm) | Indoor Unit | (WxHxD) |
Outdoor Unit | (WxHxD) | |
Indoor unit seperable |
Weights (kg) | Indoor / Outdoor |
Air Spigot/ Drain Dimensions | Supply Air | (W X H mm) |
Return Air | (W X H mm) | |
Drain Dimension |
Operating Range | Outdoor Op. Temp. | Cooling |
Outdoor Op. Temp. | Heating |
Refrigerant Type |
Pipe Sizes (mm) | ||
Refrig Pipe charge | ||
Max Pipe Lgth / (Lift (m) Above, Below) |
Power | Power Supply | |
OD unit max current |
10 |
11.2 |
4.5-11.2 |
5.0-14.0 |
600/550/416/- |
120(max) |
3.92 / 3.45 |
4.53 / 4.02 |
48 / 45 / 41 / - |
52 / 54 / 50 |
350 x 1076 x 800 |
1140 x 950 x 370 |
Y |
57 / 79 |
980 x 220 |
813 x 306 |
R410A |
30 |
70 / 30,20 |
230 - 240 Volt / 50 Hz / 1 Phase |
26 |
12.5 |
14 |
5.7-14.0 |
5.0-18.0 |
783/716/566/- |
120(max) |
3.40 / 3.01 |
4.35 / 3.78 |
49 / 46 / 43 / - |
52 / 54 / 50 |
350 x 1300 x 800 |
1140 x 950 x 370 |
Y |
61 / 89 |
1205 x 220 |
813 x 306 |
R410A |
30 |
75 / 30,20 |
230 - 240 Volt / 50 Hz / 1 Phase |
26 |
13 |
16 |
6.0-16.0 |
5.0-20.0 |
933/833/666/- |
120(max) |
3.27 / 2.96 |
4.21 / 3.68 |
53 / 49 / 45 / - |
55 / 57 / 53 |
350 x 1300 x 800 |
1140 x 950 x 370 |
Y |
63 / 89 |
1205 x 220 |
935 x 306 |
R410A |
30 |
75 / 30,20 |
230 - 240 Volt / 50 Hz / 1 Phase |
26 |
16 |
18 |
6.0-18.0 |
5.0-20.0 |
1083/950/766/- |
140(max) |
3.36 / 3.35 |
4.21 / 3.75 |
51 / 47 / 42 / - |
49 / 53 / 46 |
440 x 1430 x 500 |
1380 x 950 x 370 |
N |
75 / 104 |
830 x 300 |
1288 x 402 |
R410A |
75 / 30,20 |
32 |
