– SideSmart VRF
The World's First slim modular VRF unit. Adapts to your space and capacity needs.
Small size, yet maximal efficiency.
– Save on Space without Sacrificing Performance
A first in the sector, the SideSmart VRF unit is an exclusive concept (for which measurements start from 1650x1050x420mm) and it is the ideal choice for projects of all sizes, especially those with limited space.

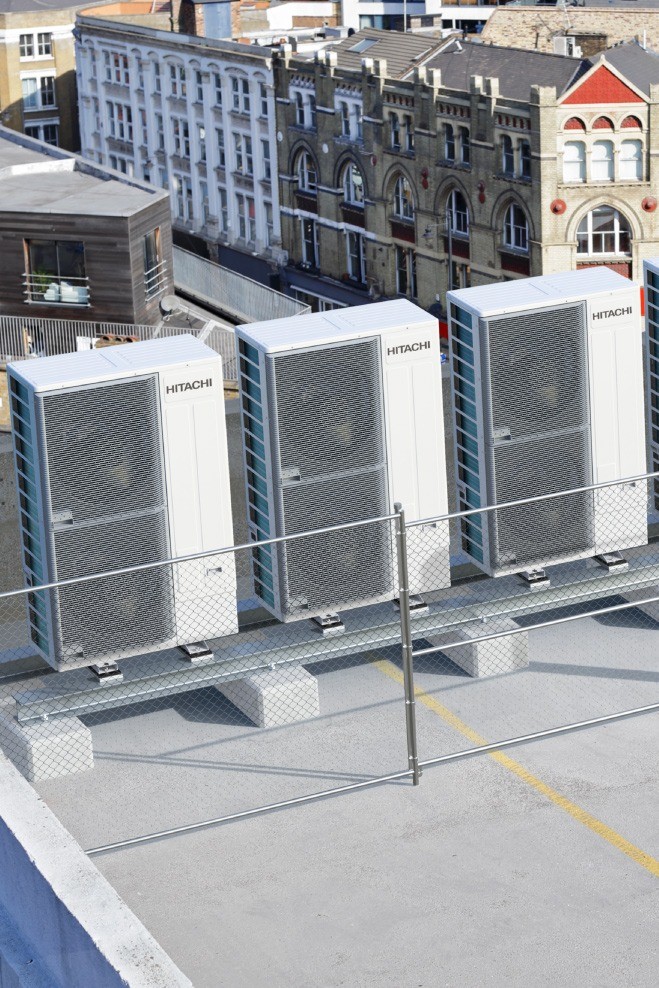

It’s modularity means that up to four units can be connected, offering a maximum combined capacity of 152kW cooling capacity (54HP). Thanks to its slim, modular concept, larger capacity air conditioning can be achieved almost anywhere, making SideSmart one of the most versatile VRF units on the market.
It’s modularity means that up to four units can be connected, offering a maximum combined capacity of 152kW cooling capacity (54HP). Thanks to its slim, modular concept, larger capacity air conditioning can be achieved almost anywhere, making SideSmart one of the most versatile VRF units on the market.
– 3 Installation Combinations
Being a lighter unit, SideSmart presents fewer complications during delivery and installation. Choose from the Premium combination that has a maximum capacity of 134kW or the Standard range with capacities from 22.4kW to 152kW..
The Premium combination provide improved running costs with a COP average of 4.71 (SEA model), while the Standard combinations offer larger air conditioning capacities without utilisinf extra space.

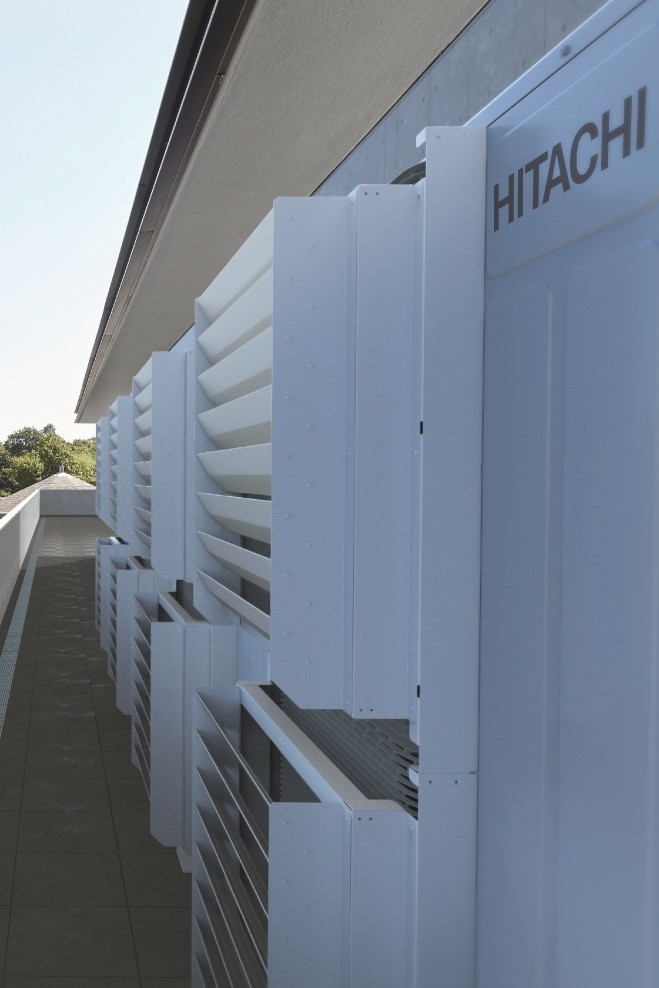

The fans on the outdoor units are capable of operating against external resistance of up to 60Pa – which means that the outdoor unit can be used as either free blowing units, or behind louvres and even in utility rooms, so you can optimise the system design. This helps reduce the length of piping between indoor and outdoor units, increasing efficiency and freeing the rooftop air conditioning equipment.
The Premium combination provide improved running costs with a COP average of 4.71 (SEA model), while the Standard combinations offer larger air conditioning capacities without utilisinf extra space.
The fans on the outdoor units are capable of operating against external resistance of up to 60Pa – which means that the outdoor unit can be used as either free blowing units, or behind louvres and even in utility rooms, so you can optimise the system design. This helps reduce the length of piping between indoor and outdoor units, increasing efficiency and freeing the rooftop air conditioning equipment.
– Packed with Cutting Edge Technology

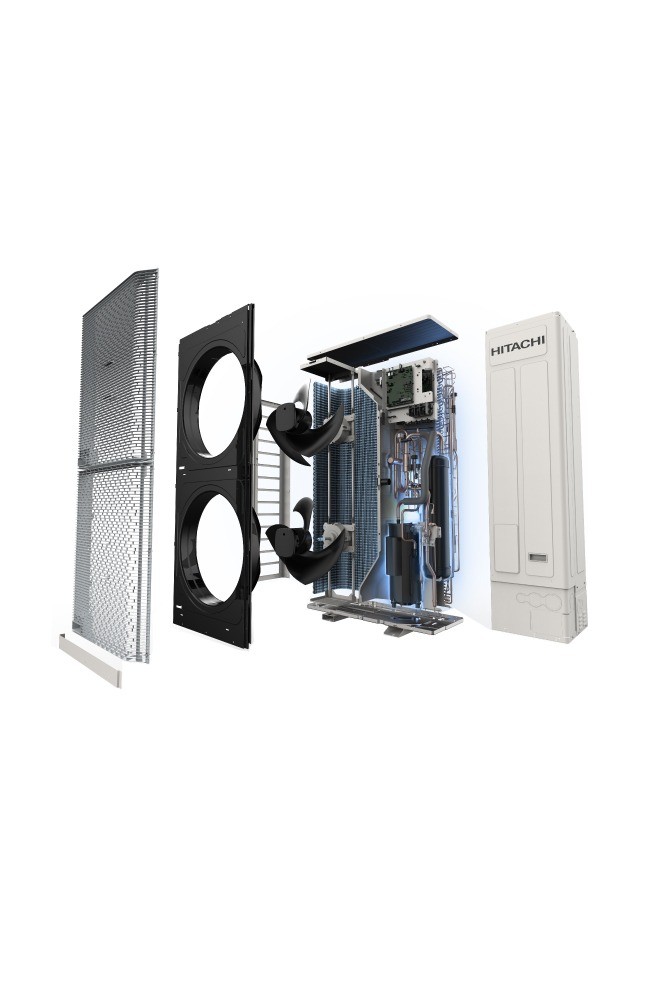

Inside the unit, exclusive Hitachi Cooling & Heating technology ensures that SideSmart performs at the highest level of Hitachi efficiency. To support increased capacity despite being slim, components like the motor-clamp and fan outlets help improve performance by reduinf air-way ventilation resistance.
It also has SmoothDrive incorporated into the system, our exclusive scroll compressor technology, that helps each indoor unit to operate at optimal efficiency especially at partial loads and minimises energy-wastage. Another advantage of SideSmart is its ability to reduce the overall refrigerant volume required.
It also has SmoothDrive incorporated into the system, our exclusive scroll compressor technology, that helps each indoor unit to operate at optimal efficiency especially at partial loads and minimises energy-wastage. Another advantage of SideSmart is its ability to reduce the overall refrigerant volume required.
– Durable and Easy to Maintain

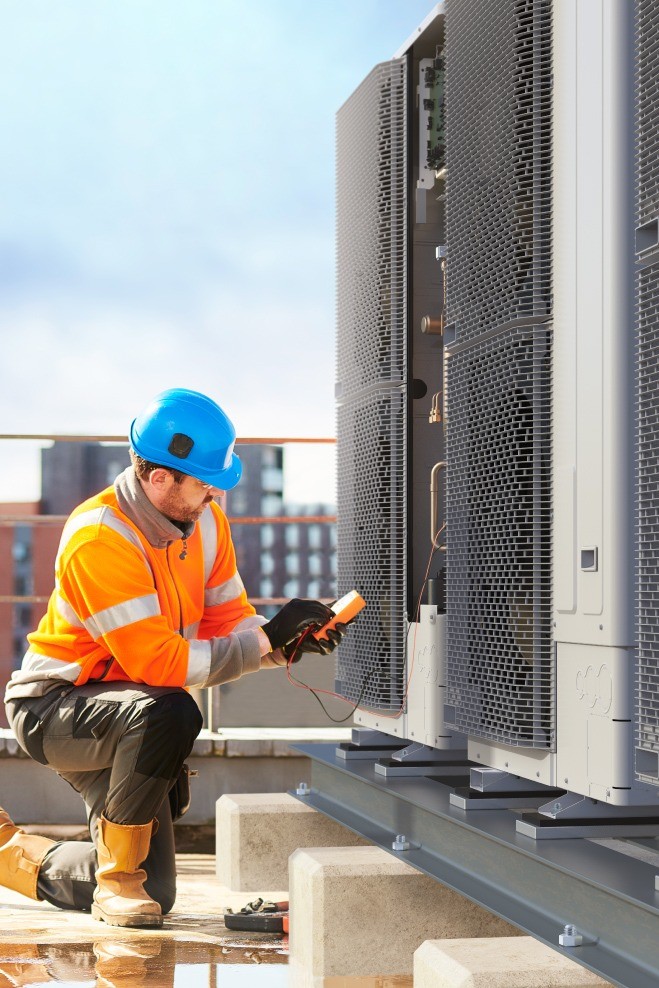

For module combination types, both the outdoor unit's scroll compressor rotation technology and its back-up function reduce the risk of breakdowns and system failures. Also to make it easier to attend to any issues or general checks, to provide quick access to the service panel, all screws are located on the front panel.
Combine the outdoor unit with accessories like Protection Net or our optional Wire-Kit to improve the unit's safety at the time of installation and maintenance.
Combine the outdoor unit with accessories like Protection Net or our optional Wire-Kit to improve the unit's safety at the time of installation and maintenance.
1/3
–
– Documentation
Manuals, brochures and other product literature. If you need any more information, please get in touch.
