– PRIMAIRY R32

There's always a PRIMAIRY solution suited to your needs

– Flexible range with a wide choice of units

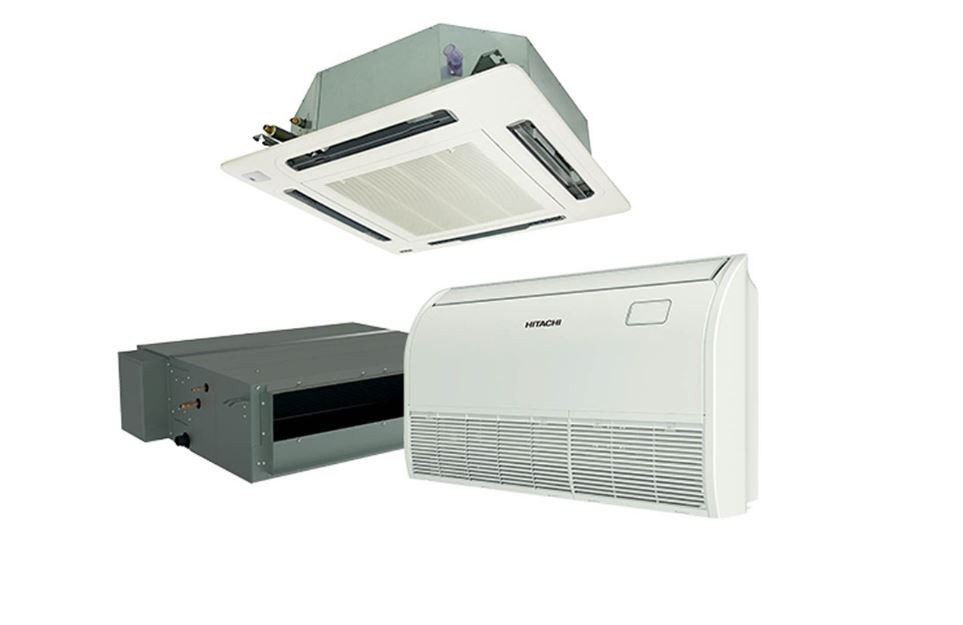

Choice of 4 different indoor unit types with a common outdoor for simplified installation that meets a wide variety of small commercial needs; be it bars and restaurants, shops or small office spaces.

Cassettes with individual louvre control, ducted splits with wide static pressure range, and floor or ceiling flexi units for perfect adaptability.

– Performance and reliability

– Affordability coupled with efficiency

R32 refrigerant helps reduce greenhouse emissions and delivers efficency ratings of A++ for an affordable unit with affordable bills

– Fits in with you

Long pipe runs up to 50m and integral connections for remote on/off or alarm signal output make the unit perferct for server rooms and small hotels.

1/5

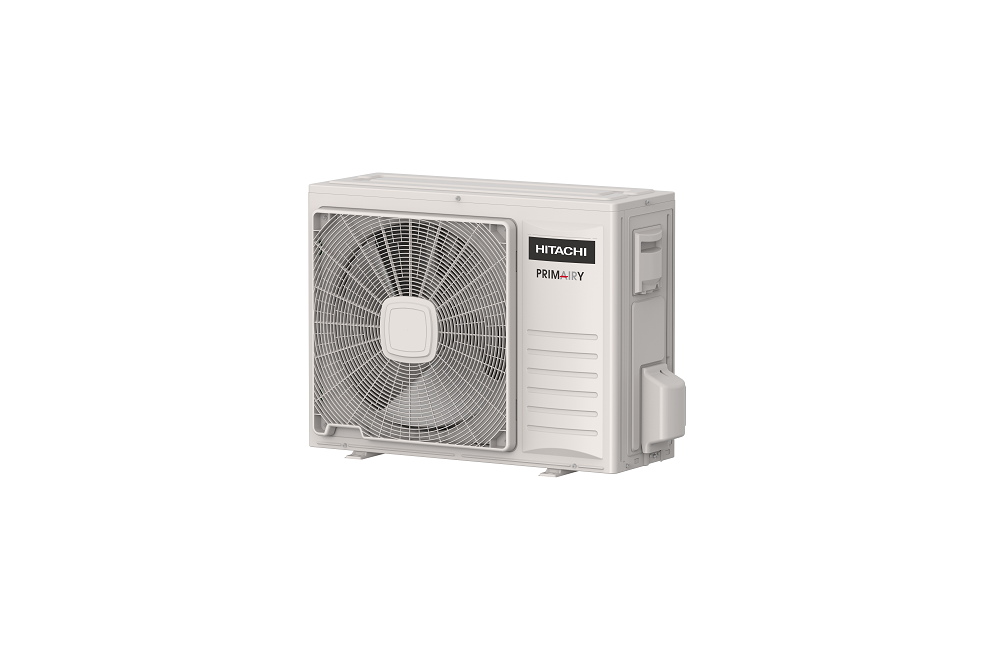

– Outdoor Units

Outdoor Units

RAS-3.0UFESNH1	RAS-3.5UFESNH1	RAS-4.0UFESNH1	RAS-5.0UFESNH1	RAS-6.0UFESNH1	RAS-5.0UFESMH1	RAS-6.0UFESMH1	RAS-6.5UFESMH1

Power feed

Power consumption	Cooling	KW
Power consumption	Heating	KW

Sound Pressure

dB(A)

Sound Power

dB(A)

Diameter of pipes (liquid-gas)

Inches

Maximum pipe length

Maximum piping elevation (between IDU & ODU)

Refrigerant charge / (Pre-charged length)

kg (m)

Additional refrigerant charge

g/m

Refrigerant

Compressor

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

220-230V, 1Ph, 50Hz
1,91
2,03
54
69
3/8 - 5/8
50
30
1,40 (5)
28
R32
Rotary
670
860
310
49

220-230V, 1Ph, 50Hz
2,71
2,25
54
70
3/8 - 5/8
50
30
1,45 (5)
28
R32
Rotary
670
860
310
49

220-230V, 1Ph, 50Hz
3,72
3,50
58
70
3/8 - 3/4
50
30
2,00 (5)
28
R32
Rotary
840
950
340
70

220-230V, 1Ph, 50Hz
4,31
3,86
62
76
3/8 - 3/4
50
30
2,50 (5)
28
R32
Rotary
1050
950
340
85

220-230V, 1Ph, 50Hz
5,00
4,95
62
76
3/8 - 3/4
50
30
3,00 (5)
28
R32
Rotary
1386
950
340
102

380-415V, 3Ph, 50Hz
4,24
3,70
62
76
3/8 - 3/4
50
30
2,50 (5)
28
R32
Rotary
1050
950
340
85

380-415V, 3Ph, 50Hz
4,81
4,71
62
76
3/8 - 3/4
50
30
3,00 (5)
28
R32
Rotary
1386
950
340
102

380-415V, 3Ph, 50Hz
6,72
6,74
67
80
3/8 - 3/4
50
30
3,40 (5)
28
R32
Rotary
1386
950
340
109

Open table

Download PDF

– Indoor Units

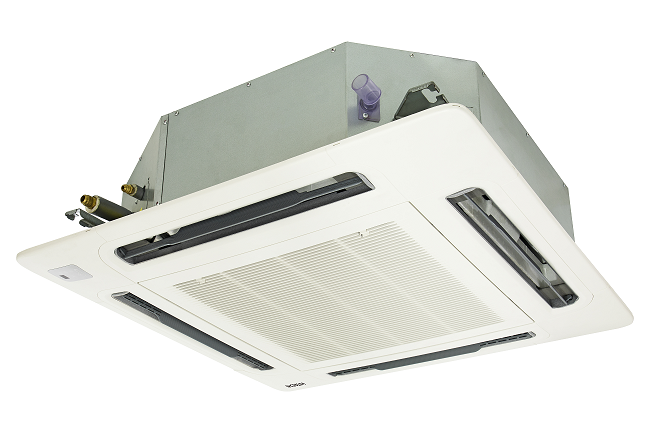

Primairy Cassette

Primairy Cassette

RCI-3.0UFE1NH	RCI-3.5UFE1NH	RCI-4.0UFE1NH	RCI-5.0UFE1NH	RCI-6.0UFE1NH	RCI-6.5UFE1NH

Nominal Capacity (min - max)	Cooling	KW
Nominal Capacity (min - max)	Heating	KW

Seasonal energy rating	Cooling
Seasonal energy rating	Heating

SEER

SCOP

EER - COP

Sound Pressure (low - med - high)

dB(A)

Sound Power (Eurovent data)

dB(A)

Air flow (low - med - high)

m3/h

Diameter of pipes (liquid-gas)

Inches

Condensate drain diameter

Remote control (standard)

Programming

Dimensions	Height	mm
	Width	mm
	Depth	mm

Cassette panel dimensions	Height	mm
	Width	mm
	Depth	mm

Weight		kg

7,00 (2,40-7,85)
8,25 (2,10-8,80)
A++
A+
6,73
4,33
3.66 - 4.06
37-42-45
59
720-980-1180
3/8 - 5/8
32
Wired (Wireless)
7 day / 24h
248
840
840
37
950
950
25

8,70 (4,00-9,20)
9,00 (3,50-9,50)
A++
A+
6,10
4,20
3.21 - 4.00
42-46-48
62
900-1120-1400
3/8 - 5/8
32
Wired (Wireless)
7 day / 24h
248
840
840
37
950
950
27

10,10 (3,50-11,00)
11,20 (3,32-12,00)
A++
A
6,10
3,92
2.72 - 3.20
42-45-50
65
1000-1300-1600
3/8 - 3/4
32
Wired (Wireless)
7 day / 24h
248
840
840
37
950
950
27

12,10 (3,30-13,20)
13,50 (3,00-14,60)
A+
A
6,05
3,98
2.85 - 3.65
47-49-51
64
1550-1700-1850
3/8 - 3/4
32
Wired (Wireless)
7 day / 24h
298
840
840
37
950
950
32

13,89 (3,40-16,20)
16,53 (3,70-18,00)
A+
A
5,64
3,81
2.89 - 3.51
42-45-51
65
1400-1700-2100
3/8 - 3/4
32
Wired (Wireless)
7 day / 24h
298
840
840
37
950
950
32

16,90 (3,30-18,00)
19,49 (3,00-21,00)
A+
A
5,60
3,87
2.51 - 2.89
42-45-52
68
1400-1700-2100
3/8 - 3/4
32
Wired (Wireless)
7 day / 24h
298
840
840
37
950
950
32

Open table

Download PDF

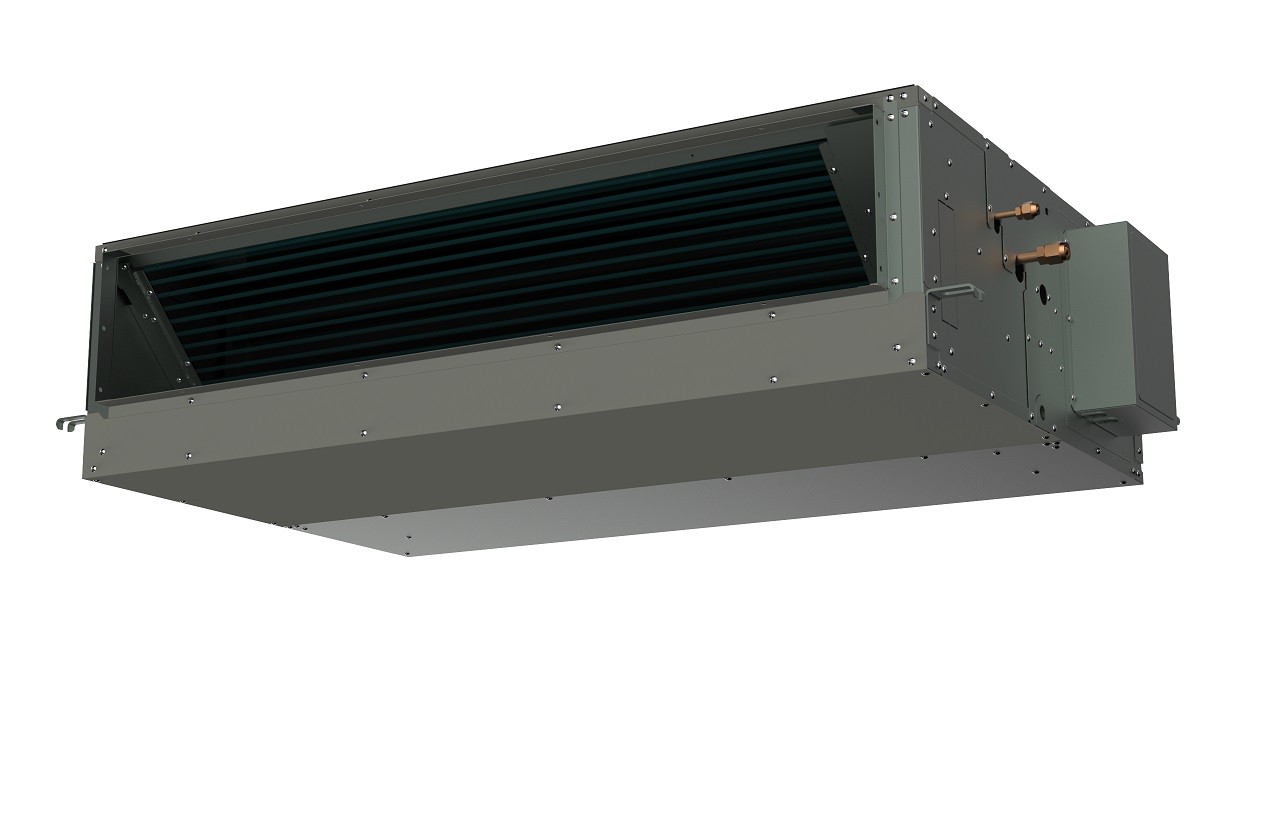

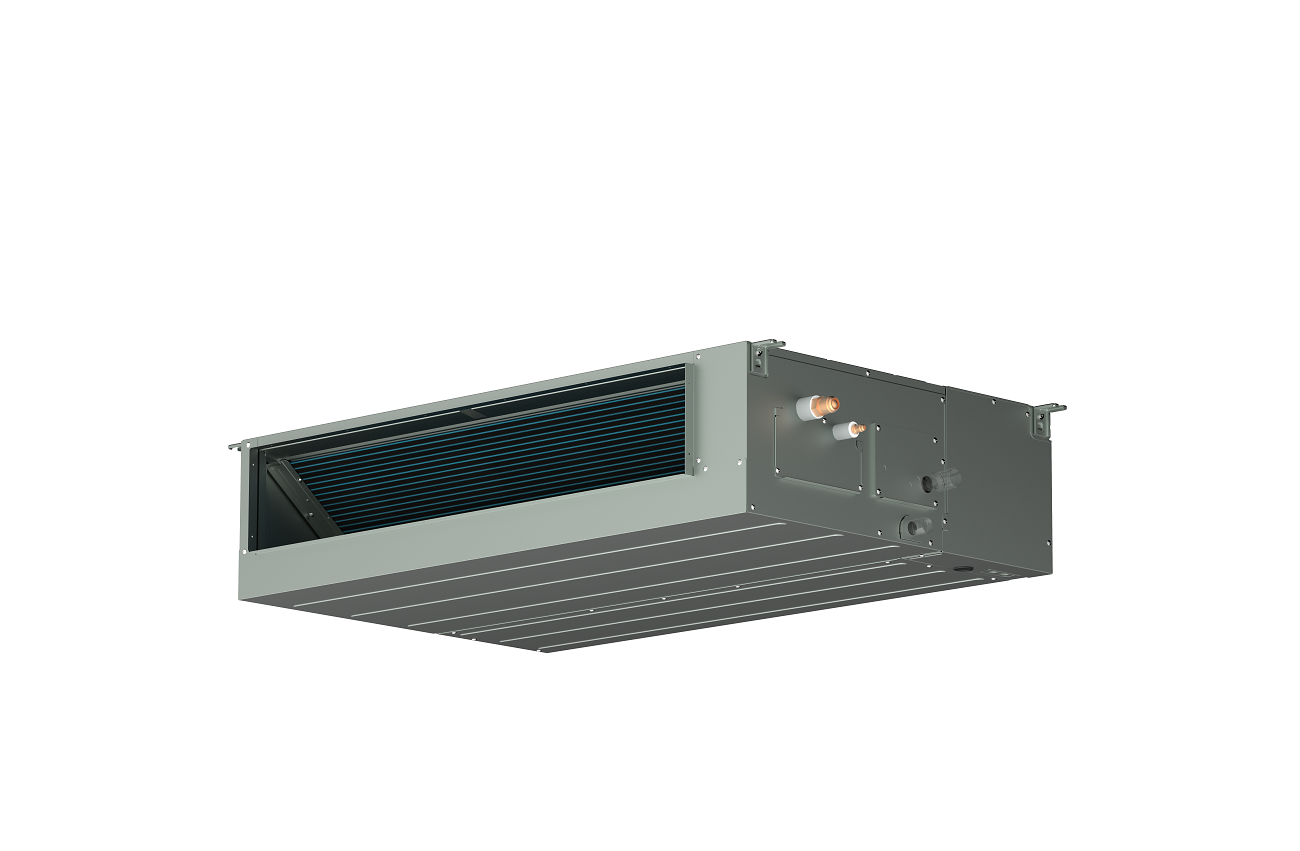

Primairy Ducts

Primairy Ducts

RPIL-3.0UFE1NH	RPIH-3.5UFE1NH	RPIH-4.0UFE1NH	RPIH-5.0UFE1NH	RPIH-6.0UFE1NH	RPIH-6.5UFE1NH

Nominal Capacity (min - max)	Cooling	KW
Nominal Capacity (min - max)	Heating	KW

Seasonal energy rating	Cooling
Seasonal energy rating	Heating

SEER

SCOP

EER - COP

Sound Pressure (low - med - high)

dB(A)

Sound Power (Eurovent data)

dB(A)

Air flow (low - med - high)

m3/h

Static Pressure Nom (min ̴ max)

Diameter of pipes (liquid-gas)

Inches

Condensate drain diameter

Remote control (standard)

Programming

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

6,90 (2,45-7,85)
8,30 (2,20-8,70)
A++
A+
6,29
4,05
3,19-3,74
31-34-38
61
490-700-1000
25 (0 ̴40)
3/8 - 5/8
32
Hard Wired
7 day
190
1180
447
24

8,50 (4,00-9,50)
9,00 (3,50-9,40)
A++
A+
6,20
4,00
3,18-3,75
33-38-41
63
900-1120-1450
37 (0 ̴120)
3/8 - 5/8
32
Hard Wired
7 day
268
1140
720
38

10,10 (3,50-11,00)
10,50 (3,32-12,00)
A++
A
6,10
3,92
2,66-3,00
38-40-42
65
1400-1600-1800
37 (0 ̴120)
3/8 - 3/4
32
Hard Wired
7 day
268
1140
720
38

12,10 (3,30-13,20)
13,40 (3,00-14,60)
A++
A
6,28
3,70
2,87 - 3,70
37-40-43
69
1300-1500-1750
50 (0 ̴120)
3/8 - 3/4
32
Hard Wired
7 day
350
1300
800
51

14,19 (3,20-16,00)
16,13 (3,40-18,50)
A+
A
5,94
3,70
2,97 - 3,47
42-45-47
77
1900-2200-2400
50 (0 ̴120)
3/8 - 3/4
32
Hard Wired
7 day
350
1300
800
51

17,10 (3,30-18,50)
18,00 (3,00-19,50)
A+
A
5,81
3,72
2,59 - 2,95
43-45-48
77
1900-2200-2400
50 (0 ̴120)
3/8 - 3/4
32
Hard Wired
7 day
350
1300
800
51

Open table

Download PDF

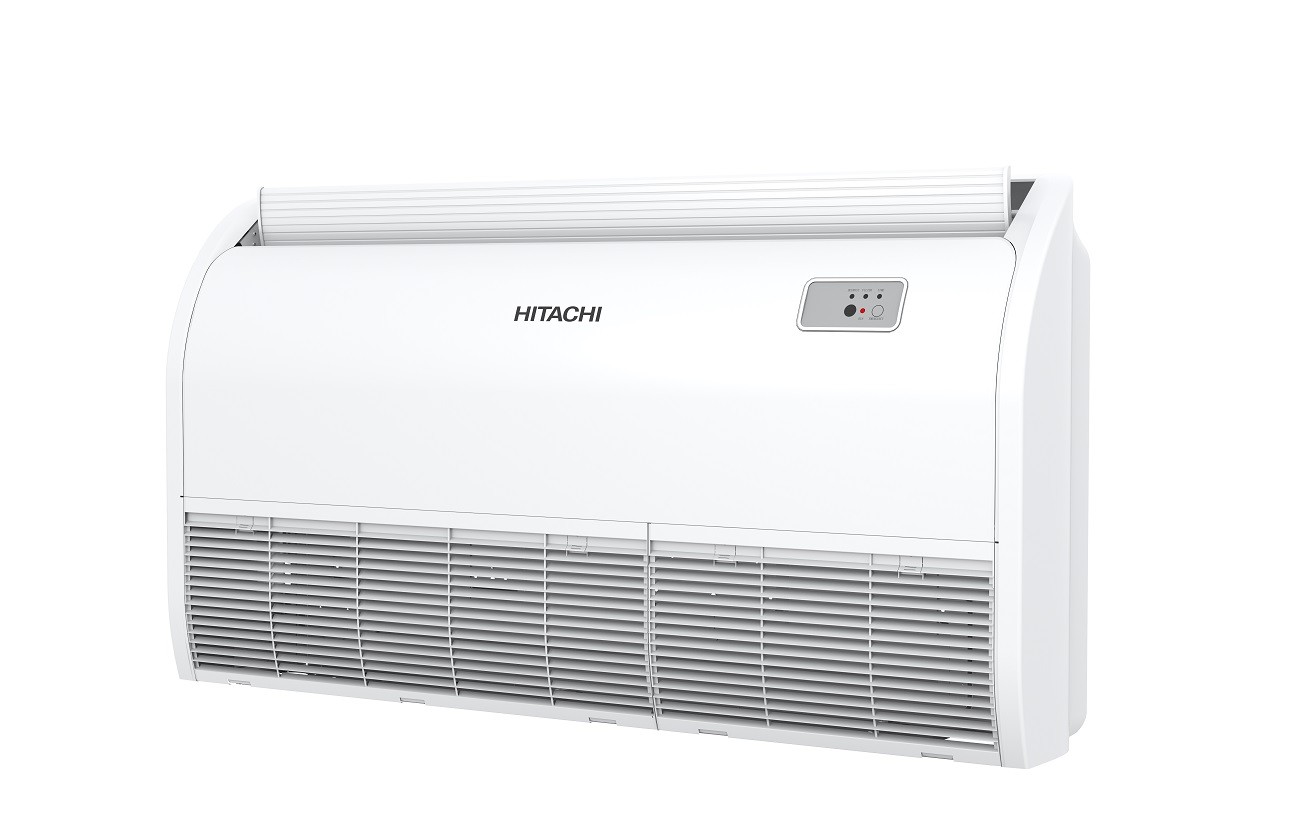

Primairy Floor / Ceiling

Primairy Floor / Ceiling

RPFC-3.0UFE1NH	RPFC-3.5UFE1NH	RPFC-4.0UFE1NH	RPFC-5.0UFE1NH	RPFC-6.0UFE1NH	RPFC-6.5UFE1NH

Nominal Capacity (min - max)	Cooling	KW
Nominal Capacity (min - max)	Heating	KW

Seasonal energy rating	Cooling
Seasonal energy rating	Heating

SEER

SCOP

EER - COP

Sound Pressure (low - med - high)

dB(A)

Sound Power (Eurovent data)

dB(A)

Air flow (low - med - high)

m3/h

Diameter of pipes (liquid-gas)

Inches

Condensate drain diameter

Remote control (standard)

Programming

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

6,50 (2,45-7,85)
7,35 (2,20-8,70)
A+
A+
5,81
4,01
3,35-3,55
44-48-51
65
800-950-1100
3/8 - 5/8
25
Wired (Wireless)
7 day / 24h
230
990
680
30

8,60 (3,50-9,00)
8,70 (3,00-9,20)
A++
A+
6,10
4,10
2,92-3,78
43-48-54
65
900-1120-1450
3/8 - 5/8
25
Wired (Wireless)
7 day / 24h
230
1285
680
37

9,80 (3,50-11,00)
10,50 (3,32-12,00)
A+
A
5,87
3,82
2,61-2,88
51-52-54
65
1300-1500-1700
3/8 - 3/4
25
Hard Wired
24h / 7 day
230
1285
680
37

12,10 (3,30-13,20)
13,50 (3,00-14,60)
A+
A
5,70
3,78
2,75 - 3,24
48-51-54
68
1600-1800-2000
3/8 - 3/4
25
Hard Wired
24h / 7 day
230
1580
680
48

13,76 (3,10-16,10)
16,59 (3,60-18,00)
A
A
5,33
3,55
2,75 - 3,42
46-52-58
75
1200-1600-2000
3/8 - 3/4
25
Hard Wired
24h / 7 day
230
1580
680
48

16,30 (3,30-18,00)
18,00 (3,00-19,00)
A
A
5,30
3,78
2,39 - 2,64
48-53-56
74
1500-1700-2000
3/8 - 3/4
25
Hard Wired
24h / 7 day
230
1580
680
48

Open table

Download PDF

– Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.

Technical Catalogue - Primairy R32

IOM PRIMAIRY R32 CASSETTE

IOM PRIMAIRY R32 DUCTED

IOM PRIMAIRY R32 FLOOR / UNDER CELING

IOM PRIMAIRY R32 OUTDOOR UNIT

PRIMAIRY R32 BROCHURE
