– SUMMIT REF WALL MOUNTED

High efficiency, low maintenance, zero fuss, low cost
SUMMIT REF WALL MOUNTED_header
High efficiency and simplicity
SUMMIT REF WALL MOUNTED_0

– 01. Ultra compact

With a width of just 78cm the Summit range can fit anywhere including above a doorway.
SUMMIT REF WALL MOUNTED_1

– 02. Premium performance at low cost

Market leading seasonal efficiency with a SEER of A++ and SCOP of A+
SUMMIT REF WALL MOUNTED_2

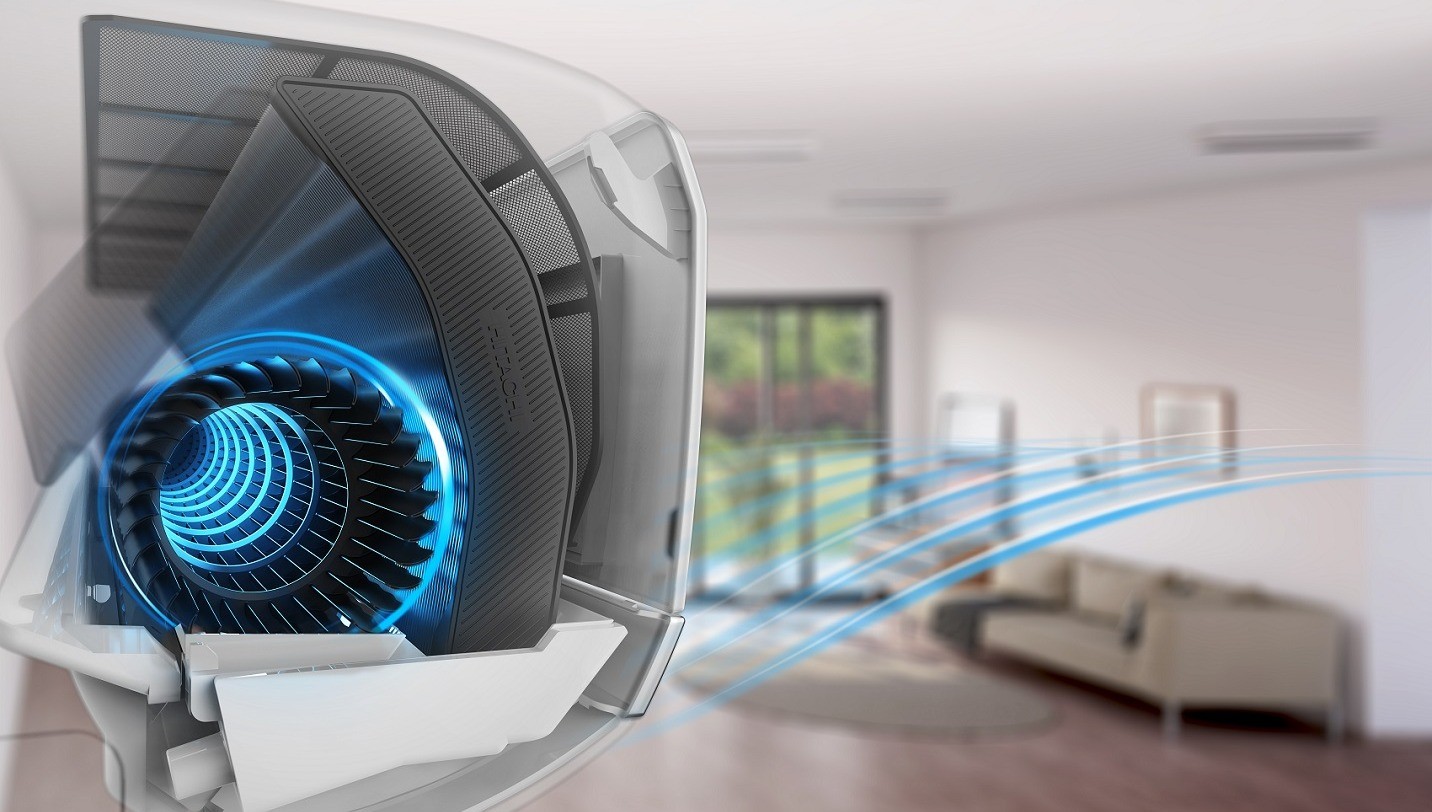

– 03. Improve air quality with FrostWash

With patented FrostWash technology Hitachi's air conditioners automatically keep themselves clean and efficient all year around.

– Outdoor Units

Wall Mounted Summit - R32

RAK-18PED RAK-25PED RAK-35PED RAK-50PED
Nominal Capacity (min - max) Cooling KW
Heating KW
Seasonal energy rating Cooling
Heating
SEER
SCOP
EER - COP (Cooling/heating energy label)
Sound Pressure (very low - low - med - high) Cooling dB(A)
Heating dB(A)
Sound Power (Eurovent data) dB(A)
Air flow (very low - low - med - high) Cooling m3/h
Heating m3/h
Diameter of pipes (liquid-gas) Inches
Condensate drain diameter mm
Remote control (standard)
Programming
Dimensions Height mm
Width mm
Depth mm
Weight kg
2,00 (0,90-2,50)
2,50 (0,90-3,20)
A+
A
5.8
3.8
3,45-4,03 (A/A)
21-24-33-37
19-22-33-38
51
312-350-400-440
312-350-420-480
1/4 - 3/8
16
Eco Control
24h / 7 Day
280
780
218
7.5
2,50 (0,90-3,10)
3,40 (0,90-4,40)
A+
A
5.8
3.8
3,57-3,86 (A/A)
22-24-33-40
20-23-34-41
54
333-370-430-510
333-400-500-570
1/4 - 3/8
16
Eco Control
24h / 7 Day
280
780
218
7.5
3,50 (0,90-4,00)
4,20 (0,90-5,00)
A+
A
5.85
3.8
3,21-3,82 (A/A)
25-26-36-43
26-27-36-44
57
333-400-485-600
333-520-550-660
1/4 - 3/8
16
Eco Control
24h / 7 Day
280
780
218
7.5
5,00 (1,90-5,20)
6,00 (2,20 -7,30)
A+
A
5.88
3.8
3,21-3,61 (A/A)
28-30-40-46
25-30-39-47
60
333-450-600-700
433-510-650-770
1/4 - 1/2
16
Eco Control
24h / 7 Day
280
780
218
8

Outdoor Units

RAC-18WED RAC-25WED RAC-35WED RAC-50WED
Power feed
Power consumption (min - max) Cooling KW
Heating KW
Sound Pressure Cooling dB(A)
Heating dB(A)
Sound Power dB(A)
Airflow Cooling m3/h
Heating m3/h
Diameter of pipes (liquid-gas) Inches
Maximum pipe length m
Maximum piping elevation (between IDU & ODU) m
Refrigerant charge / (Pre-charged length) kg (m)
Refrigerant
Compressor
Dimensions Height mm
Width mm
Depth mm
Weight kg
230V, 1Ph, 50Hz
0,58 (0,25-1,01)
0,62 (0,25-0,97)
45
46
59
1860
1620
1/4 - 3/8
20
10
0,72 / (20)
R32
Rotary
530
660
278
24.5
230V, 1Ph, 50Hz
0,70 (0,25-1,29)
0,88 (0,25-1,25)
47
48
61
1860
1620
1/4 - 3/8
20
10
0,72 / (20)
R32
Rotary
530
660
278
24.5
230V, 1Ph, 50Hz
1,09 (0,25-1,46)
1,10 (0,25-1,70)
48
49
62
1860
1620
1/4 - 3/8
20
10
0,95 (20)
R32
Rotary
530
660
278
27.5
230V, 1Ph, 50Hz
1,56 (0,50-2,10)
1,66 (0,50-2,75)
50
50
64
2160
2160
1/4 - 1/2
20
10
1,25 (20)
R32
Rotary
600
792
299
40
Open table
Download PDF
Download PDF

– Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.
IM - RAK - REF
IM - RAC - WEF
All downloads
