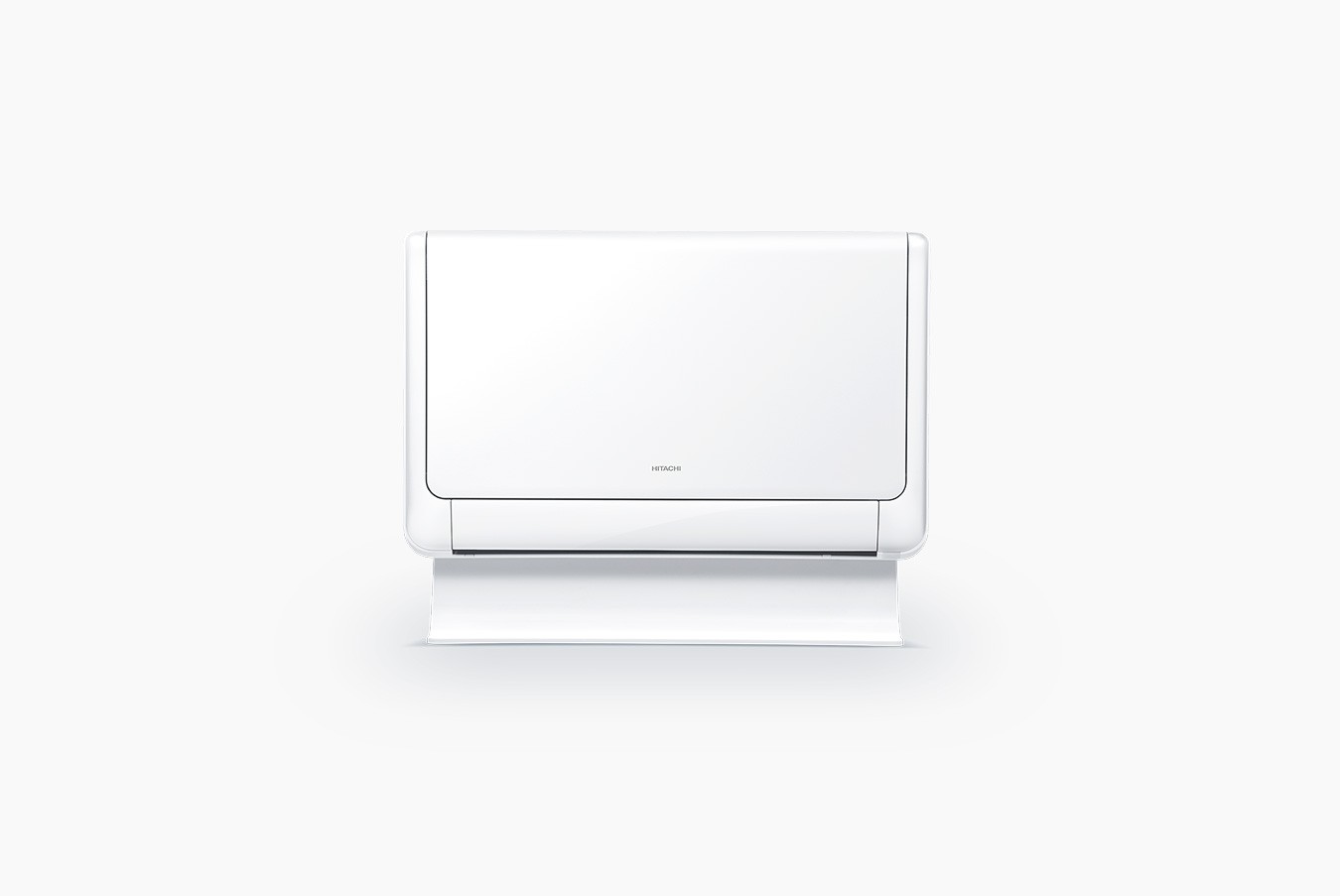

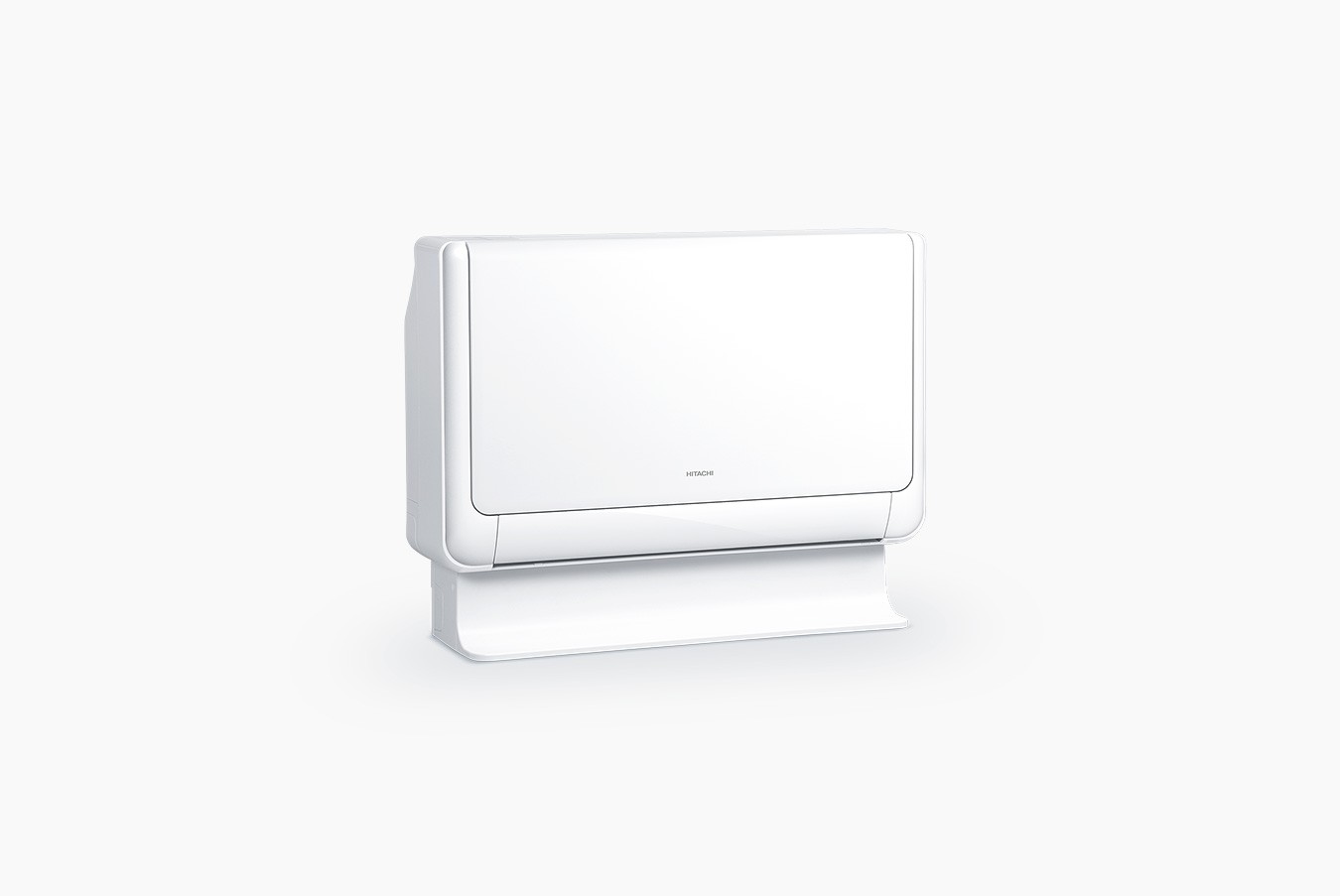

– SHIROKUMA RAF CONSOLE
– SHIROKUMA RAF CONSOLE
It’s got the whole room covered
– Comfort in every corner
The louvre distributes air quickly and evenly to every corner of the room. Once it reaches the perfect temperature Eco Mode takes over, keeping you comfortable without wasting energy.
– High performance
– Low cost heating
When it’s cooler outside, the heat pump system delivers low cost heating with minimal maintenance. In modern homes and flats it can even replace traditional heating systems.
– Individual preferences

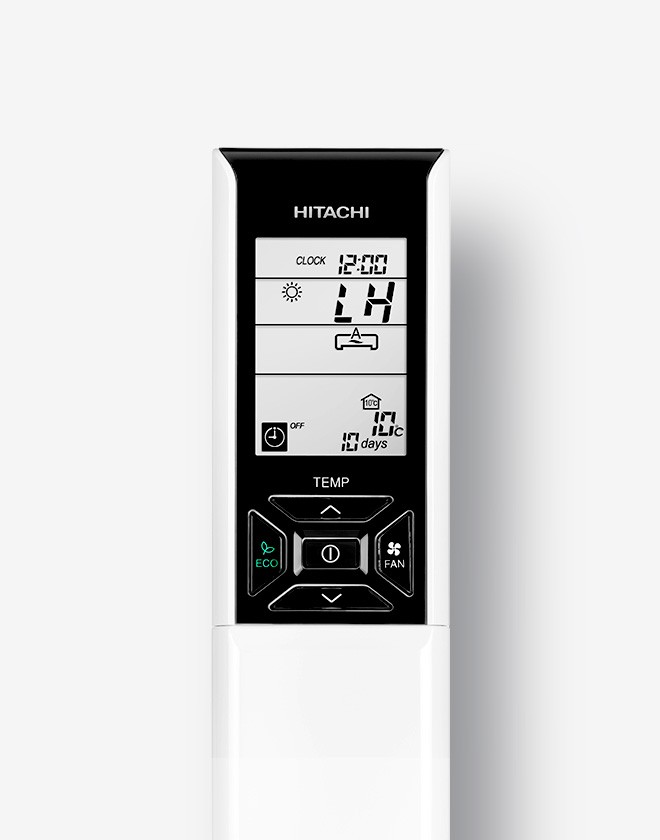

The Eco Control lets you create multiple custom profiles to suit your exact preferences. You can also see your energy use in real time, and compare the data month on month.
– Control and peace of mind

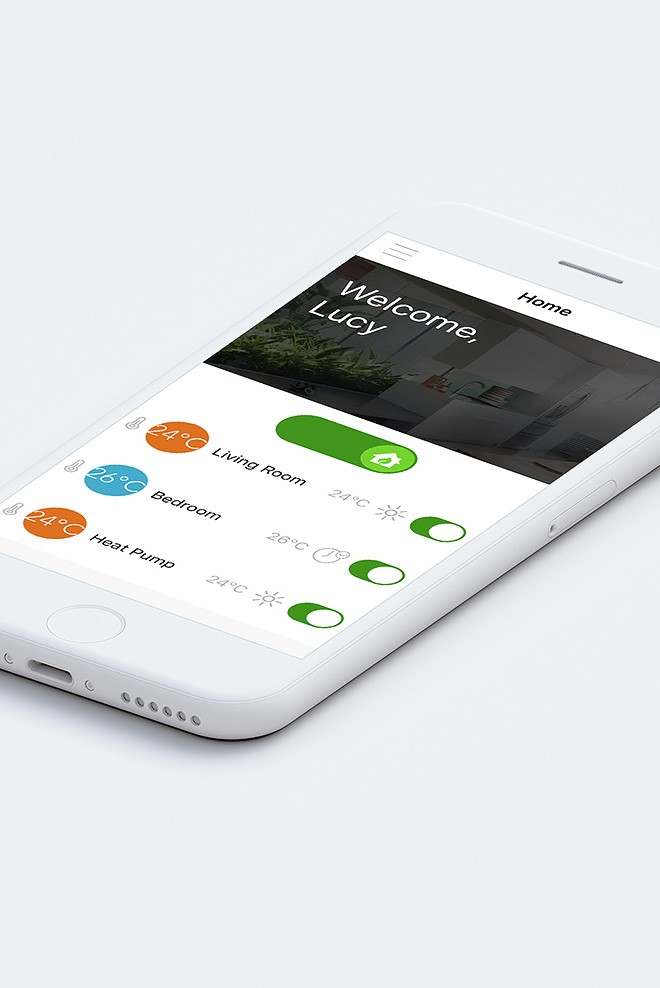

The Hi-Kumo app turns your smartphone into a programmable remote control. Use the app to turn units on or off, adjust the temperature and fan speed, and set custom schedules.
1/3
– Outdoor Units

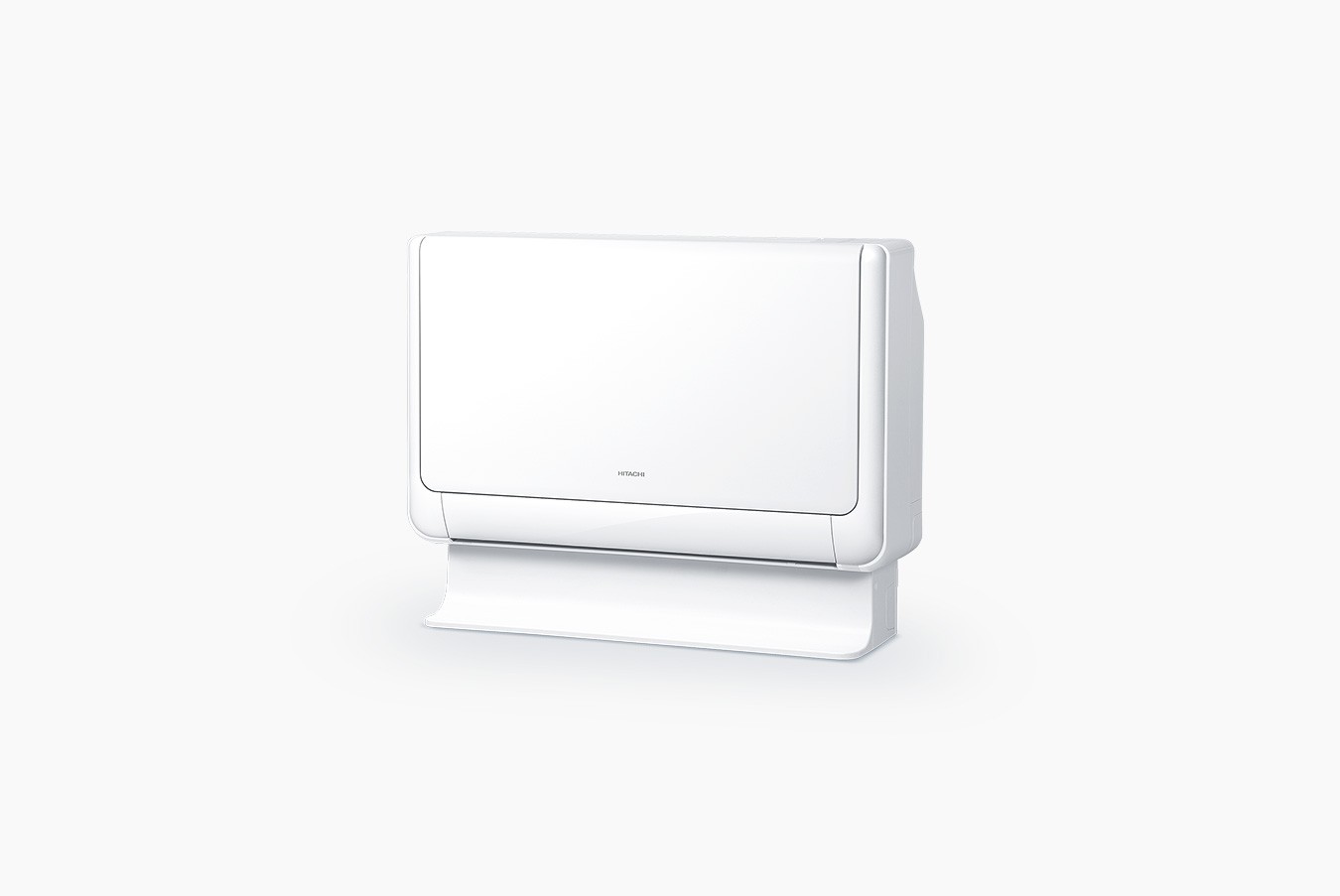

Floor Mounted Shirokuma
| RAF-25RXE | RAF-35RXE | RAF-50RXE |
|---|
| Nominal Capacity (min - max) | Cooling | KW |
| Heating | KW |
| Seasonal energy rating | Cooling | |
| Heating |
| SEER |
| SCOP |
| EER - COP (Cooling/heating energy label) |
| Sound Pressure (very low - low - med - high) | Cooling | dB(A) |
| Heating | dB(A) |
| Sound Power (Eurovent data) | dB(A) |
| Air flow (very low - low - med - high) | Cooling | m3/h |
| Heating | m3/h |
| Diameter of pipes (liquid-gas) | Inches |
| Condensate drain diameter | mm |
| Remote control (standard) |
| Programming |
| Dimensions | Height | mm |
| Width | mm | |
| Depth | mm |
| Weight | kg |
| 2,50 (0,90-3,10) |
| 3,40 (0,90-4,40) |
| A+++ |
| A++ |
| 8.50 |
| 4.60 |
| 4,65-4,50 (A/A) |
| 20-26-31-38 |
| 20-26-31-38 |
| 52 |
| 270-390-510-630 |
| 300-420-540-660 |
| 1/4 - 3/8 |
| 16 |
| Eco Control |
| 24h / 7 day |
| 590 |
| 750 |
| 215 |
| 15 |
| 3,50 (0,90-4,00) |
| 4,50 (0,90-5,00) |
| A++ |
| A++ |
| 8.20 |
| 4.60 |
| 3,75-3,90 (A/A) |
| 20-26-31-39 |
| 20-26-31-39 |
| 53 |
| 270-390-510-630 |
| 300-420-540-660 |
| 1/4 - 3/8 |
| 16 |
| Eco Control |
| 24h / 7 day |
| 590 |
| 750 |
| 215 |
| 15 |
| 5,00 (0,90-5,20) |
| 6,00 (0,90-8,10) |
| A++ |
| A+ |
| 6.80 |
| 4.30 |
| 3,60-3,80 (A/A) |
| 22-29-36-43 |
| 22-29-36-44 |
| 57 |
| 300-450-540-700 |
| 330-480-570-750 |
| 1/4 - 1/2 |
| 16 |
| Eco Control |
| 24h / 7 day |
| 590 |
| 750 |
| 215 |
| 15 |
Outdoor Units
| RAC-25FXE | RAC-35FXE | RAC-50FXE |
|---|
| Power feed |
| Power consumption (min - max) | Cooling | KW |
| Heating | KW |
| Sound Pressure | Cooling | dB(A) |
| Heating | dB(A) |
| Sound Power | dB(A) |
| Airflow | Cooling | m3/h |
| Heating | m3/h |
| Diameter of pipes (liquid-gas) | Inches |
| Maximum pipe length | m |
| Maximum piping elevation (between IDU & ODU) | m |
| Refrigerant charge / (Pre-charged length) | kg (m) |
| Refrigerant |
| Compressor |
| Dimensions | Height | mm |
| Width | mm | |
| Depth | mm |
| Weight | kg |
| 230V, 1Ph, 50Hz |
| 0,54 (0,25-1,00) |
| 0,76 (0,25-1,20) |
| 45 |
| 47 |
| 59 |
| 1860 |
| 1620 |
| 1/4 - 3/8 |
| 20 |
| 10 |
| 0,98 (20) |
| R32 |
| Rotary |
| 600 |
| 792 |
| 299 |
| 37 |
| 230V, 1Ph, 50Hz |
| 0,93 (0,25-1,38) |
| 1,15 (0,25-1,50) |
| 47 |
| 49 |
| 61 |
| 1920 |
| 1620 |
| 1/4 - 3/8 |
| 20 |
| 10 |
| 0,98 (20) |
| R32 |
| Rotary |
| 600 |
| 792 |
| 299 |
| 37 |
| 230V, 1Ph, 50Hz |
| 1,39 (0,50-2.10) |
| 1,58 (0,50-2,70) |
| 51 |
| 53 |
| 65 |
| 2160 |
| 2160 |
| 1/4 - 1/2 |
| 30 |
| 10 |
| 1,20 (30) |
| R32 |
| 2 Cylinder Rotary |
| 736 |
| 800 |
| 350 |
| 51 |
