– IVX Prime

VRF functionality and control for the price of a split

– Up to 4 rooms

Independent climate control for up to four spaces. Combine different unit types and kW ratings to achieve perfect comfort for each space.

1/4

– Wide range of indoor units and operating conditions

Available from 10 kW to 16 kW, IVX prime is the ideal solution for small to medium buildings. It provides optimal comfort all year round thanks to its high performance and maintaining its operation at extreme temperatures: down to -20°C in heating and from -5°C to 46°C in cooling mode.

– Low GWP R32 refrigerant for a greener more efficient solution

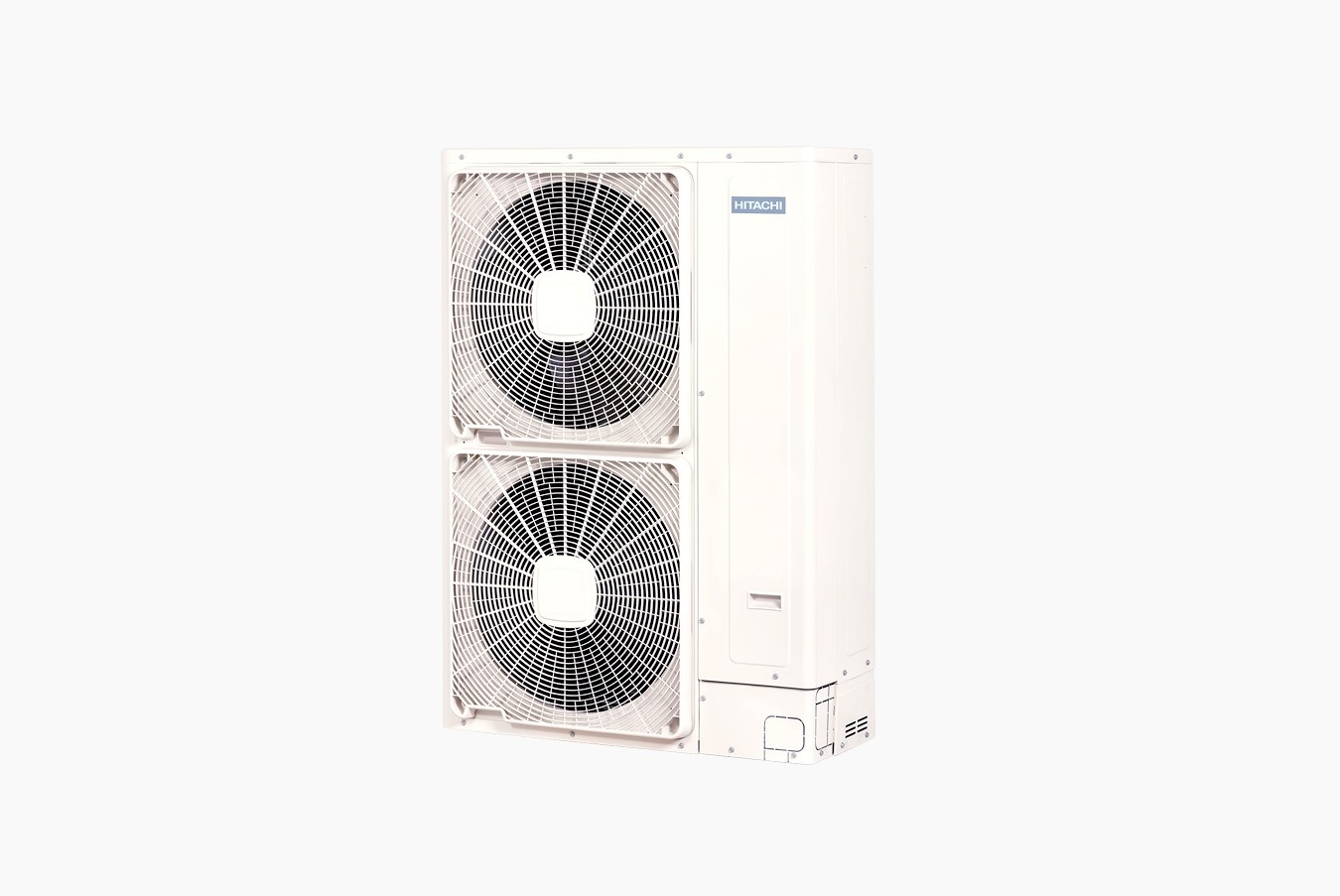

– OUTDOOR UNITS

OUTDOOR UNITS

RAS-2HVNP1	RAS-2.5 HVNP1	RAS-3HVNP1E	RAS-4HVNP1E	RAS-5HVNP1E	RAS-6HVNP1E	RAS-4HNP1E	RAS-5HNP1E	RAS-6HNP1E	RAS-8HNPE	RAS-10HNPE	RAS-12HNP

Power supply

Min-Max Number of Indoor Units

Connection Ratio

Nominal Capacity (min-max)	Cooling	kW
Nominal Capacity (min-max)	Heating	kW

Power consumption	Cooling	kW
Power consumption	Heating	kW

EER / COP

SEER / SCOP (energy labels)

Perceived noise level (night mode)

dB(A)

Air flow

m³/h

Diameter of pipes (liquid-gas)

Inches

Maximum length

Maximum elevation

Refrigerant charge (pre-charged pipe length)

kg(m)

Additional refrigerant charge

g/m

Refrigerant

Compressor

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight		Kg
Weight

* See Technical Catalogue for Restrictions

1 ~ 230 V 50H
1-2*
90-110%
5,00 (2,20 - 5,60)
5,60 (2,20 - 7,10)
1,24
1,20
4,03 / 4,68
6,49/4,67 (A++/A++)
44(42)
2436
(1/4) - (1/2)
50
30
1,6 (30*)
30
R410A
Scroll
600
792
300
43

1 ~ 230 V 50H
1-2*
90-110%
5,60 (2,20 - 6,30)
6,30 (2,20 - 8,00)
1,34
1,28
4,18 / 4,92
6,05/4,77 (A+/A++)
45(43)
2436
(1/4) - (1/2)
50
30
1,6 (30*)
30*
R410A
Scroll
600
792
300
43

1 ~ 230 V 50H
1-3*
50-120%
7,10 (3,20 - 8,00)
8,00 (3,50 - 10,60)
1,58
1,64
4,49 / 4,88
7,42/4,37 (A++/A+)
46(42)
2700
(3/8) - (5/8)
50
30
2,3 (30)
40
R410A
Rotary
800
950
370
66

1 ~ 230 V 50H
1-5*
50-120%
10,00 (4,50 - 11,20)
11,20 (5,00 - 14,00)
2,14
2,17
4,68 / 5,16
7,88/4,68 (A++/A++)
47(43)
4800
(3/8) - (5/8)
75
30
4,1 (30)
60
R410A
Scroll
1380
950
370
103

1 ~ 230 V 50H
1-6*
50-120%
12,50 (5,70 - 14,00)
14,00 (5,00 - 18,00)
3,28
3,08
3,81 / 4,55
8,46 / 5,18
48 (44)
5400
(3/8) - (5/8)
75
30
4,2 (30)
60
R410A
Scroll
1380
950
370
103

1 ~ 230 V 50H
1-6*
50-120%
14,00 (6,00 - 16,00)
16,00 (5,00 - 20,00)
4,12
3,78
3, 41 / 4,23
7,99 / 5,12
48(45)
6000
(3/8) - (5/8)
75
30
4,2 (30)
60
R410A
Scroll
1380
950
370
103

3N ~ 400V 50Hz
1-5*
50-120%
10,00 (4,50 -11,20)
11,20 (5,00 -14,00)
2,14
2,17
4,68 / 5,16
7,66 / 4,68 (A++/A++)
47 (43)
4800
(3/8) - (5/8)
75
30
4,1 (30)
60
R410A
Scroll
1380
950
370
103

3N ~ 400V 50Hz
1-6*
50-120%
12,50 (5,70-14,00)
14,00 (5,00-18,00)
3,28
3,01
3,81 / 4,55
8,38 / 5,18
48 (44)
5400
(3/8) - (5/8)
75
30
4,2 (30)
60
R410A
Scroll
1380
950
370
103

3N ~ 400V 50Hz
1-6*
50-120%
14,00 (6,00 -16,00)
16,00 (5,00 -20,00)
4,11
3,78
3,41 / 4,23
7,93 / 5,12
48 (45)
6000
(3/8) - (5/8)
75
30
4,2 (30)
60
R410A
Scroll
1380
950
370
103

3N ~ 400V 50Hz
1-8*
50-120%
20,00 ( 8,00 - 22,40)
22,40 ( 6,30 - 28,00)
5,62
5,32
3,56 / 4,21
7,18 / 4,60
57 (55)
7620
(3/8) - (1" 1/8)
100
30
5,7 (30)
See TC
R410A
Scroll
1380
950
370
136

3N ~ 400V 50Hz
1-8*
50-120%
25,00 (10,00 - 28,00)
28,00 ( 8,00 - 35,00)
8,14
7,29
3,07 / 3,84
6,95 / 4,37
58 (56)
8040
(1/2) - (1" 1/8)
100
30
6,2 (30)
See TC
R410A
Scroll
1380
950
370
138

3N ~ 400V 50Hz
1-8*
50-120%
30,00 (11,20 - 33,50)
33,50 (9,00 - 37,50)
11,32
9,20
2,65 / 3,64
6,23 / 4,02
59 (57)
9780
(1/2) - (1" 1/8)
100
30
6,7 (30)
See TC
R410A
Scroll
1650
1100
390
168

Open table

Download PDF

– SYSTEM FREE INDOOR UNITS

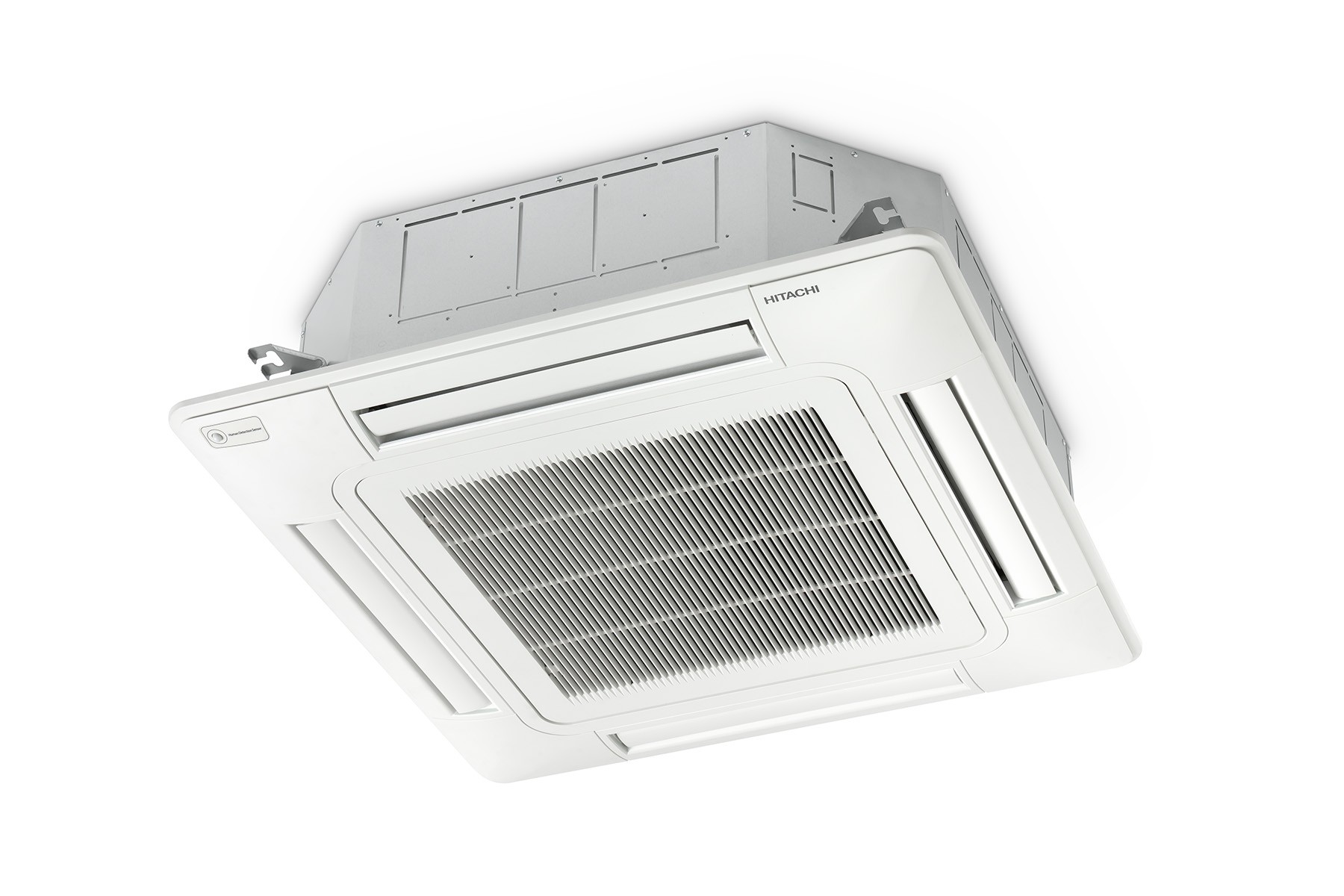

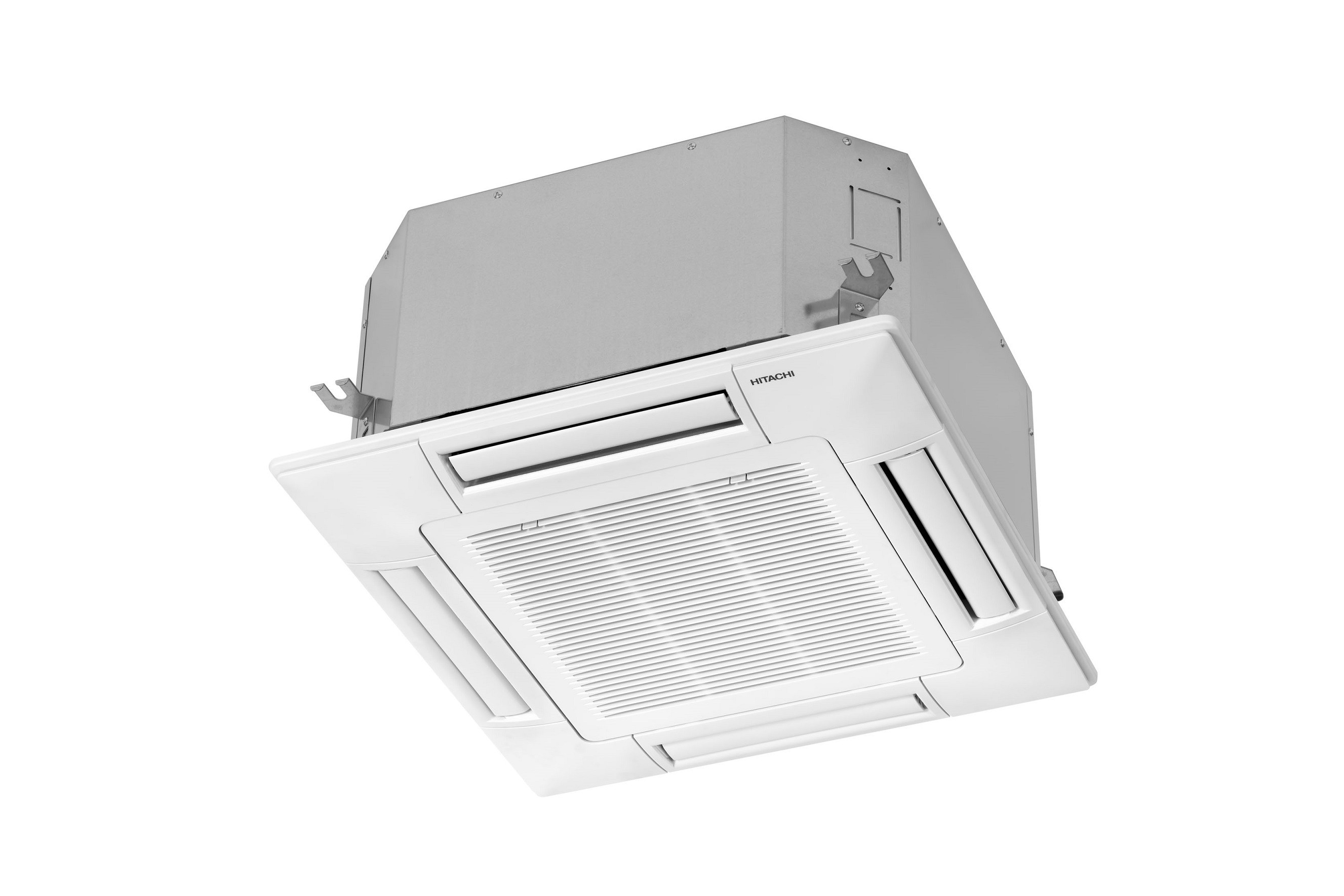

4 -way cassette - High Efficiency

RCI 1.0FSN4	RCI 1.5(1.3)FSN4	RCI 1.5FSN4	RCI 2.0(1.8)FSN4	RCI 2.0FSN4	RCI 2.5(2.3)FSN4	RCI 2.5FSN4	RCI 3.0FSN4	RCI 4.0FSN4	RCI 5.0FSN4	RCI 6.0FSN4

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high, ultra high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high-ultra high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Panel (width x depth - kg)

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

2.5
2.8
2.8
3.2
27 / 28 / 30 / 33
52
540 / 660 / 780 / 900
230 V - 1Ph - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
248
840
840
20

3.2
3.6
3.8
4.2
27 / 30 / 31 / 35
53
660 / 840 / 1020 / 1260
230 V - 1Ph - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
248
840
840
21

3.6
4
4
4.8
27 / 30 / 31 / 35
53
660 / 840 / 1020 / 1260
230 V - 1Ph - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
248
840
840
21

4.5
5
5.2
5.6
27 / 30 / 32 / 37
55
660 / 840 / 1020 / 1320
230 V - 1Ph - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
248
840
840
21

5
5.6
5.6
6.3
27 / 30 / 32 / 37
55
660 / 840 / 1020 / 1320
230 V - 1Ph - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
248
840
840
21

5.3
6
6.7
7.5
28 / 32 / 36 / 42
56
840 / 1080 / 1380 / 1620
230 V - 1Ph - 50Hz
3/8 / 5/8
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
248
840
840
22

5.6
6.3
7.1
8.5
28 / 32 / 36 / 42
56
840 / 1080 / 1380 / 1620
230 V - 1Ph - 50Hz
3/8 / 5/8
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
248
840
840
22

7.1
8
8
9
28 / 32 / 36 / 42
57
840 / 1080 / 1380 / 1620
230 V - 1Ph - 50Hz
3/8 / 5/8
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
298
840
840
26

10
11.2
11.2
12.5
33 / 39 / 43 / 48
64
1200 / 1440 / 1860 / 2220
230 V - 1Ph - 50Hz
3/8 / 5/8
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
298
840
840
26

12.5
14
14
16
35 / 40 / 45 / 48
64
1260 / 1560 / 1980 / 2220
230 V - 1Ph - 50Hz
3/8 / 5/8
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
298
840
840
26

14
16
16
18
37 / 41 / 46 / 48
65
1320 / 1680 / 2100 / 2220
230 V - 1Ph - 50Hz
3/8 / 5/8
yes
φ32mm
PC-ARFPE
P-N32NA2 (950 x 950 - 6,5 kg)
298
840
840
26

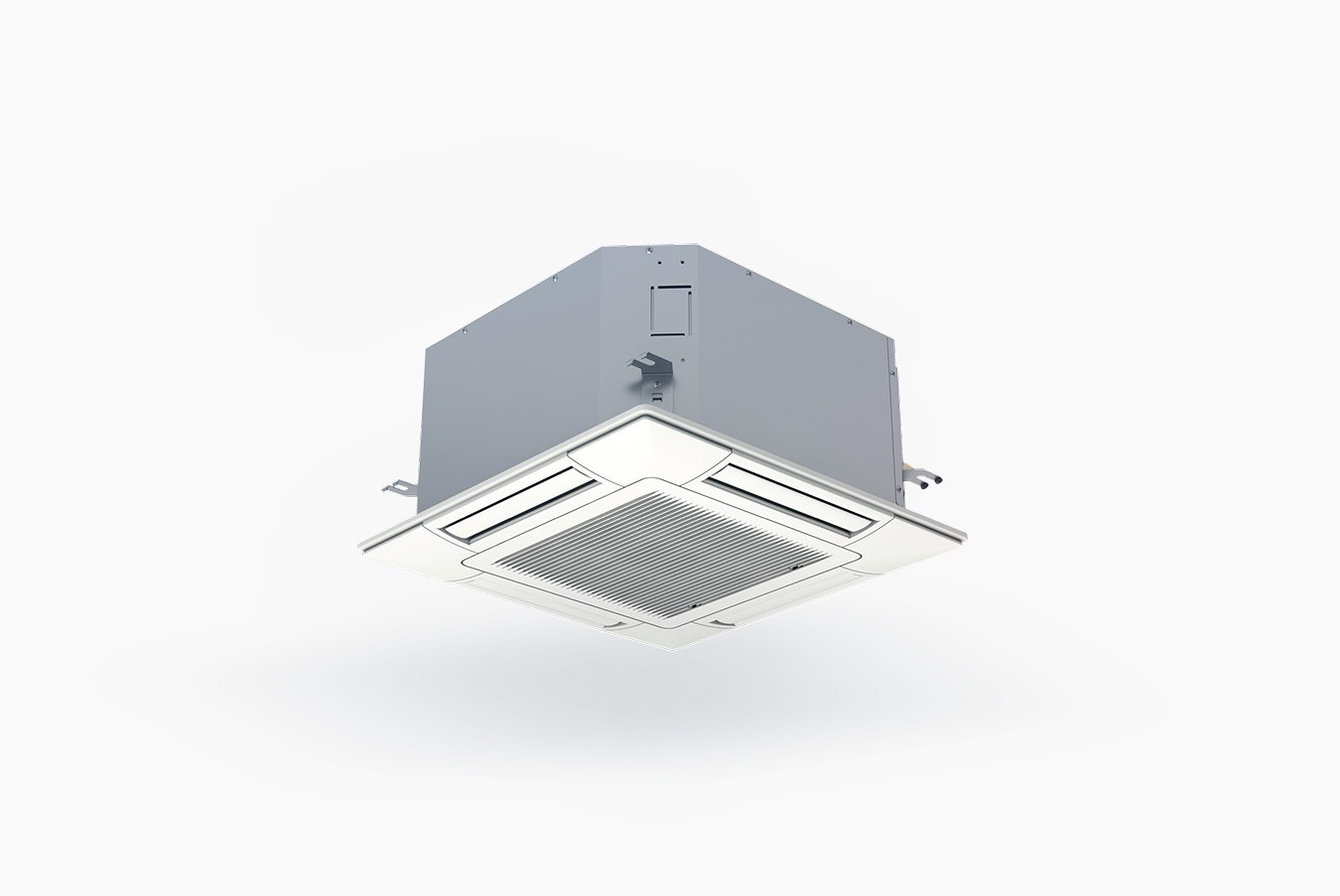

Mini 4 -way cassette

RCIM 0.4FSN4	RCIM 0.6FSN4	RCIM 0.8FSN4	RCIM 1.0FSN4	RCIM 1.5(1.3)FSN4	RCIM 1.5FSN4	RCIM 2.0(1.8)FSN4	RCIM 2.0FSN5	RCIM 2.5(2.3)FSN5	RCIM 2.5FSN5

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high, ultra high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high-ultra high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Panel (width x depth - kg)

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

-
-
1.1
1.3
28/32/34
43
360 / 414 / 468 / 510
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
16

-
-
1.7
1.9
24 / 28 / 30 / 34
47
360 / 480 / 570 / 660
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
16

2
2.2
2.2
2.5
24 / 29 / 33 / 36
50
360 / 480 / 570 / 660
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
16

2.5
2.8
2.8
3.2
24 / 30 / 34 / 38
51
360 / 510 / 600 / 720
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
16

3.2
3.6
3.8
4.2
27 / 33 / 37 / 41
54
420 / 570 / 660 / 780
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
16

3.6
4
4
4.8
27 / 33 / 37 / 41
54
420 / 570 / 660 / 780
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
16

4.5
5
5.2
5.6
31 / 35 / 39 / 45
56
480 / 600 / 720 / 900
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
17

5
5.6
5.6
6.3
31 / 35 / 39 / 45
56
480 / 600 / 720 / 900
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
17

5.3
6
6.7
7.5
35 / 39 / 43 / 47
60
600 / 720 / 840 / 960
230 V - 1h - 50Hz
1/4 / 1/2
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
17

5.6
6.3
7.1
8.5
35 / 39 / 43 / 47
60
600 / 720 / 840 / 960
230 V - 1h - 50Hz
3/8 / 5/8
yes
φ32mm
PC-ARFPE
P-AP56NAM (620 x 620 - 2,5 kg)
285
570
570
17

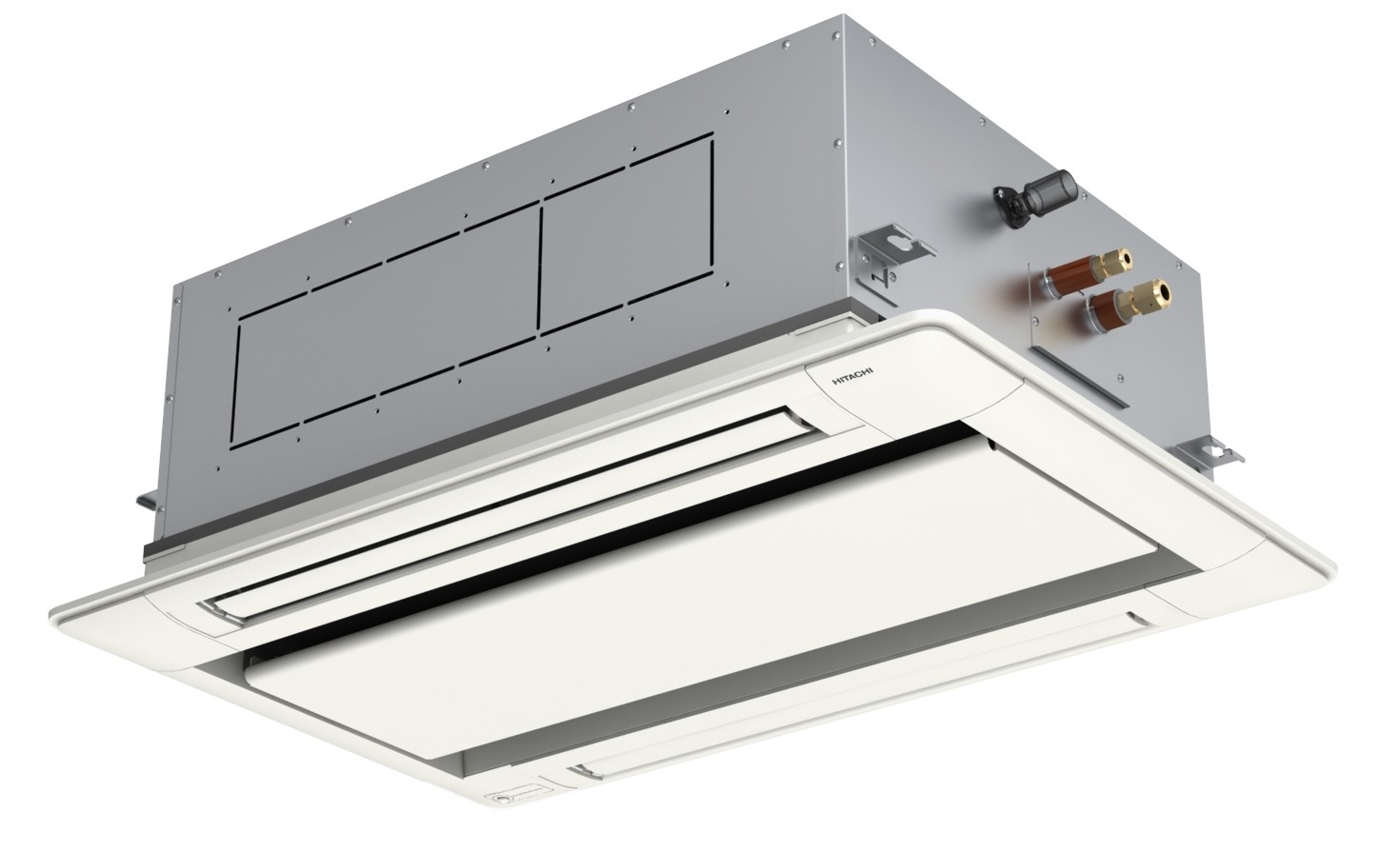

2 -way cassette

RCD-0,8FSN3	RCD-1FSN3	RCD-1.3FSN3	RCD-1.5FSN3	RCD-1.8FSN3	RCD-2FSN3	RCD-2.3FSN3	RCD-2.5FSN3	RCD-3FSN3	RCD-4FSN3	RCD-5FSN3	RCD-6FSN3

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high, ultra high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high-ultra high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Panel (width x depth - kg)

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

2
2.2
2.2
2.5
27 / 28 / 29 / 30
44
390/450/540/600
230 V - 1h - 50Hz
1/4 -1/2
yes
φ32mm
PC-ARFPE
P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
23

2.5
2.8
2.8
3.2
27 / 28 / 29 / 31
46
390/450/570/600
230 V - 1h - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
23

3
3.4
3.8
4.2
30 / 31 / 34 / 37
49
600/690/780/900

1/4 - 1/2
yes
φ32mm

P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
25

3.6
4
4
4.8
30 / 31 / 34 / 37
49
600/690/780/900
230 V - 1h - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
25

4.4
5
5.2
5.6
30 / 33 / 36 / 39
51
630/750/870/990

1/4 - 1/2
yes
φ32mm

P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
25

5
5.6
5.6
6.3
30 / 33 / 36 / 39
51
630/750/870/990
230 V - 1h - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
25

5.3
6
6.7
7.5
33 / 36 / 39 / 42
52
750/870/990/1110

3/8 - 5/8
yes
φ32mm

P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
25

5.6
6.3
7.1
8.5
33 / 36 / 39 / 42
52
750/870/990/1110
230 V - 1h - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
25

7.1
8
8
9
33 / 38 / 42 / 45
55
750 / 960 / 1110 / 1260
230 V - 1h - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
P-AP90DNA (1100 x 710 - 7,5 kg)
345
860
630
25

10
11.2
11.2
12.5
34 / 37 / 40 / 43
55
1200 / 1380 / 1590 / 1800
230 V - 1h - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
P-AP160DNA (1660 x 710 - 10,50)
345
1420
630
39

12.5
14
14
16
35 / 41 / 44 / 47
55
1260 / 1620 / 1860 / 2100
230 V - 1h - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
P-AP160DNA (1660 x 710 - 10,50)
345
1420
630
39

14
16
16
18
39 / 42 / 45 / 48
59
1440 / 1710 / 1950 / 2220
230 V - 1h - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
P-AP160DNA (1660 x 710 - 10,50)
345
1420
630
39

Open table

Download PDF

Slim Ducted

RPIM 0.6FSN4E-(DU)	RPIM 0.8FSN4E-(DU)	RPIM 1.0FSN4E-(DU)	RPIM 1.5(1.3)FSN4E-(DU)	RPIM 1.5FSN4E-(DU)

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump (DU model only)

Condensate drain diameter

Wired remote control

Static Pressure nom. (min-max)

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

-
-
1.7
1.9
25 / 28 / 28
49
330 / 372 / 420
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ25mm
PC-ARFPE
20 (0~35)
275
702
600
26

2
2.2
2.2
2.5
27 / 29 / 29
50
330 / 408 / 480
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ25mm
PC-ARFPE
32 (0~50)
275
702
600
26

2.5
2.8
2.8
3.2
27 / 29 / 29
50
330 / 408 / 480
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ25mm
PC-ARFPE
32 (0~50)
275
702
600
26

3.2
3.6
3.8
4.2
28 / 30 / 30
51
480 / 540 / 600
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ25mm
PC-ARFPE
27 (0 - 58)
275
702
600
26

3.6
4
4
4.8
28 / 30 / 30
51
480 / 540 / 600
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ25mm
PC-ARFPE
27 (0 - 58)
275
702
600
26

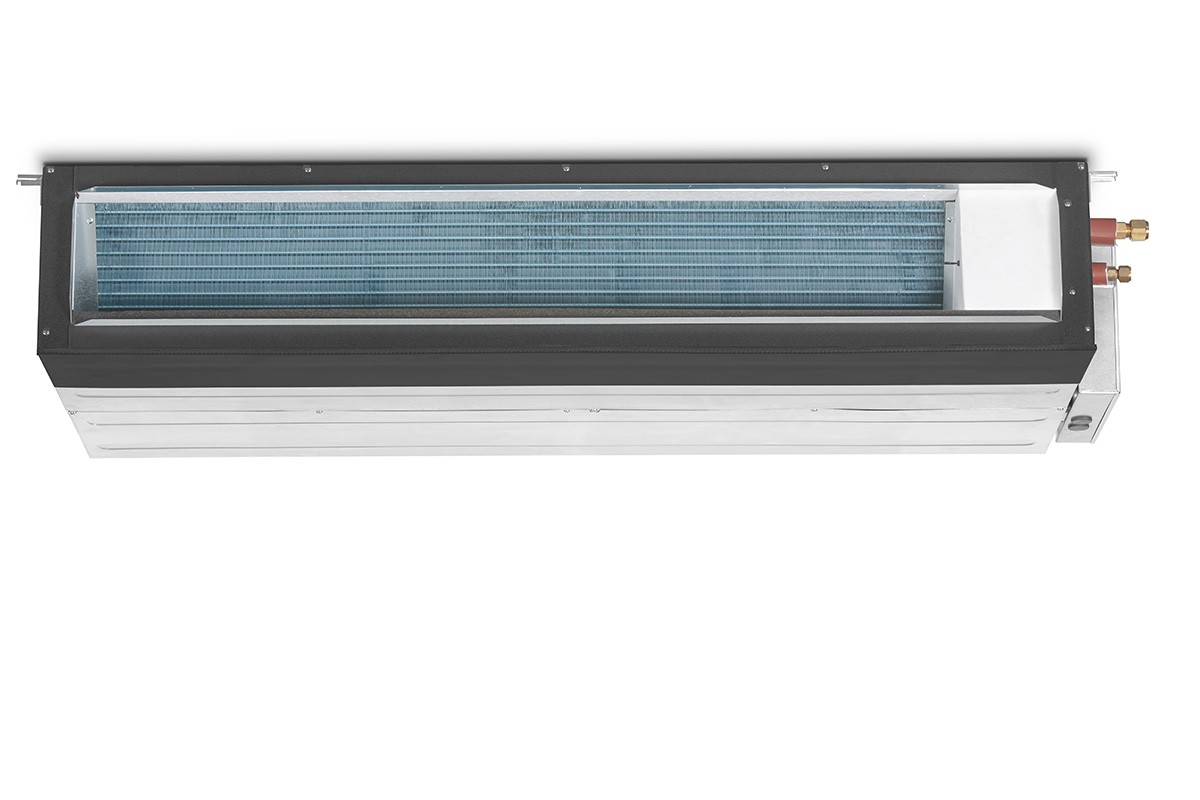

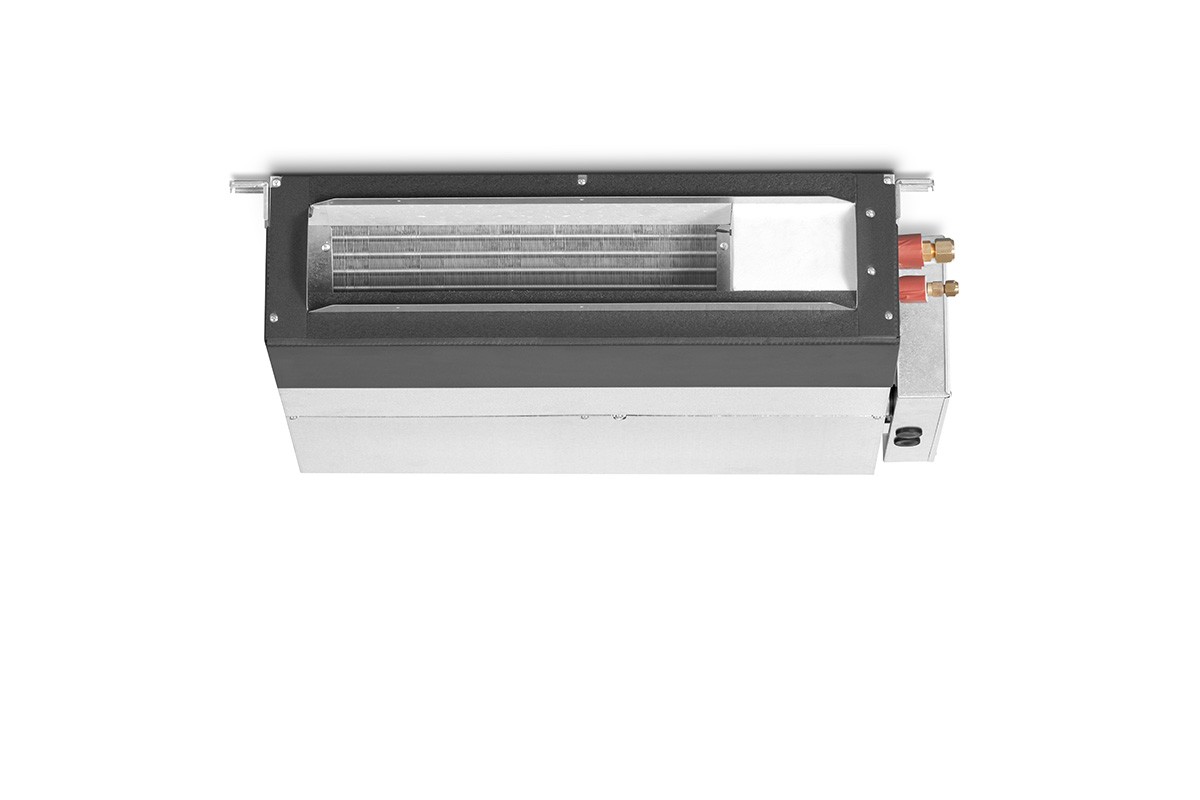

Ducted - Low Height

RPI 0.4FSN4E	RPI 0.6FSN4E	RPI 0.8FSN4E	RPI 1.0FSN4E	RPI 1.5(1.3)FSN4E	RPI 1.5FSN4E

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Static Pressure nom. (min-max)

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

-
-
1.1
1.3
27/29/31
50
336 / 354 / 384
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
25 (0~30)
197
700
600
18

-
-
1.7
1.9
27 / 30 / 32
50
330 / 372 / 420
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
20 (0~30)
197
1084
600
29

2
2.2
2.2
2.5
29 / 31 / 33
52
378 / 432 / 480
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
32 (0~50)
197
1084
600
29

2.5
2.8
2.8
3.2
29 / 31 / 33
52
378 / 432 / 480
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
32 (0~50)
197
1084
600
29

3.2
3.6
3.8
4.2
29 / 31 / 34
53
480 / 540 / 600
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
27 (0~50)
197
1084
600
30

3.6
4
4
4.8
29 / 31 / 34
53
480 / 540 / 600
230 V - 1Ph - 50Hz
1/4 - 1/2
yes
φ32mm
PC-ARFPE
27 (0~50)
197
1084
600
30

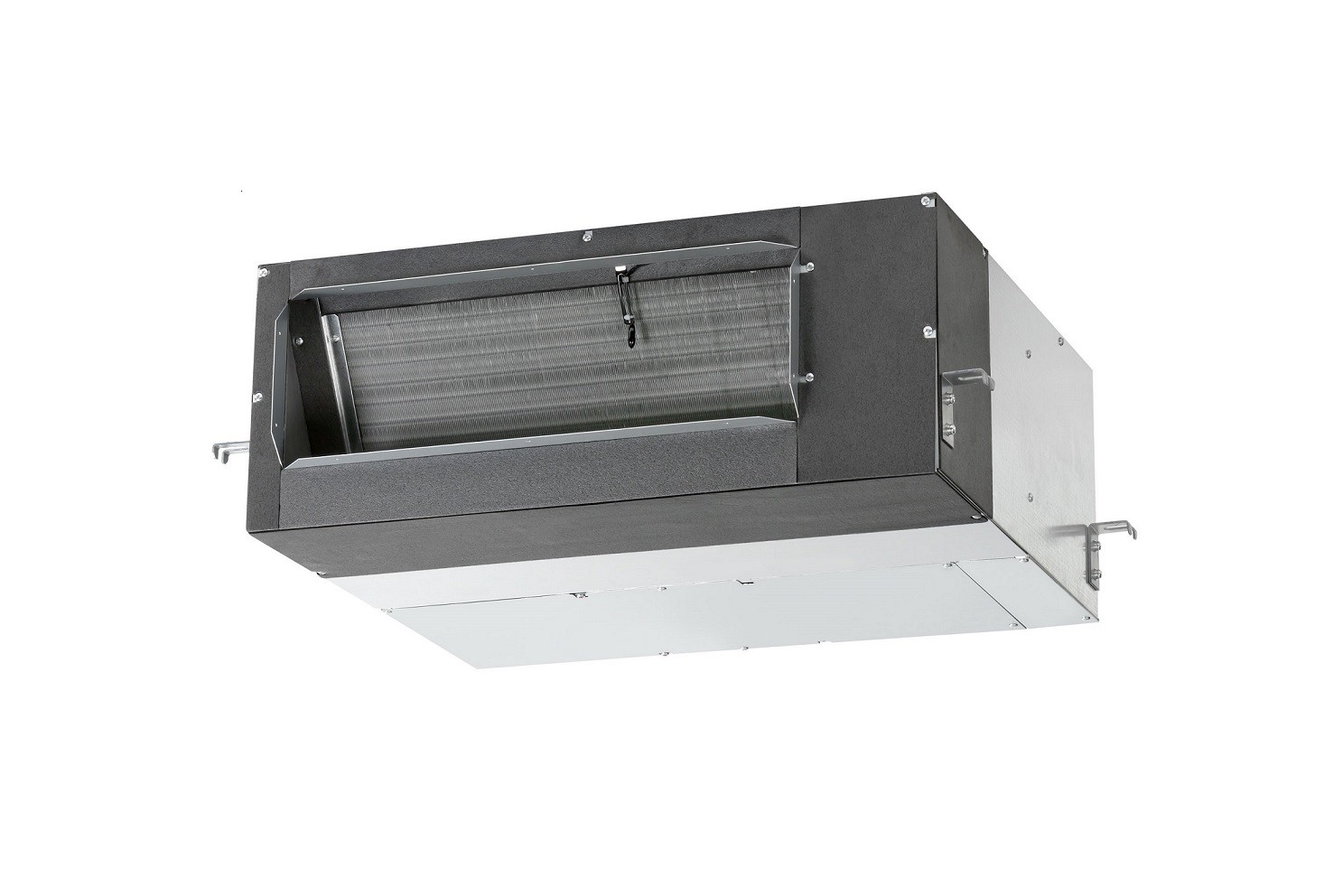

Medium Static Ducts

RPI 2.0(1.8)FSN4E	RPI 2.0FSN4E	RPI 2.5(2.3)FSN4E	RPI 2.5FSN4E	RPI 3.0FSN4E	RPI 4.0FSN4E	RPI 5.0FSN4E	RPI 6.0FSN4E

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Static Pressure nom. (min-max)

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

4.5
5
5.2
5.6
27 / 29 / 29
55
600 / 750 / 960
230 V - 1Ph - 50Hz
1/4 - 5/8
yes
φ32mm
PC-ARFPE
30 (0 - 120)
275
1084
600
35

5
5.6
5.6
6.3
27 / 29 / 29
55
600 / 750 / 960
230 V - 1Ph - 50Hz
1/4 - 5/8
yes
φ32mm
PC-ARFPE
30 (0 - 120)
275
1084
600
35

5.3
6
6.7
7.5
28 / 30 /30
56
780 / 960 / 1140
230 V - 1Ph - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
30 (0 - 125)
275
1084
600
36

5.6
6.3
7.1
8.5
28 / 30 / 30
56
780 / 960 / 1140
230 V - 1Ph - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
30 (0 - 125)
275
1084
600
36

7.1
8
8
9
29 / 31 / 31
57
960 / 1140 / 1320
230 V - 1Ph - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
30 (0 - 125)
275
1084
600
36

10
11.2
11.2
12.5
32 / 35 / 37
62
1500 / 1680 / 1800
230 V - 1Ph - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
45 (0 - 120)
275
1474
600
48

12.5
14
14
16
33 / 35 / 38
65
1740 / 1920 / 2100
230 V - 1Ph - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
50 (0 - 140)
275
1474
600
48

14
16
16
18
33 / 36 / 39
66
1800 / 1980 / 2160
230 V - 1Ph - 50Hz
3/8 - 5/8
yes
φ32mm
PC-ARFPE
50 (0 - 140)
275
1474
600
48

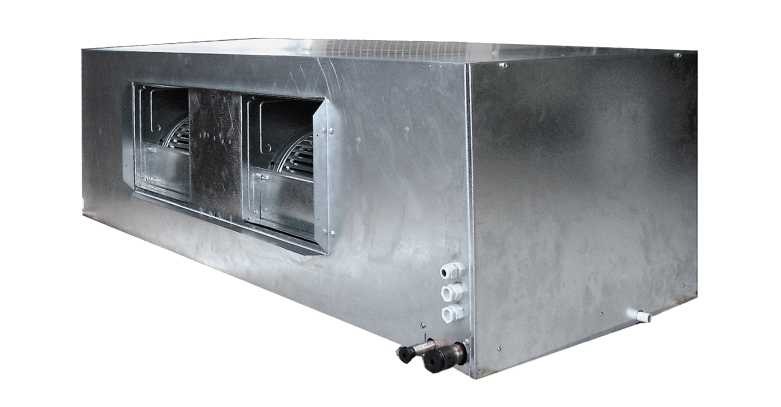

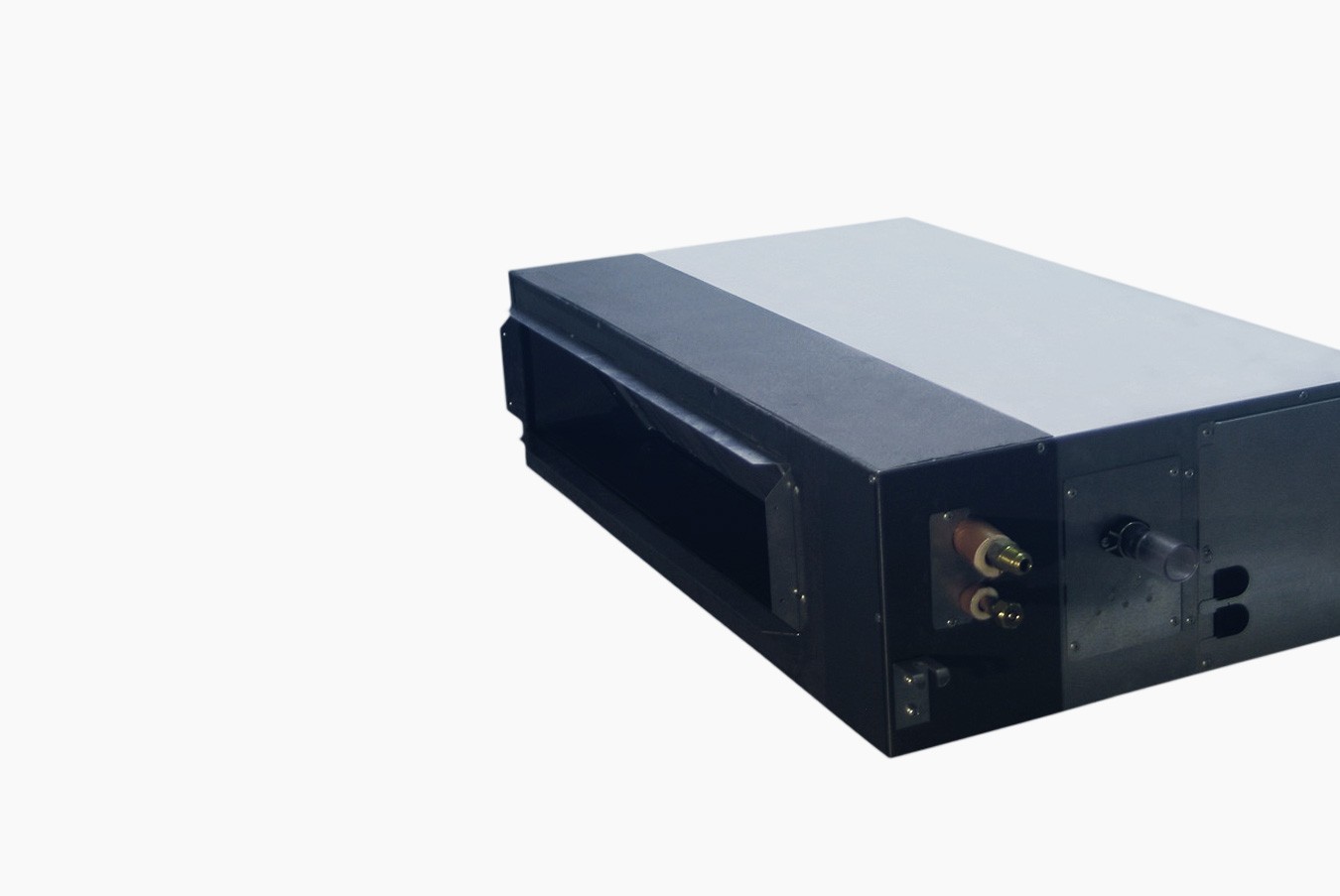

High Pressure Ducts

RPI 8.0FSN3E	RPI 10.0FSN3E	RPI 16.0FSN3PE	RPI 20.0FSN3PE

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Static Pressure (low, medium, high)

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

20
22.4
22.4
25
51 / 54 / 54
77
3600 / 3960 / 3960
230 V - 1Ph - 50Hz
3/8 - 3/4
no
φ25mm
PC-ARFPE
180 / 220 / 220
432
1592
600
85

25
28
28
31
52 / 55 / 55
78
4110 / 4500 / 4500
230 V - 1Ph - 50Hz
3/8 - 7/8
no
φ25mm
PC-ARFPE
180 / 220 / 220
432
1592
600
87

-
-
45
50
53 / 56
79
7200 / 7920
230 V - 1Ph - 50Hz
2 x 3/8 - 3/4
no
2 x φ25mm
PC-ARFPE
180 / 220
846
1592
600
171

-
-
56
63
54 / 57
80
8220 / 9000
230 V - 1Ph - 50Hz
2 x 3/8 - 7/8
no
2 x φ25mm
PC-ARFPE
180 / 220
846
1592
600
171

Open table

Download PDF

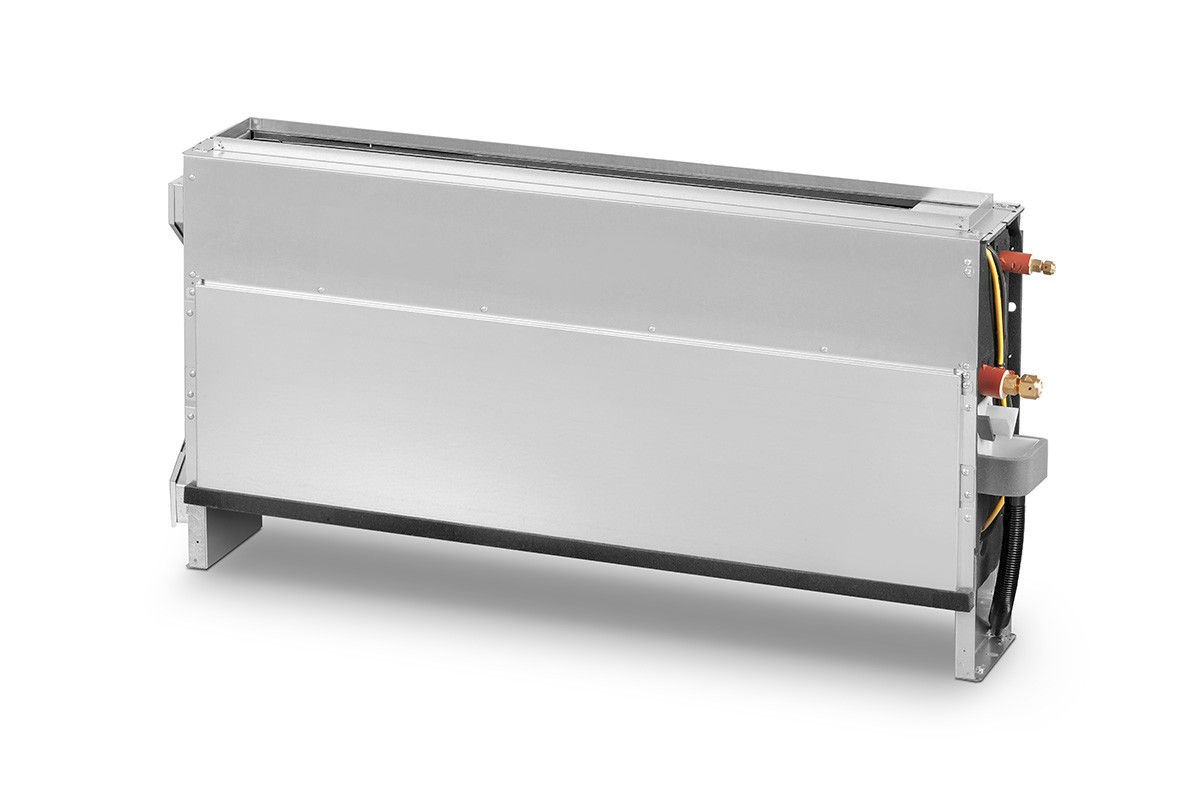

Floor Mounted - UnCased

RPFI 1.0 (0.8)FSN2E	RPFI 1.0FSN2E	RPFI 1.5(1.3)FSN2E	RPFI 1.5FSN2E	RPFI 2.0(1.8)FSN2E	RPFI 2.0FSN2E	RPFI 2.5(2.3)FSN2E	RPFI 2.5FSN2E

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

1.9
2.2
2.2
2.5
29 / 32 / 35
57
360 / 420 / 510
230 V - 1Ph - 50Hz
1/4 / 1/2
no
φ18.5mm
PC-ARFPE
620
848
220
19

2.5
2.8
2.8
3.2
29 / 32 / 35
57
360 / 420 / 510
230 V - 1Ph - 50Hz
1/4 / 1/2
no
φ18.5mm
PC-ARFPE
620
848
220
19

3
3.4
3.8
4.2
31 / 35 / 38
60
540 / 600 / 720
230 V - 1Ph - 50Hz
1/4 / 1/2
no
φ18.5mm
PC-ARFPE
620
973
220
23

3.6
4
4
4.8
31 /35 / 38
60
540 / 600 / 720
230 V - 1Ph - 50Hz
1/4 / 1/2
no
φ18.5mm
PC-ARFPE
620
973
220
23

4.4
5
5.2
5.6
32 / 36 / 39
60
660 / 840 / 960
230 V - 1Ph - 50Hz
1/4 / 5/8
no
φ18.5mm
PC-ARFPE
620
1223
220
27

5
5.6
5.6
6.3
32 / 36 / 39
60
660 / 840 / 960
230 V - 1Ph - 50Hz
1/4 / 5/8
no
φ18.5mm
PC-ARFPE
620
1223
220
27

5.3
6
6.7
7.5
34 / 38 / 42
60
660 / 840 / 960
230 V - 1Ph - 50Hz
3/8 / 5/8
no
φ18.5mm
PC-ARFPE
620
1223
220
28

5.6
6.3
7.1
8.5
34 / 38 / 42
60
660 / 840 / 960
230 V - 1Ph - 50Hz
3/8 / 5/8
no
φ18.5mm
PC-ARFPE
620
1223
220
28

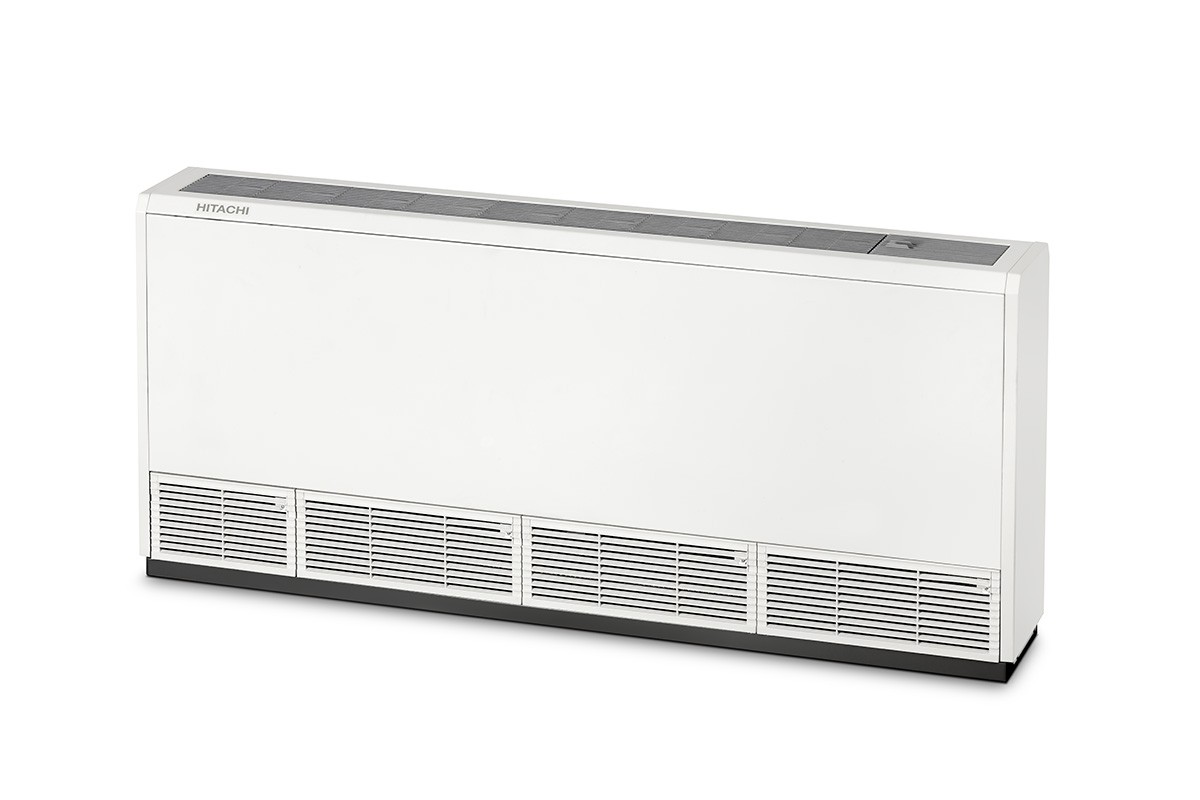

Floor Mounted - Cased

RPF 1.0 (0.8)FSN2E	RPF 1.0FSN2E	RPF 1.5 (1.3)FSN2E	RPF 1.5FSN2E	RPF 2.0(1.8)FSN2E	RPF 2.0FSN2E	RPF 2.5(2.3)FSN2E	RPF 2.5FSN2E

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

1.9
2.2
2.2
2.5
29 / 32 / 35
57
360 / 420 / 510
230 V - 1Ph - 50Hz
1/4 / 1/2
no
φ18.5mm
PC-ARFPE
630
1045
220
25

2.5
2.8
2.8
3.2
29 / 32 / 35
57
360 / 420 / 510
230 V - 1Ph - 50Hz
1/4 / 1/2
no
φ18.5mm
PC-ARFPE
630
1045
220
25

3
3.4
3.8
4.2
31 / 35 / 38
60
540 / 600 / 720
230 V - 1Ph - 50Hz
1/4 / 1/2
no
φ18.5mm
PC-ARFPE
630
1170
220
28

3.6
4
4
4.8
31 /35 / 38
60
540 / 600 / 720
230 V - 1Ph - 50Hz
1/4 / 1/2
no
φ18.5mm
PC-ARFPE
630
1170
220
28

4.4
5
5.2
5.6
32 / 36 / 39
60
660 / 840 / 960
230 V - 1Ph - 50Hz
1/4 / 5/8
no
φ18.5mm
PC-ARFPE
630
1420
220
33

5
5.6
5.6
6.3
32 / 36 / 39
60
660 / 840 / 960
230 V - 1Ph - 50Hz
1/4 / 5/8
no
φ18.5mm
PC-ARFPE
630
1420
220
33

5.3
6
6.7
7.5
34 / 38 / 42
60
660 / 840 / 960
230 V - 1Ph - 50Hz
3/8 / 5/8
no
φ18.5mm
PC-ARFPE
630
1420
220
34

5.6
6.3
7.1
8.5
34 / 38 / 42
60
660 / 840 / 960
230 V - 1Ph - 50Hz
3/8 / 5/8
no
φ18.5mm
PC-ARFPE
630
1420
220
34

Open table

Download PDF

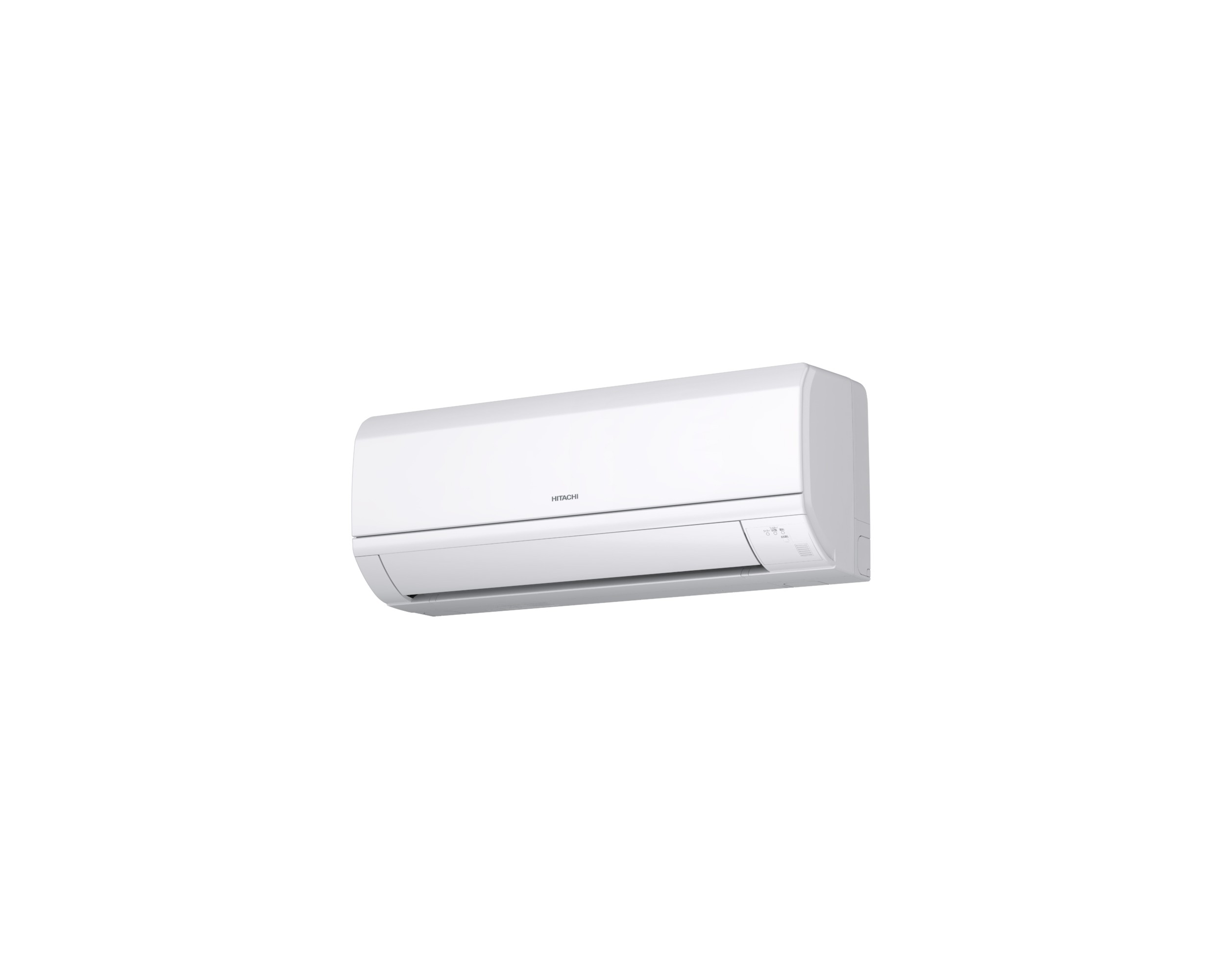

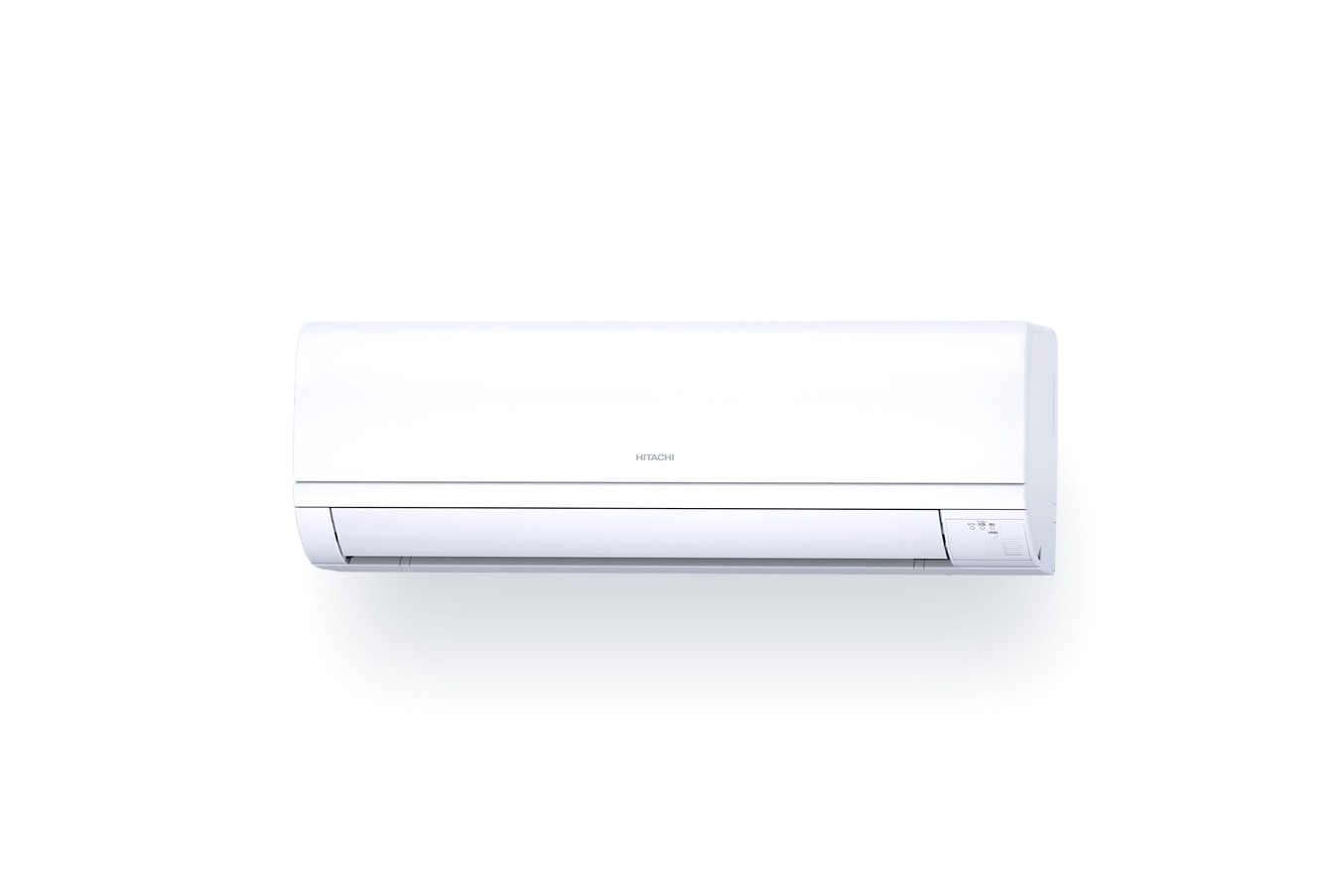

Wall Mounted

Wall Mounted

RPK 0.4FSN3M	RPK 0.6FSN(H)3M	RPK 0.8FSN(H)3M	RPK 1.0FSN(H)3M	RPK 1.5 (1.3)FSN(H)3M	RPK 1.5FSN3(H)M	RPK 2.0 (1.8)FSN3M	RPK 2.0FSN3M	RPK 2.5 (2.3)FSN3M	RPK 2.5FSN3M	RPK 3.0FSN3M	RPK 4.0FSN3M

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

-
-
1.1
1.3
29 / 30 / 31 / 32
49
360 / 402 / 438 / 450
230 V - 1Ph - 50Hz
1/4 - 1/2
no
φ20mm
PC-ARFPE
300
790
230
10

-
-
1.7
1.9
29 / 31 / 32 / 35
49
360 / 420 / 450 / 480
230 V - 1Ph - 50Hz
1/4 - 1/2
no
φ20mm
PC-ARFPE
300
790
230
10

2
2.2
2.2
2.5
30 / 32 / 35 / 39
53
390 / 420 / 480 / 600
230 V - 1Ph - 50Hz
1/4 - 1/2
no
φ20mm
PC-ARFPE
300
790
230
10

2.5
2.8
2.8
3.2
30 / 32 / 35 / 39
53
390 / 420 / 480 / 600
230 V - 1Ph - 50Hz
1/4 - 1/2
no
φ20mm
PC-ARFPE
300
790
230
10

3
3.4
3.8
4.2
33 / 36 / 40 / 46
58
450 / 540 / 660 / 840
230 V - 1Ph - 50Hz
1/4 - 1/2
no
φ20mm
PC-ARFPE
300
900
230
11

3.6
4
4
4.8
33/36/40/46
58
450/540/660/840
230 V - 1Ph - 50Hz
1/4 - 1/2
no
φ20mm
PC-ARFPE
300
900
230
11

4.4
5
5.2
5.6
33 / 38 / 40 / 42
57
600 / 780 / 840 / 900
230 V - 1Ph - 50Hz
1/4 - 5/8
no
φ20mm
PC-ARFPE
333
1150
245
17

5
5.6
5.6
6.3
33 / 38 / 40 / 42
57
600 / 780 / 840 / 900
230 V - 1Ph - 50Hz
1/4 - 5/8
no
φ20mm
PC-ARFPE
333
1150
245
17

5.3
6
6.7
7.5
36 / 40 / 43 / 49
59
720 / 840 / 1020 / 1140
230 V - 1Ph - 50Hz
3/8 - 5/8
no
φ20mm
PC-ARFPE
333
1150
245
18

5.6
6.3
7.1
8.5
36 / 40 / 43 / 49
59
720 / 840 / 1020 / 1140
230 V - 1Ph - 50Hz
3/8 - 5/8
no
φ20mm
PC-ARFPE
333
1150
245
18

7.1
8
8
9
36 / 40 / 43 / 49
59
720 / 840 / 1020 / 1140
230 V - 1Ph - 50Hz
3/8 - 5/8
no
φ20mm
PC-ARFPE
333
1150
245
18

10
11.2
11.2
12.5
41 / 46 / 49 / 51
64
900 / 1020 / 1140 / 1320
230 V - 1Ph - 50Hz
3/8 - 5/8
no
φ20mm
PC-ARFPE
333
1150
245
18

Open table

Download PDF

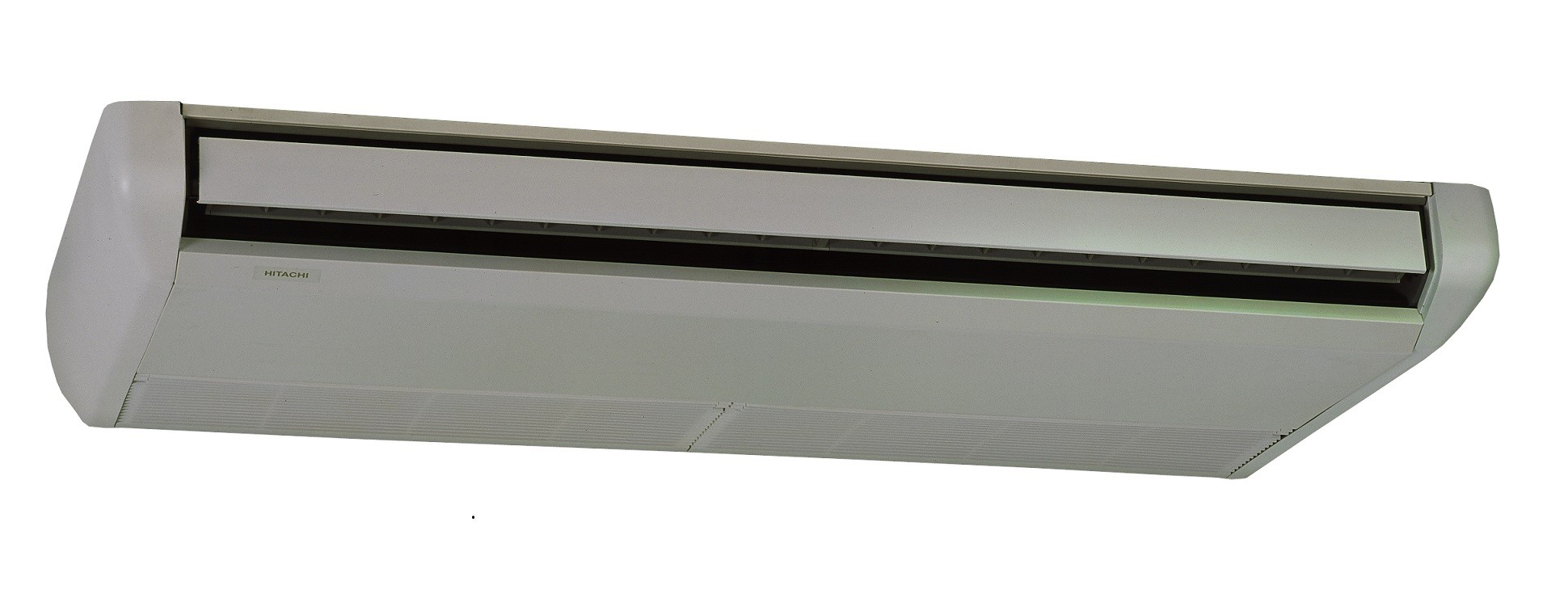

Ceiling Suspended - Hi Efficiency

Ceiling Suspended - Hi Efficiency

RPC 1.5(1.3)FSN3	RPC 1.5FSN3	RPC 2.0(1.8)FSN3	RPC 2.0FSN3	RPC 2.5(2.3)FSN3	RPC 2.5FSN3	RPC 3.0FSN3	RPC 4.0FSN3	RPC 5.0FSN3	RPC 6.0FSN3

Nominal Capacity (UTOPIA)	Cooling	kW
Nominal Capacity (UTOPIA)	Heating	kW

Nominal Capacity (SET FREE)	Cooling	kW
Nominal Capacity (SET FREE)	Heating	kW

Sound Pressure (low, medium, high, ultra high)

dB(A)

Sound Power

dB(A)

Air flow (low-medium-high-ultra high)

m3/h

Power feed

Diameter of pipes (liquid - gas)

Inches

Included Condensate Pump

Condensate drain diameter

Wired remote control

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

3.2
3.6
3.8
4.2
28 / 31 / 35 / 37
53
540 / 660 / 780 / 900
230 V - 1Ph - 50Hz
1/4 / 1/2
Option
φ25mm
PC-ARFPE
235
960
690
26

3.6
4
4
4.8
28 / 31 / 35 / 37
53
540 / 660 / 780 / 900
230 V - 1Ph - 50Hz
1/4 / 1/2
Option
φ25mm
PC-ARFPE
235
960
690
26

4.5
5
5.2
5.6
28 / 31 / 35 / 38
54
540 / 660 / 780 / 900
230 V - 1Ph - 50Hz
1/4 / 5/8
Option
φ25mm
PC-ARFPE
235
960
690
27

5
5.6
5.6
6.3
28 / 31 / 35 / 38
54
540 / 660 / 780 / 900
230 V - 1Ph - 50Hz
1/4 / 5/8
Option
φ25mm
PC-ARFPE
235
960
690
27

5.3
6
6.7
7.5
28 / 31 / 35 / 38
54
690 / 840 / 990 / 1140
230 V - 1Ph - 50Hz
3/8 / 5/8
Option
φ25mm
PC-ARFPE
235
1270
690
35

5.6
6.3
7.1
8.5
28 / 31 / 35 / 38
54
690 / 840 / 990 / 1140
230 V - 1Ph - 50Hz
3/8 / 5/8
Option
φ25mm
PC-ARFPE
235
1270
690
35

7.1
8
8
9
29 / 33 / 37 / 40
56
750 / 930 / 1110 / 1260
230 V - 1Ph - 50Hz
3/8 / 5/8
Option
φ25mm
PC-ARFPE
235
1270
690
35

10
11.2
11.2
12.5
32 / 37 / 42 / 44
60
1020 / 1320 / 1590 / 1800
230 V - 1Ph - 50Hz
3/8 / 5/8
Option
φ25mm
PC-ARFPE
235
1580
690
41

12.5
14
14
16
35 / 41 / 45 / 48
64
1200 / 1530 / 1860 / 2100
230 V - 1Ph - 50Hz
3/8 / 5/8
Option
φ25mm
PC-ARFPE
235
1580
690
41

14
16
16
18
36 / 42 / 47 / 49
65
1260 / 1620 / 1950 / 2220
230 V - 1Ph - 50Hz
3/8 / 5/8
Option
φ25mm
PC-ARFPE
235
1580
690
41

Open table

Download PDF

– Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.

Technical Catalogue - System Free Indoors

All downloads

– Where to buy

Learn more

– How can we help you?

If you need product or project advice, technical support, or have any other questions, we're here to help.

– OUTDOOR UNITS

OUTDOOR UNITS

RAS-2HVNP1	RAS-2.5 HVNP1	RAS-3HVNP1E	RAS-4HVNP1E	RAS-5HVNP1E	RAS-6HVNP1E	RAS-4HNP1E	RAS-5HNP1E	RAS-6HNP1E	RAS-8HNPE	RAS-10HNPE	RAS-12HNP

Power supply

Min-Max Number of Indoor Units

Connection Ratio

Nominal Capacity (min-max)	Cooling	kW
Nominal Capacity (min-max)	Heating	kW

Power consumption	Cooling	kW
Power consumption	Heating	kW

EER / COP

SEER / SCOP (energy labels)

Perceived noise level (night mode)

dB(A)

Air flow

m³/h

Diameter of pipes (liquid-gas)

Inches

Maximum length

Maximum elevation

Refrigerant charge (pre-charged pipe length)

kg(m)

Additional refrigerant charge

g/m

Refrigerant

Compressor

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight		Kg
Weight

* See Technical Catalogue for Restrictions

1 ~ 230 V 50H
1-2*
90-110%
5,00 (2,20 - 5,60)
5,60 (2,20 - 7,10)
1,24
1,20
4,03 / 4,68
6,49/4,67 (A++/A++)
44(42)
2436
(1/4) - (1/2)
50
30
1,6 (30*)
30
R410A
Scroll
600
792
300
43

1 ~ 230 V 50H
1-2*
90-110%
5,60 (2,20 - 6,30)
6,30 (2,20 - 8,00)
1,34
1,28
4,18 / 4,92
6,05/4,77 (A+/A++)
45(43)
2436
(1/4) - (1/2)
50
30
1,6 (30*)
30*
R410A
Scroll
600
792
300
43

1 ~ 230 V 50H
1-3*
50-120%
7,10 (3,20 - 8,00)
8,00 (3,50 - 10,60)
1,58
1,64
4,49 / 4,88
7,42/4,37 (A++/A+)
46(42)
2700
(3/8) - (5/8)
50
30
2,3 (30)
40
R410A
Rotary
800
950
370
66

1 ~ 230 V 50H
1-5*
50-120%
10,00 (4,50 - 11,20)
11,20 (5,00 - 14,00)
2,14
2,17
4,68 / 5,16
7,88/4,68 (A++/A++)
47(43)
4800
(3/8) - (5/8)
75
30
4,1 (30)
60
R410A
Scroll
1380
950
370
103

1 ~ 230 V 50H
1-6*
50-120%
12,50 (5,70 - 14,00)
14,00 (5,00 - 18,00)
3,28
3,08
3,81 / 4,55
8,46 / 5,18
48 (44)
5400
(3/8) - (5/8)
75
30
4,2 (30)
60
R410A
Scroll
1380
